308 Upgrade and Maintenance Manual TX100 S3
System board and components

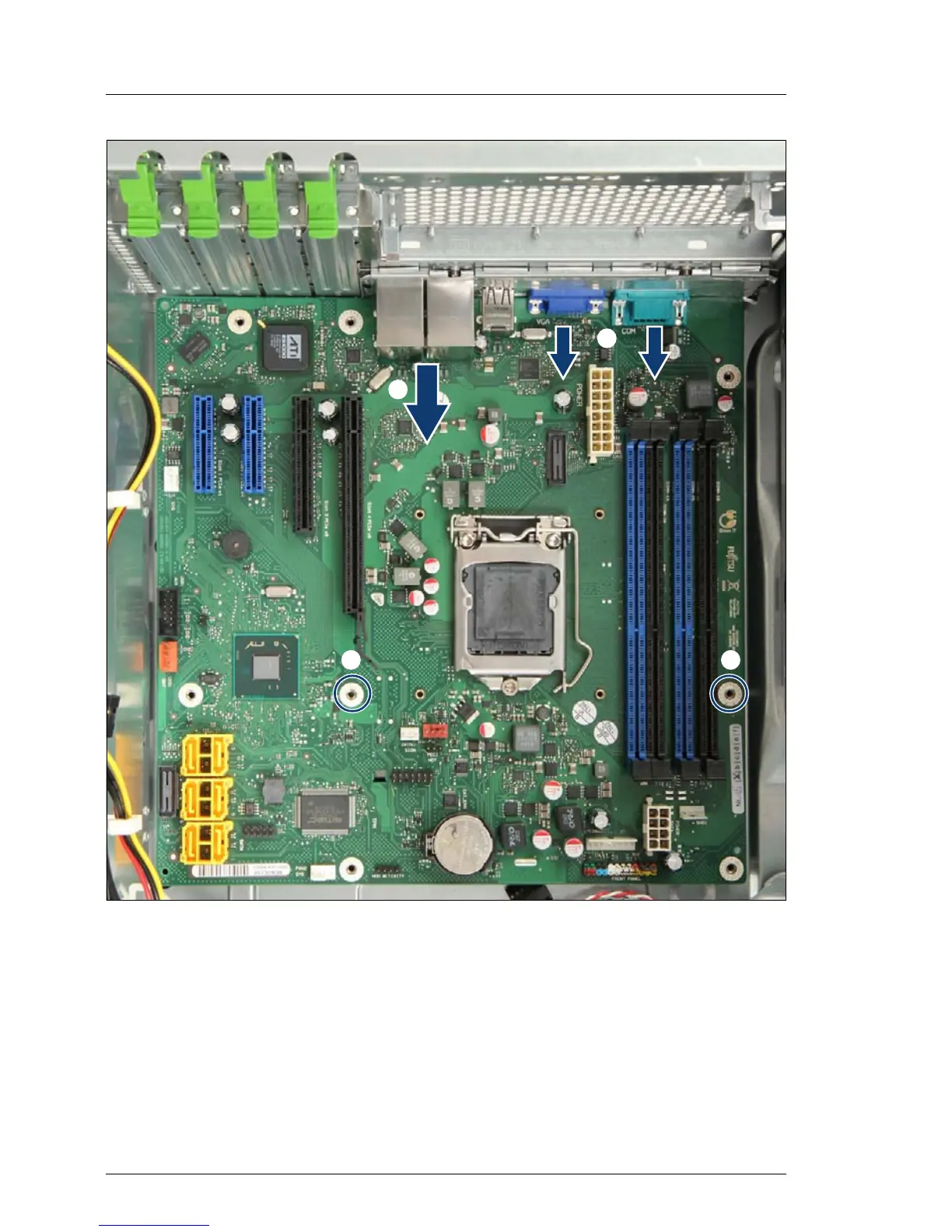

Figure 210: Detaching the system board (B)
Ê Slightly lift up the system board by the memory module ejectors and a PCI
slot (1) in order to detach it from the centering bolts (2).
Ê Carefully shift the system board towards the server front until the plug shells
disengage from the cut-outs in the connector panel (3).
/
