314 Upgrade and Maintenance Manual TX100 S3
System board and components

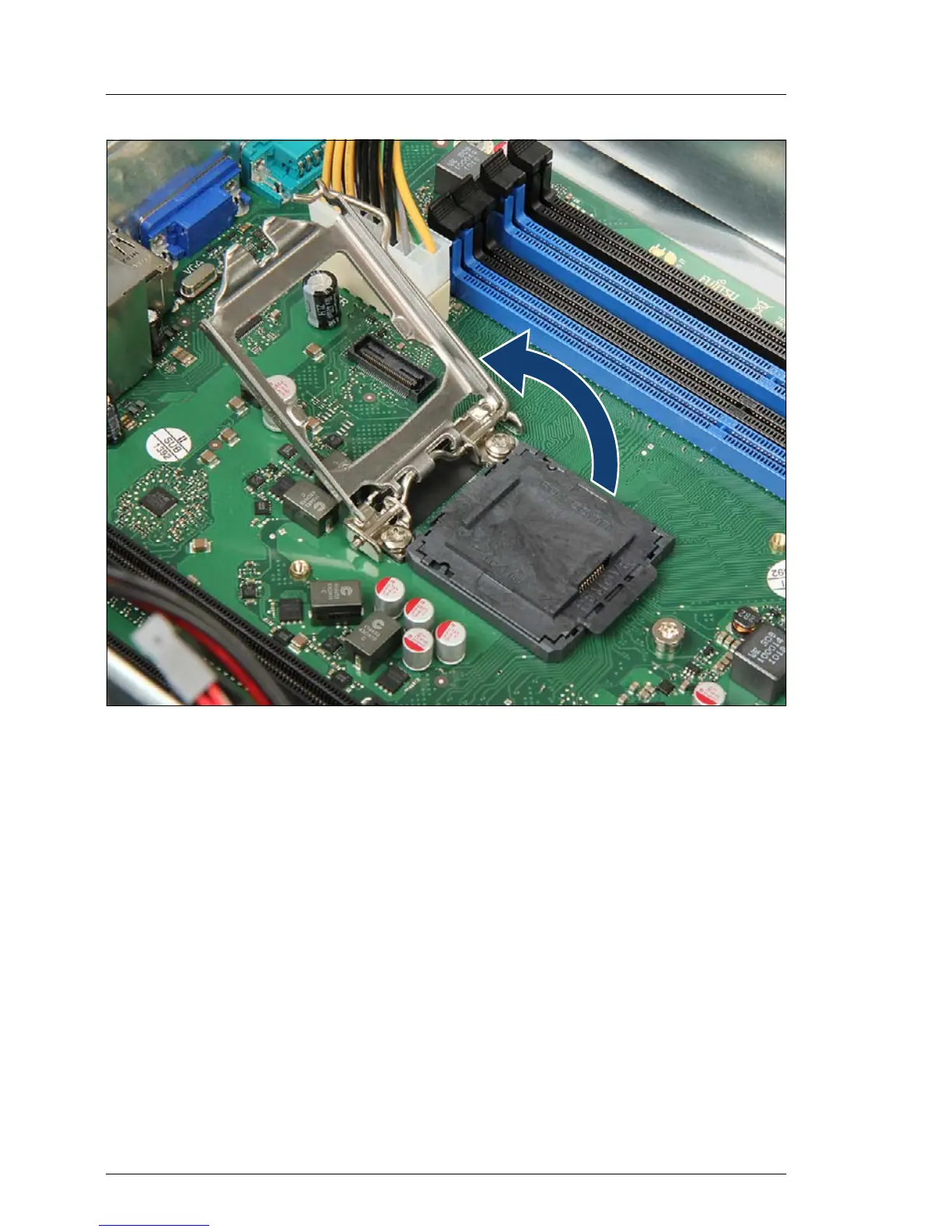

Figure 216: Opening the load plate (new system board)
Ê Rotate the socket lever to lift the load plate away from the socket.
Ê Make sure that the load plate is in the fully open position.
