Basic hardware procedures

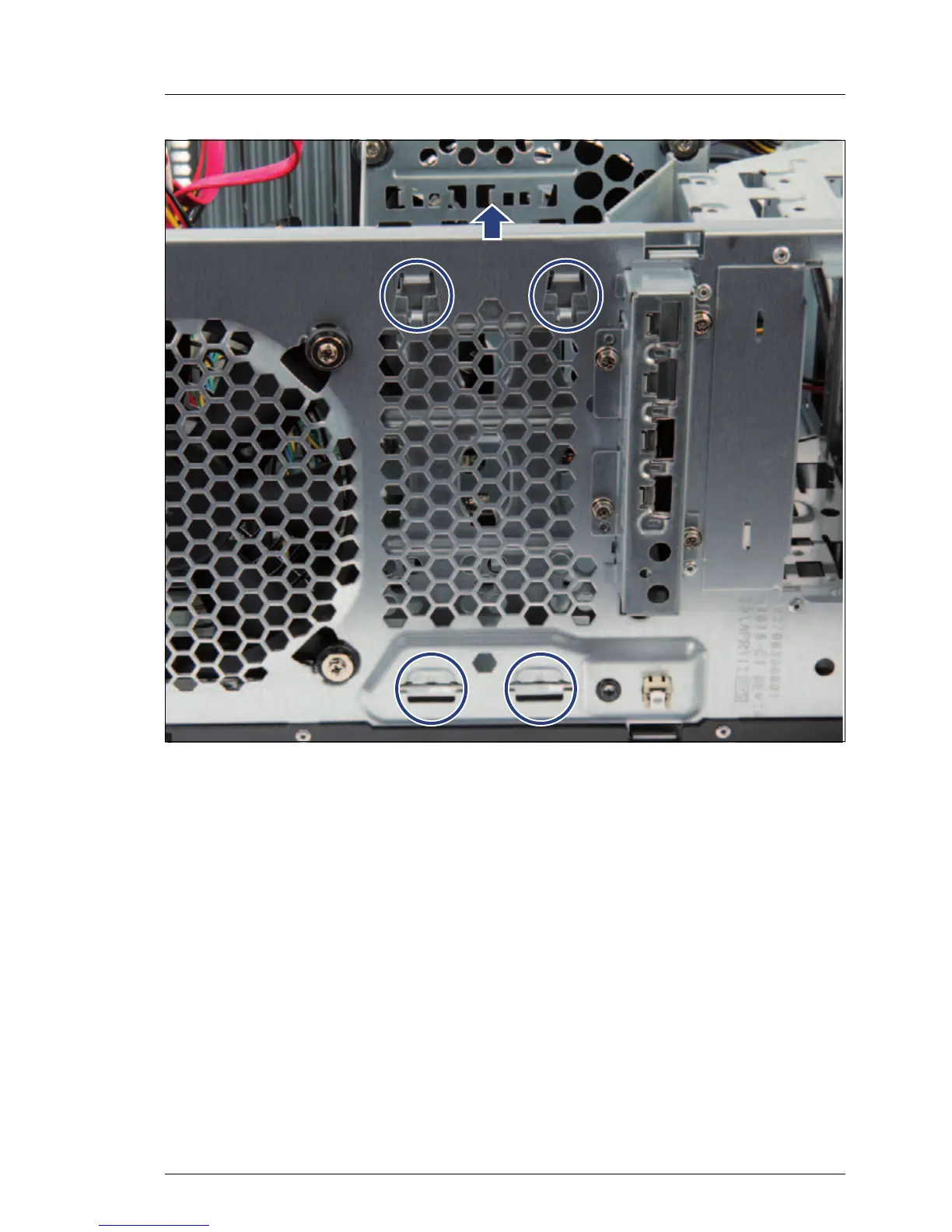

Figure 24: Recesses of the HDD cage
Ê Pull up the HDD cage until the upper hooks engage in the recesses (see
circles).
I This view is only visible, if the front cover is removed.
