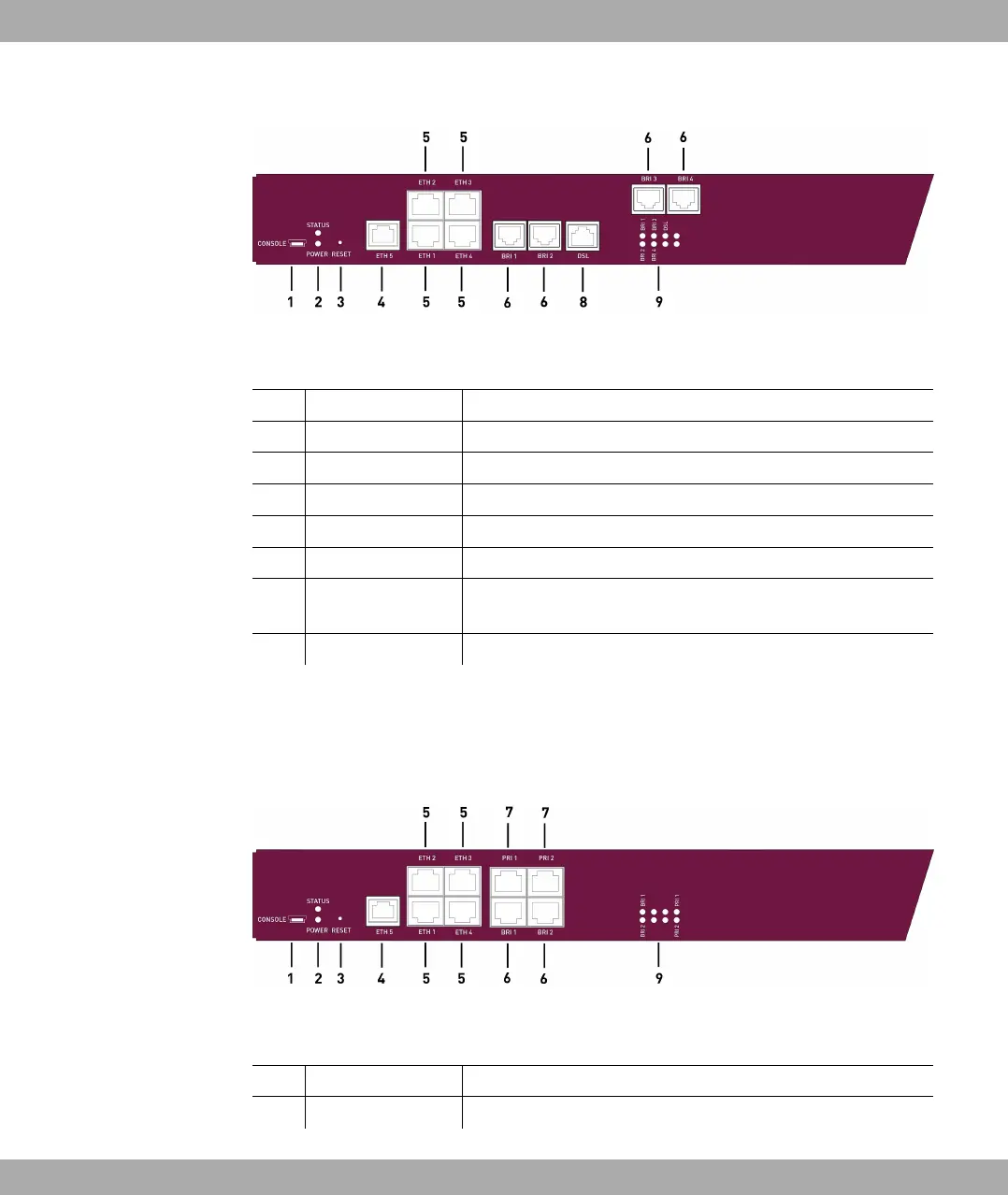

Fig. 8: Front of bintec RT3002
Front of bintec RT3002 , bintec RT3502
1 CONSOLE Serial interface
2 POWER / STATUS LED display for power and status
3 RESET Reset button
4 ETH5 Ethernet interface
5 ETH1 - ETH4 10/100/1000 Base-T Ethernet interface
6 BRI1 - BRI4 ISDN BRI interface
8 DSL DSL interface (ADSL2+ interface for bintec RT3002, VDSL2
interface for bintec RT3502)
9 LED LED display
bintec R4402 has a 4-port Ethernet switch, a serial interface, an ETH5 interface, two ISDN
BRI interfaces and two ISDN PRI interfaces.
The connections are arranged as follows:
Fig. 9: Front of bintec R4402
Front of bintec R4402
1 CONSOLE Serial interface
2 POWER / STATUS LED display for power and status
