61
Function
(Preparation)

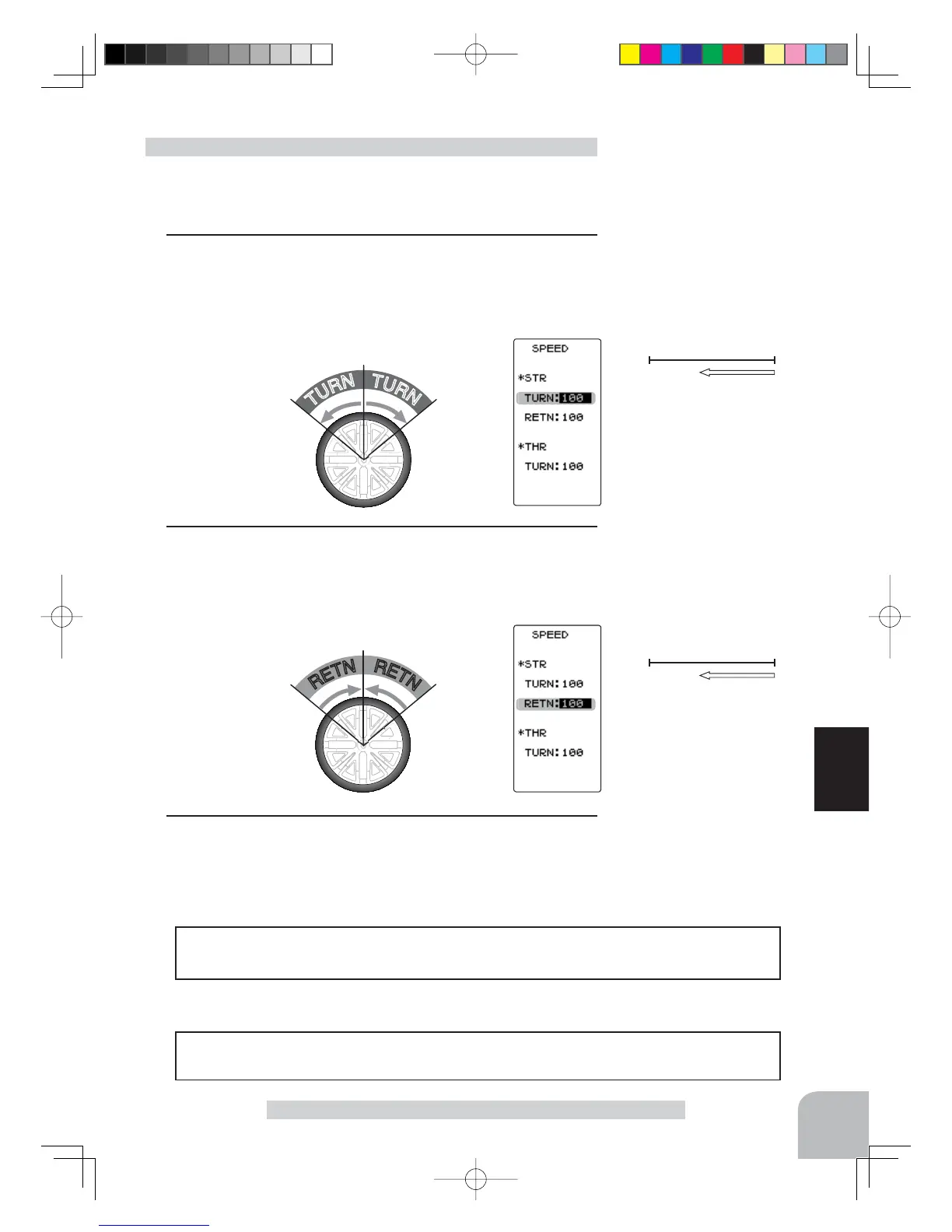

- On the SPEED screen make the following adjustments:
1
"TURN" direction adjustment
On the SPEED screen, select the setting item STR "TURN" by
moving the (JOG) button up or down. Use the (+) or (-) buttons
to adjust the delay amount.
Steering Speed adjustment
100%1%
Servo operation is delayed.
100%1%
Servo operation is delayed.
- On road TURN side: Approx. 50 80 RETURN side: Approx. 60 100
- Off road TURN side: Approx. 70 100 RETURN side: Approx. 80 100
Setting example (Steering servo: BLS451 / BLS351) . . . (Setting criteria)
Adjustment buttons
- Use the (+) and (-) buttons to
make adjustments.
- Return to the initial value by
pressing the (+) and (-) buttons
simultaneously (approx. 1 sec).
Adjustment buttons
- Use the (+) and (-) buttons to
make adjustments.
- Return to the initial value by
pressing the (+) and (-) buttons
simultaneously (approx. 1 sec).
Adjustment range
1~100% (each direction)
At 100%, there is no delay.
Adjustment range
1~100% (each direction)
At 100%, there is no delay.
Servo Speed "SPEED"
2
"RETN" direction adjustment
Select the setting item STR "RETN" by moving the (JOG) but-
ton up or down. Use the (+) or (-) buttons to adjust the delay
amount.
3
When finished with setting, return to the MENU screen by
pressing the (END) button.
The steering speed adjustment
"
TURN
"
and
"
RETN
"
can be controlled with digital dial
or digital trim. With the function select
trim dial function (See page 70).
Dial / Trim Setting
