Use e Maintenance ENGLISH
– 15 % left driving direction
– 15 % right driving direction
• a longitudinal incline
– 15 % forward incline
– 15% backward incline.
4.8.2 Filling level scale

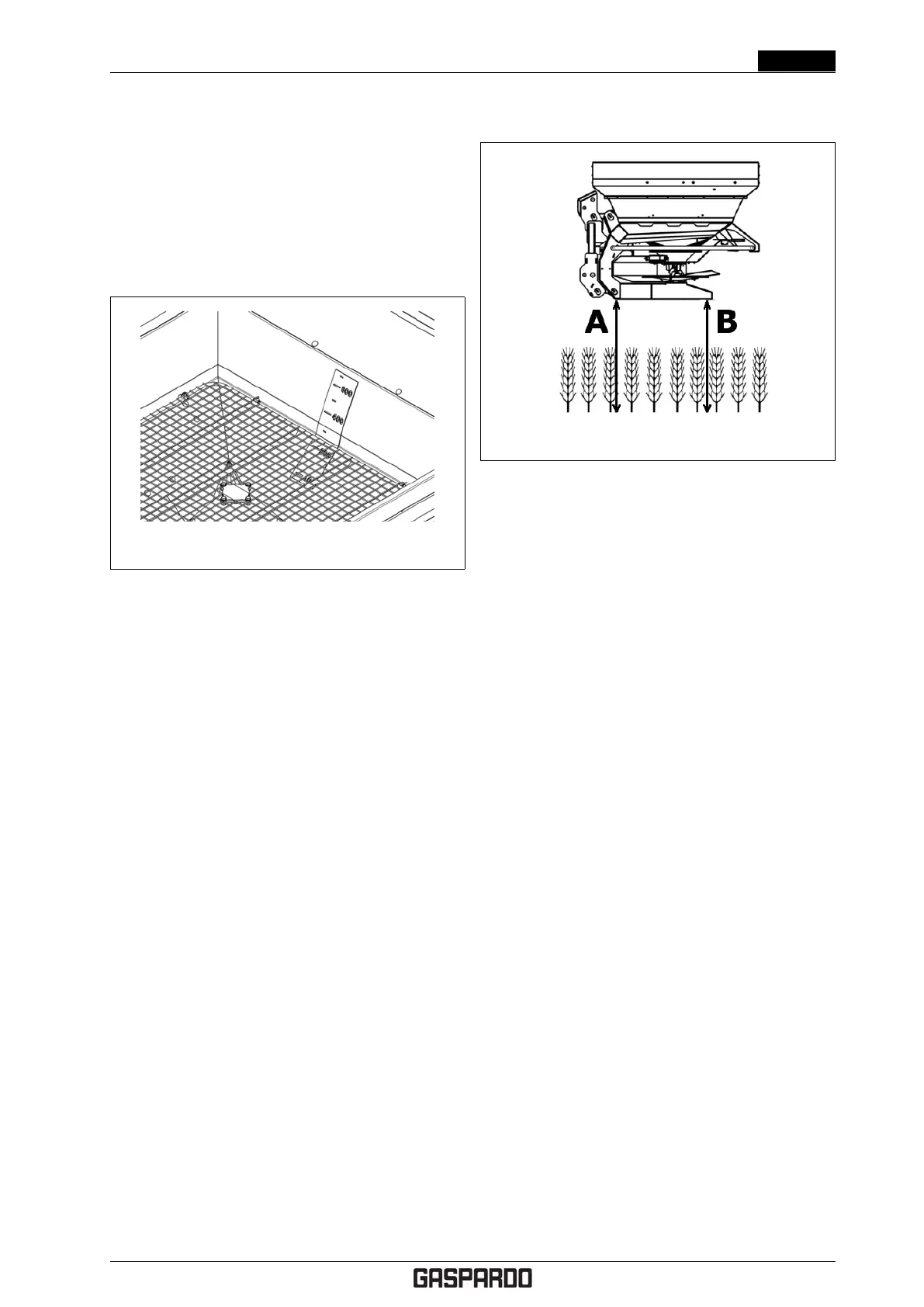

Figure 4.32: Graduated scale
To check how much fertiliser there is, a graduated scale
in litres is installed inside the hopper. Use this information
to assess how much longer you can work.
4.8.3 Late fertilisation
Figure 4.33: Late fertilisation
In the event of late fertilisation, the working height must
be adjusted with respect to the ground level, as shown in
fig. 4.33.
Be careful, in any case, never to exceed the maxi-
mum height of 100cm from the ground.
Cod. F07011577 EN - 39
