ENGLISH Use e Maintenance

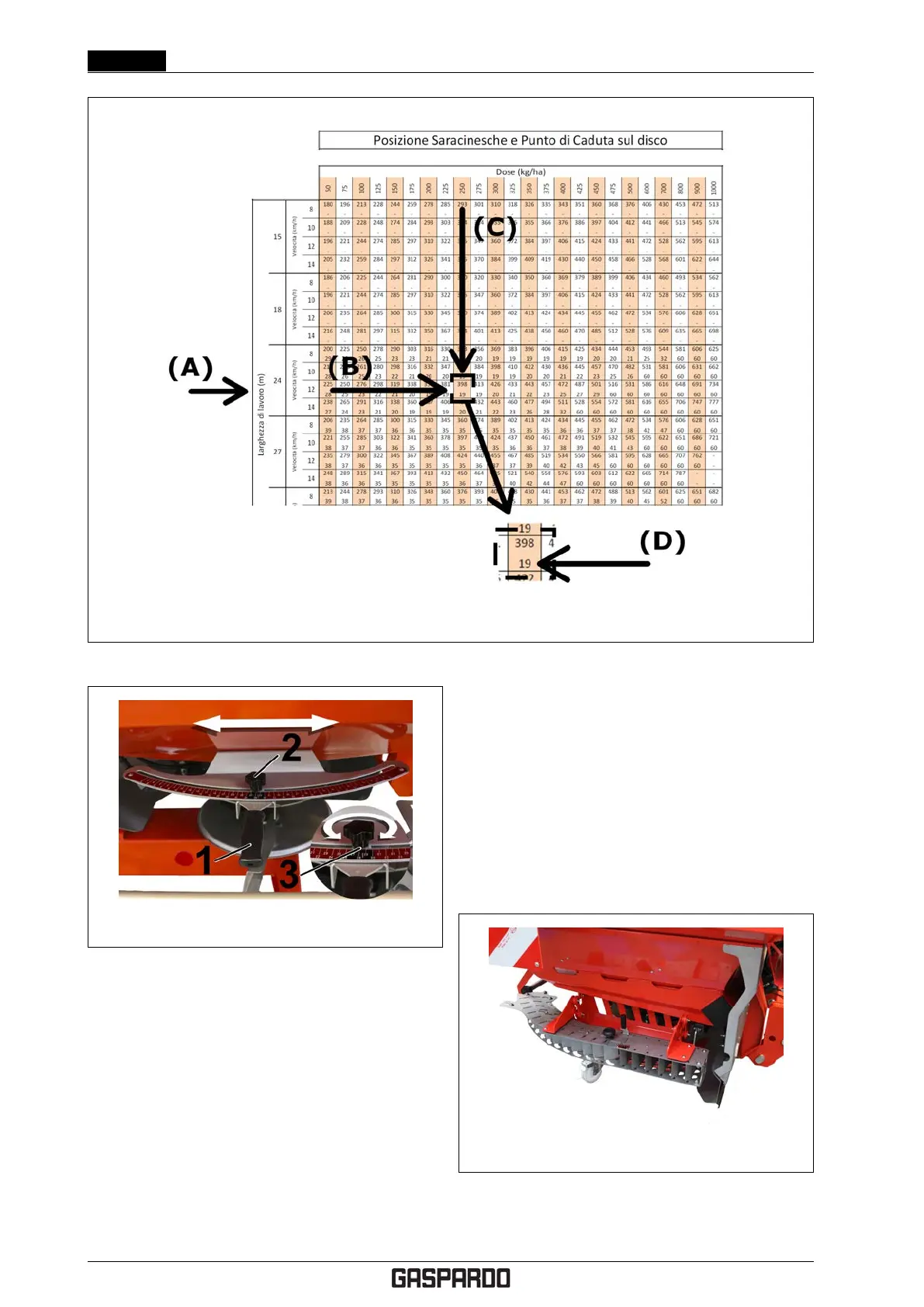

Figure 4.15: Spreading table: adjusting the drop point
Figure 4.16: Drop point adjustment lever
Other settings: P.T.O rpm, spreader disc rpm and
flow coefficient.
The following operating information is also shown on the
spreading table:
• Column (C): P.T.O. rpm to maintain during spreading.
• Column (D): spreading disc rpm to maintain during
spreading. This information can be used to replace
the number of P.T.O. rpm only in machines equipped
with a disc rotation speed detection sensor.
• Column (F): computer coefficient (fertiliser flow fac-
tor). This value must be set on the fertiliser spreader
control computer (see computer instructions manual)
before beginning spreading operations.
4.7.2 Border deflector
The border spreading deflector (see Fig. 4.17) is an ac-
cessory to spread along the edges of the field while pre-
venting the fertiliser from exceeding the borders.
Figure 4.17: Border spreading deflector
30- EN Cod. F07011577
