CONVENTIONS
The information notes contain important information, highlighted outside the text which they
refer
The caution messages contain important information to avoid behavior of the equipment
different from the desired and / or dangerous

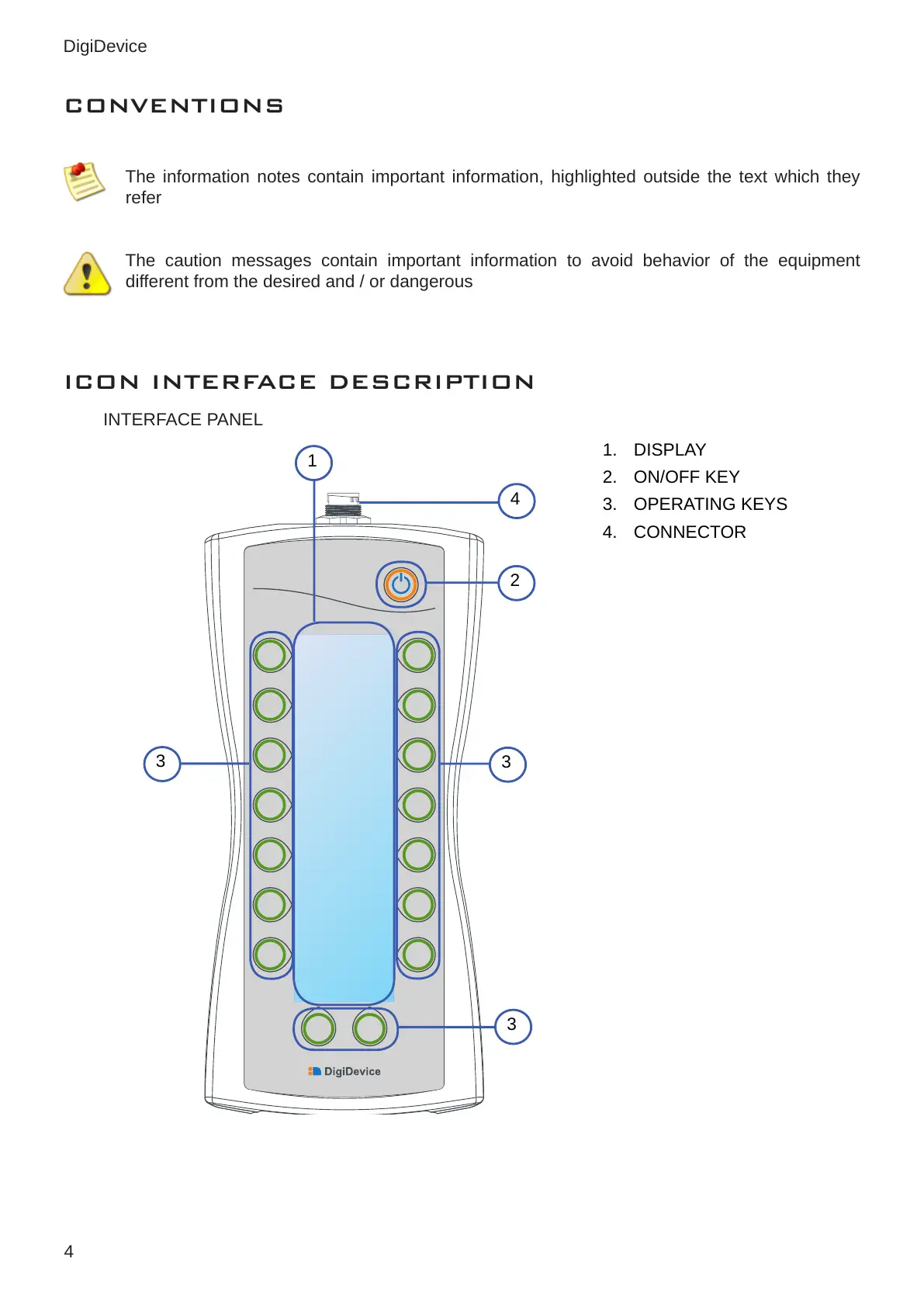

ICON INTERFACE DESCRIPTION
INTERFACE PANEL
1. DISPLAY
2. ON/OFF KEY
3. OPERATING KEYS
4. CONNECTOR
3
2
1
3
3
4
