Chapter 7: Repair Procedures
Canopy Removal for Service
Service Manual 7-5
6. Use the Enhanced Seal Retrofit Kit (M1208286) to replace the seal hardware.
7. Clean the canopy before reinstallation.
Refer to the following figure while performing the remaining steps in this section:
8. Reassemble in reverse order. If alignment is required, refer to the “7.6.1.1 Realigning the Canopy”
section.

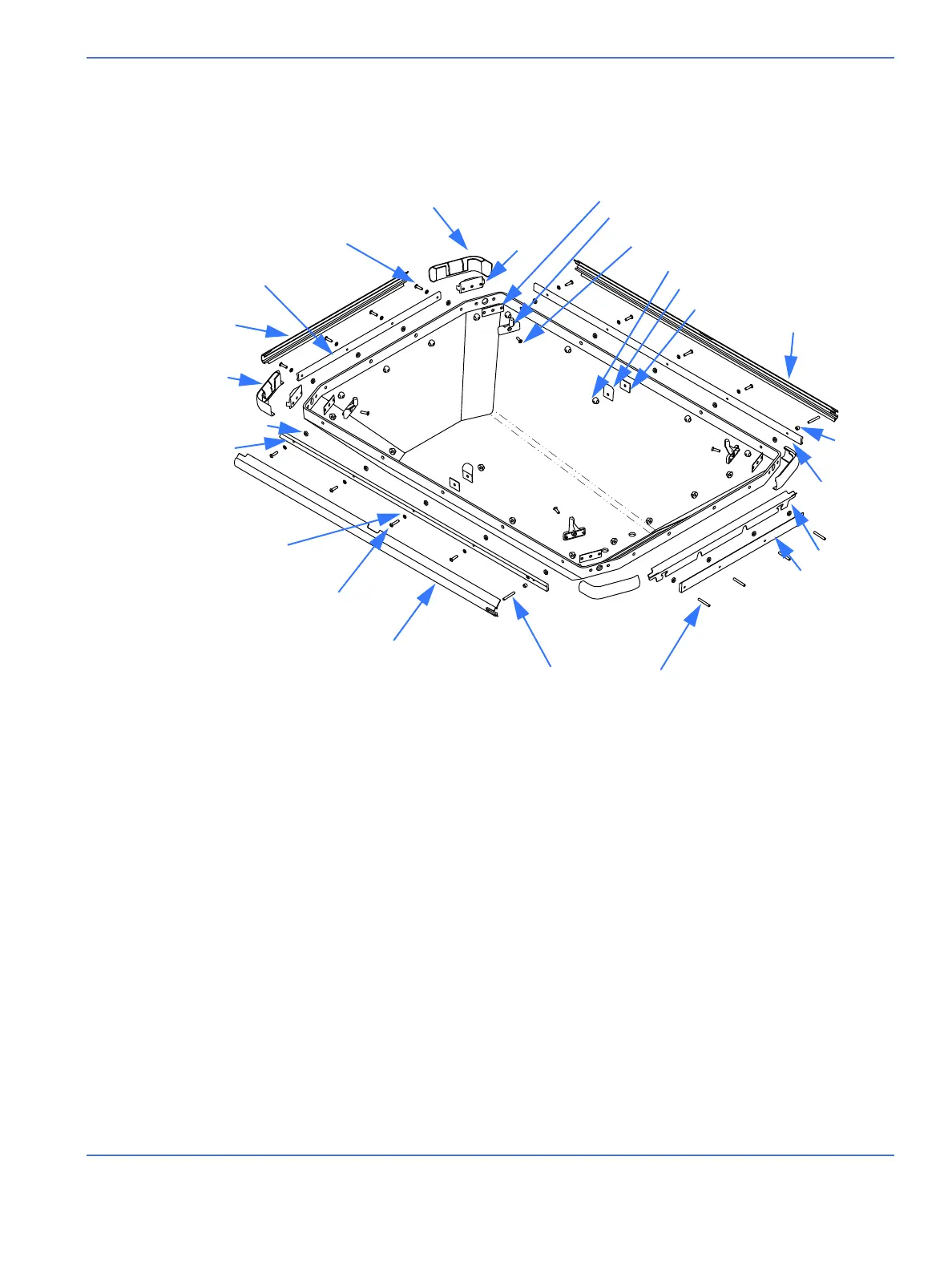

FIGURE 7-6. Canopy Seal Parts
Corner receiver
SE corner cover
Corner pin gasket
Corner pin
M4x16 flathead Phillips screw with
pre-applied nylon patch
Smooth nut
Door support
Door support gasket
East seal
Rail spacer
East rail
NE corner
flange
North seal
North spacer
NORTH
(heater door end)
NW corner flange
M4x30
sockethead set
screw cup point
West seal
M4x20 buttonhead socket
cap screw
West rail
Spacer washer
SW corner
cover
South seal
South rail
SOUTH
M4x16 buttonhead
socket cap screw
M4 splitlock washer
