GE Giraffe OmniBed Carestation CS1 - FIGURE 2-1. Weight Placement Locations

Chapter 2: Installation and Service Checkout
Service Checkout
2-8 Service Manual
11. Place a 5 kg weight on the third corner of the scale on the bed. (See location B3 in Figure 2-1.)
12. Record the SC value on the screen, and name it SC6.
13. Subtract SC3 from SC6. The value must be 5000 +/- 10.
14. Place a 5 kg weight on the fourth corner of the scale on the bed. (See location B4 Figure 2-1.)
15. Record the SC value on the screen, and name it SC7.
16. Subtract SC3 from SC7. The value must be 5000 +/- 10.

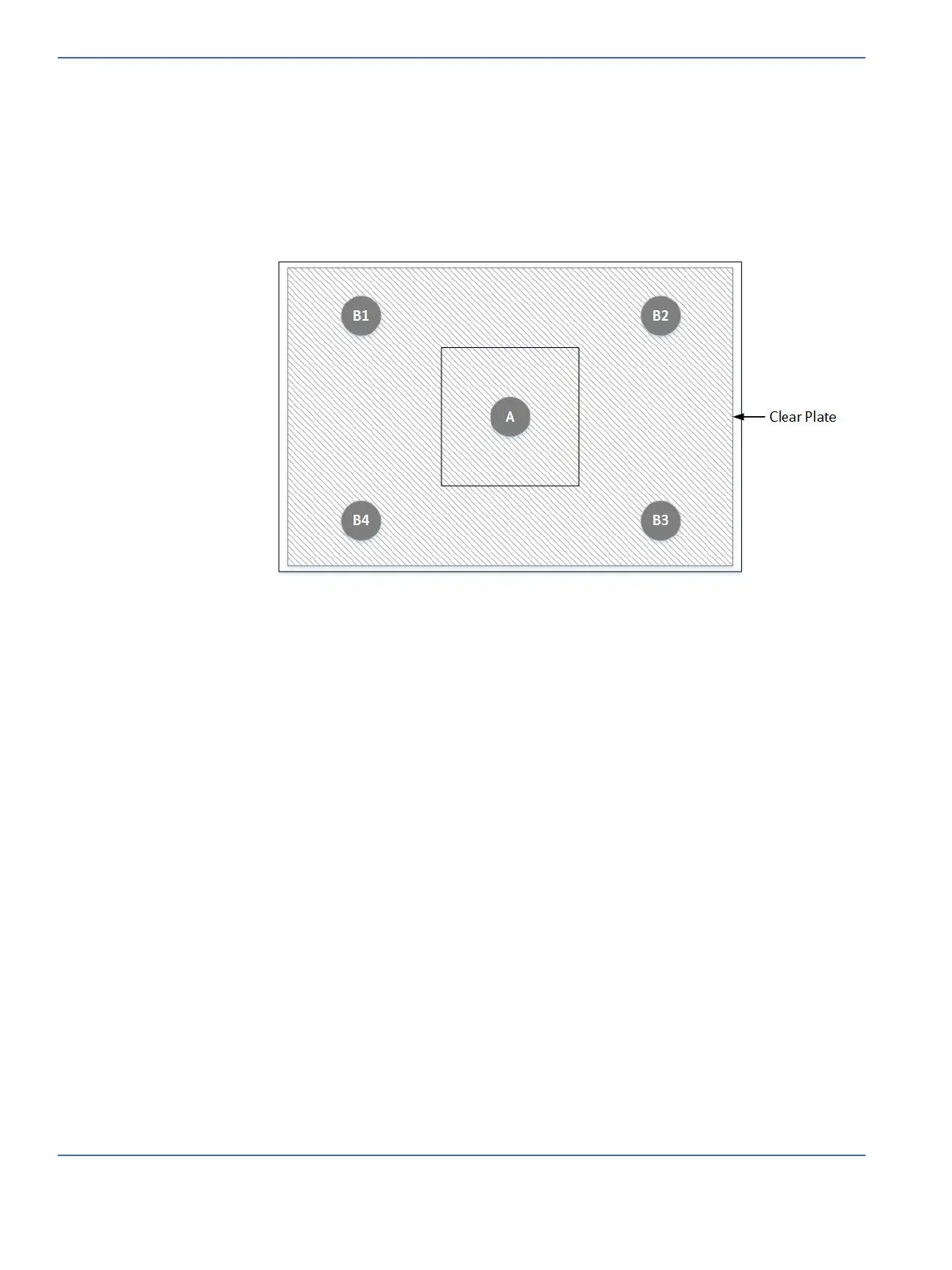

FIGURE 2-1. Weight Placement Locations
