GE Giraffe OmniBed Carestation CS1 - 8.10 Chassis

Chapter 8: Illustrated Parts
Chassis
Service Manual 8-27
8.10 Chassis
1. Fan seal................................................................................. 6600-1557-500
2. Fan Replacement Kit....................................................... 2097465-001
3. Fan hub ................................................................................. 6600-1440-500
4. Heat sink............................................................................... 6600-1858-500
5. Heat sink gasket................................................................6600-0300-300
6. Canopy lift switch, left (east)........................................ 6600-0736-701
7. Canopy lift switch, right (west).................................... 6600-0736-702
8. Hairpin ................................................................................... 6600-1046-400
9. Tie down cylinder ............................................................. 6600-1795-500
10. Incubator heater and harness assembly .............. 6600-1041-700
Retaining clip ...................................................................... 6600-1211-500

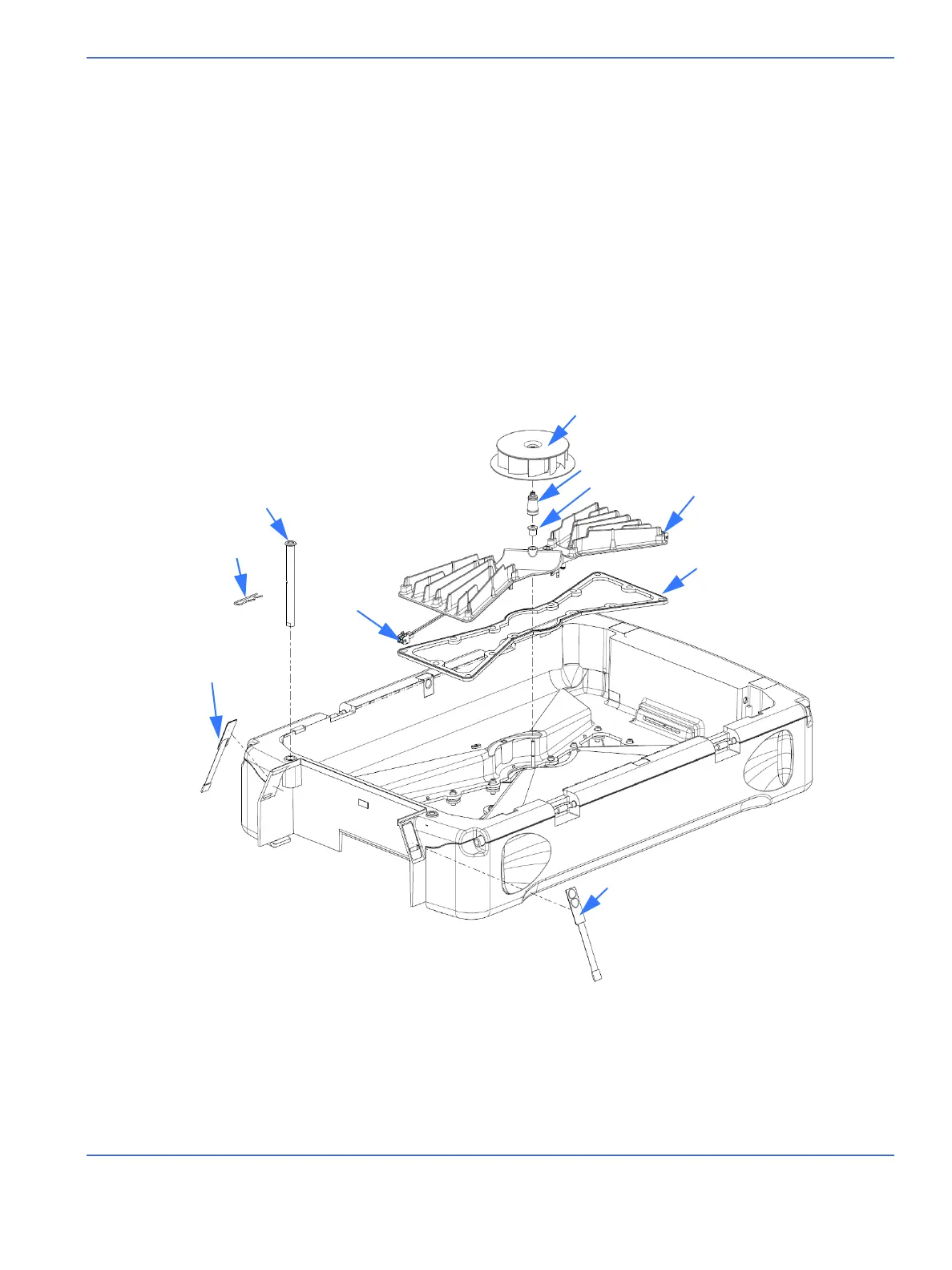

FIGURE 8-14. Upper Chassis
10
8
9
2
3
1
4
5
7
6
