GE Giraffe OmniBed Carestation CS1 Service Manual

Chapter 8: Illustrated Parts

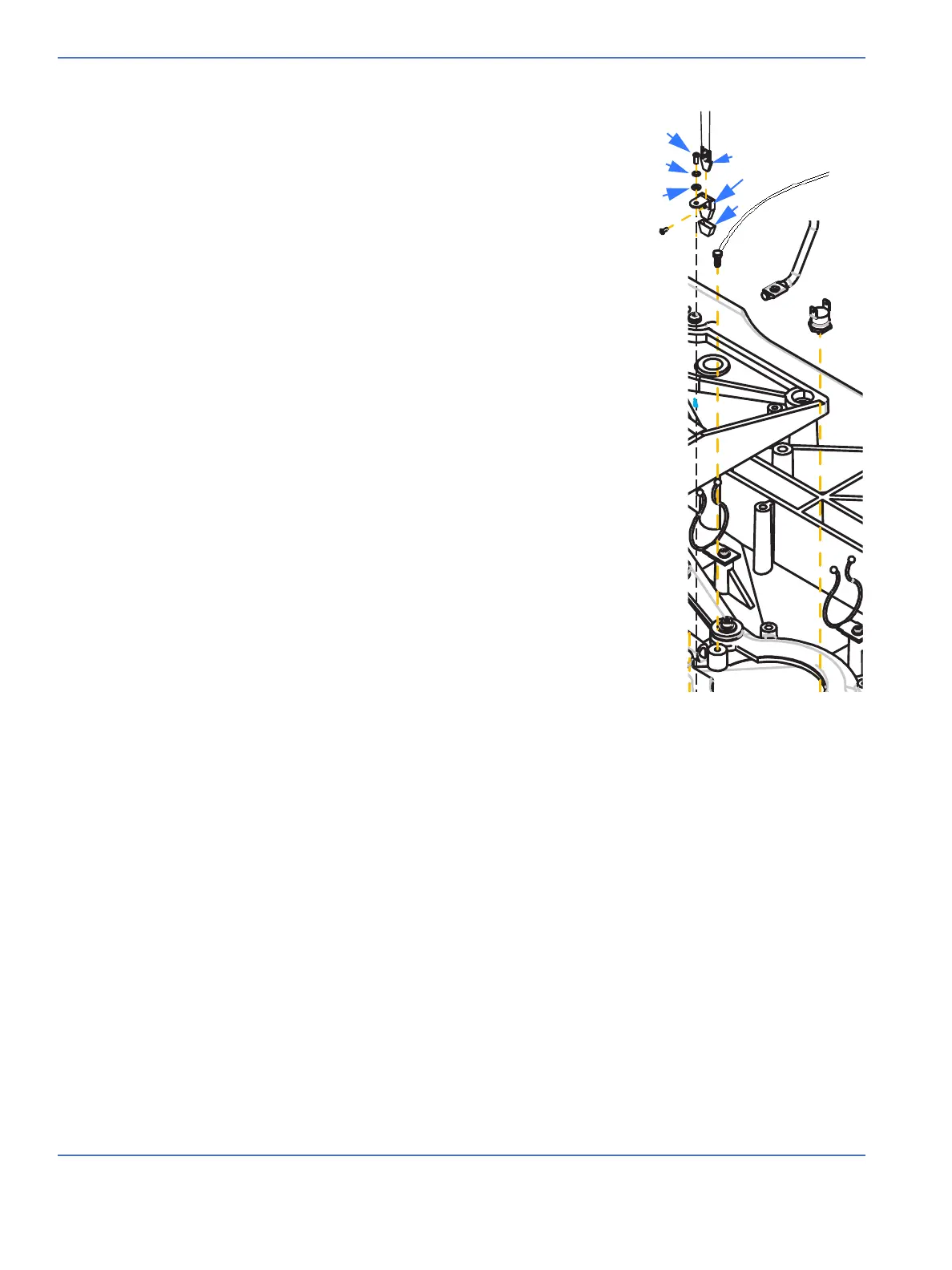

Chassis
8-28 Service Manual
1. Fan motor bracket ........................................................... 6600-1162-500
2. Fan motor
......................................................................2086675-001
Fan...........................................................................................6600-1433-500
3. Screw, M4 shoulder..........................................................6600-1051-400
4. Flat washer, M5..................................................................6600-0712-409
5. Motor mount....................................................................... 6600-1000-400
6. M3 star washer, internal tooth ...................................6600-0713-431
7. Screw, M3 x 6 ......................................................................6600-0707-401
8. Thermostat ..........................................................................6600-1019-600
9. Heat sink sensor ............................................................... 2081533-001
10. Screw, M5 x 25.................................................................... 6600-0707-418
11. Split ring lock washer, M5..............................................6600-0713-404
12. Bushing..................................................................................6600-1434-500
13. Silicon washer ....................................................................6600-1778-500
14. Screw, M4 x 8 ......................................................................6600-0707-408
15. Split ring lock washer, M4..............................................6600-0713-403
16. Flat washer, M4..................................................................6600-0712-446
17. Wire routing clip................................................................6600-1197-600
18. Front Pleur-evac hanger (south) ................................ 6600-1202-500
19. Screw, M4 x 10.................................................................... 6600-0707-409
20. Star washer, M4.................................................................6600-0713-443
21. Washer Ext Lock M6 ........................................................6600-0713-445
22. Knob........................................................................................6600-0894-400
Push washer........................................................................6600-0895-400
23. Filter cover assy. (includes knob and washer)..... 6600-1533-700
24. Filter (10 pcs)....................................................................... 6600-0207-850
25. Chassis...................................................................................6600-0278-850
26. Bed pivot block................................................................... 6600-1326-500
27. Screw, M4 x 20.................................................................... 6600-0707-412
28. Door hinge button............................................................6600-1285-500
29. E-clip .......................................................................................6600-1045-400
30. Washer ..................................................................................6600-1100-400
31. Pin stop..................................................................................6600-1730-500
32. Door spring..........................................................................6600-1044-400
33. Hinge pin...............................................................................6600-1284-500
34. Chassis side panel ...........................................................6600-1280-500
35. Screw, M5 x 12.................................................................... 6600-0706-418
36. Optical fan sensor (includes wire harness)........... 6600-0820-700
37. Sensor holder......................................................................6600-1435-500
38. Sensor gasket.....................................................................6600-1437-500
39. Screw, M2.9 x 6.5............................................................... 6600-0709-405
40. Screw, M3 x 6 ......................................................................6600-0707-401
41. Split ring lock washer, M3..............................................6600-0713-402
42. Flat washer, M3..................................................................6600-0712-402
43. Side Pleur-evac hanger (E/W)......................................6600-1703-500
44. Screw, M6 x 12, Btn. Hd..................................................6600-0706-427
45. Wire raceway cover.........................................................6600-1303-500
46. Screw M4 x 10 Button Head.........................................6600-0706-409
47. Chassis cover......................................................................2071288-001
40
41
42
39
9
37
36
8
38
