GE Giraffe OmniBed Carestation CS1 - FIGURE 8-26. Expansion Chamber;Heatsink Vent

Chapter 8: Illustrated Parts
Servo Control Oxygen
8-50 Service Manual
1. Screw, M4 Skt Hd...............................................................6600-0706-409
2. Split ring washer, M4 ....................................................... 6600-0713-403
3. Flat washer, M4..................................................................6600-0712-403
4. Expansion chamber cover............................................6600-1878-500
5. Cover gasket ....................................................................... 6600-1883-500
6. Elbow fitting ........................................................................ 6600-0873-400
7. Expansion chamber assembly
(includes items 1-6).......................................................... 6600-0256-850
8. Vent .........................................................................................6600-1881-500
9. Washer (thick).....................................................................6600-1219-400
Parts Not Shown
P-clamp (under Pleur-evac holder)...........................0690-1240-331
Washer, M6 (under Pleur-evac holder)....................6600-0712-405
Expansion chamber inlet gasket............................... 6600-1884-500

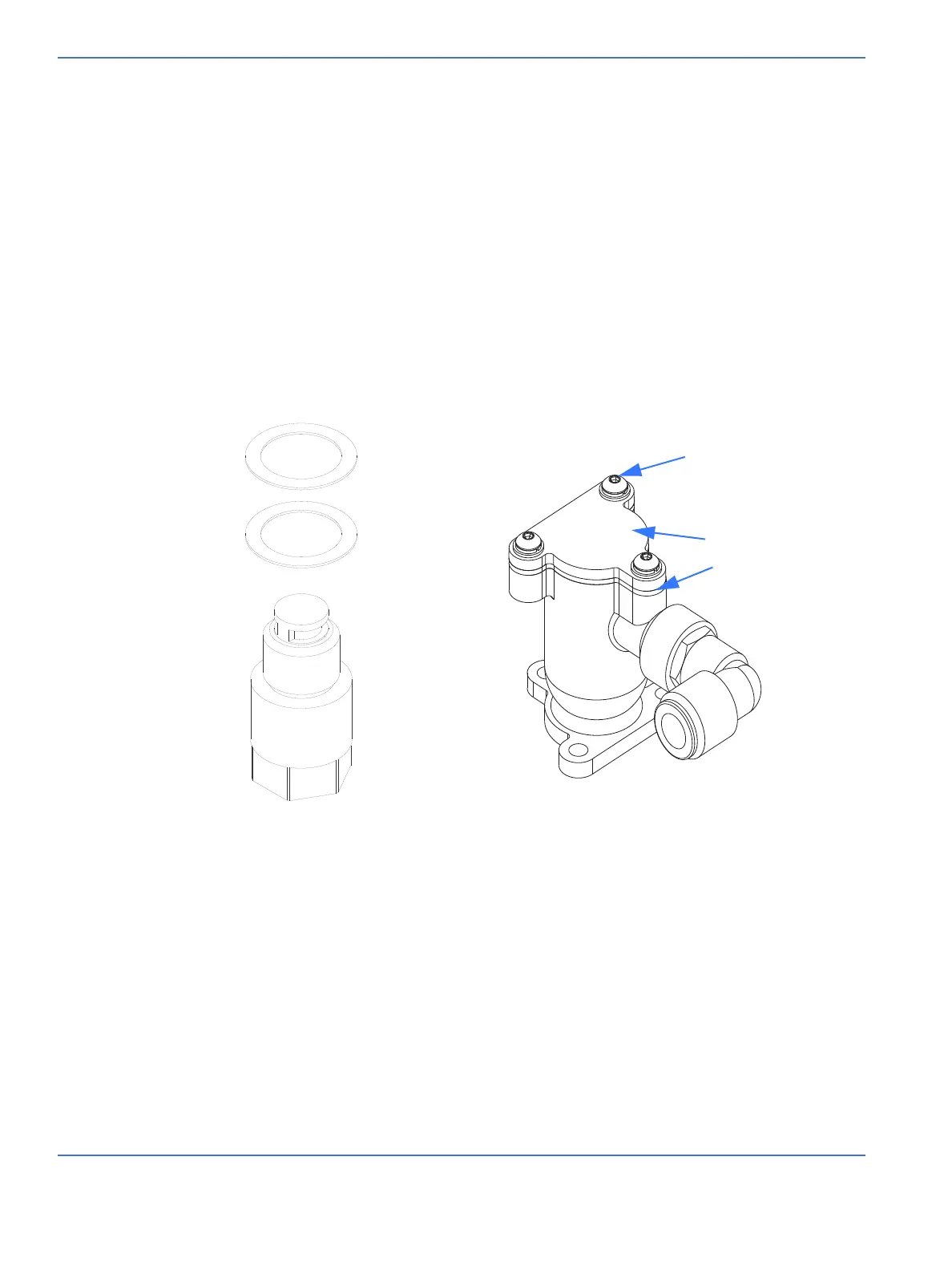

FIGURE 8-26. Expansion Chamber/Heatsink Vent
1, 2, 3,
4
5
6
7
9
9
8
