GE Giraffe OmniBed Carestation CS1 - 1.14 Rear View

Chapter 1: Functional Description
Rear View
1-12 Service Manual

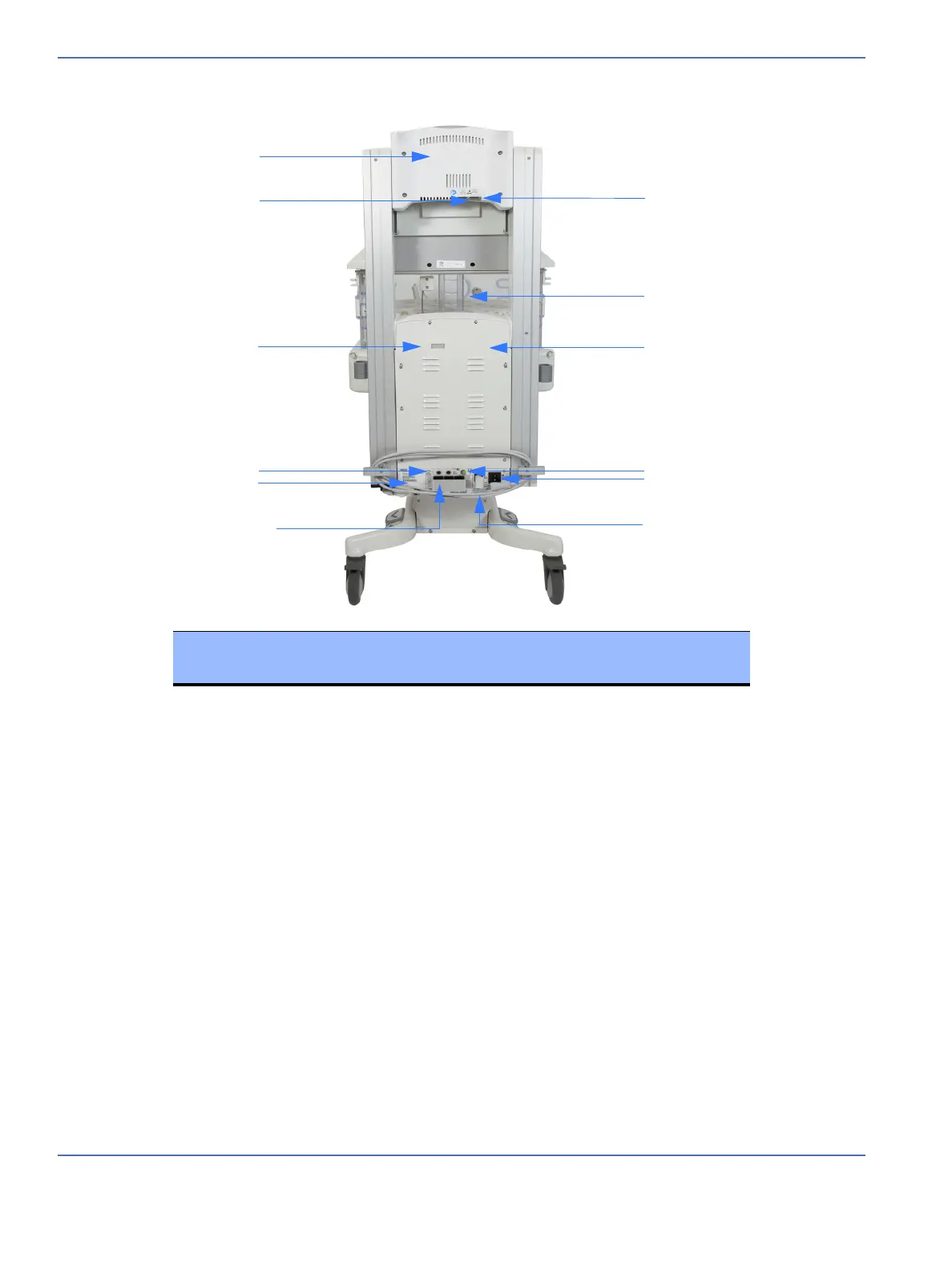

1.14 Rear View
Feature
Number
Description
1 Control Panel cover
2 USB port
3Ethernet port
4 Ventilator access
5 RS-232 connector for DataLink option
6 Rear Panel cover
7 Circuit breakers for accessory outlets
8Grounding Post
9 Accessory power outlet connectors
10 Mains Power Switch
11 Power cord connector
12 Serial number
2
3
5
6
7
1
4
8
10
11
12
9
