GE Giraffe OmniBed Carestation CS1 Service Manual

Chapter 7: Repair Procedures
Servo Controlled Oxygen Service Procedures
7-60 Service Manual
7.18 Servo Controlled Oxygen Service Procedures
7.18.1 Installing Oxygen Sensors
Refer to Figure 7-54.
1. Slide the drawer to one side and using a 3 mm hex key, loosen the captive screws in the chassis cover
sensor housing door and swing the door down to access the sensor housing.
2. Using a 3 mm hex key, loosen the two M4 socket head screws that secure the sensor housing cover,
and remove the cover.
3. Remove the old oxygen sensors. Replace with two new sensors (2084419-001).
Note: The date on the sensor is a discard date; the sensor should be removed from service on this date. All
sensors are shipped from GEHC at least 12 months prior to this date; sensors should be installed
immediately to ensure maximum operating life.
4. Reinstall the sensor housing cover and close and secure the door in the chassis cover.
5. Perform the Pre-use Checkout.
7.18.2 Replacing the Vent Screen
1. Remove rotating mattress tray, tilt platform and upper pan.
2. Remove the vent cover by turning it counter clockwise.
3. Remove and discard the ring shaped vent filter screen from the chassis vent.
4. Install a new vent screen and reinstall the vent cover.
5. Perform the Pre-use Checkout.

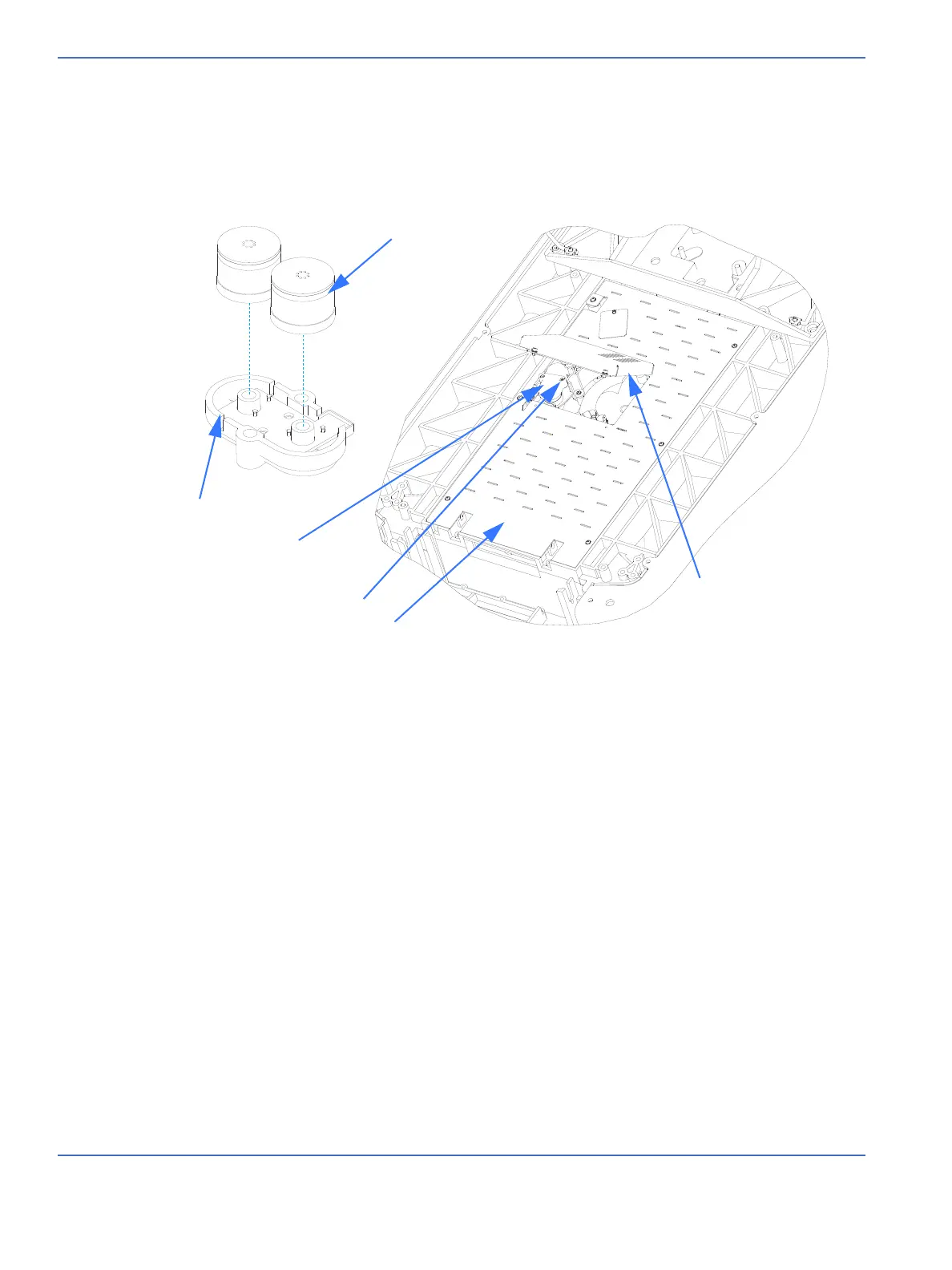

FIGURE 7-54. Installing Sensors
Oxygen sensor
Sensor housing cover
Sensor housing cover
Captive screw
Chassis cover
Sensor housing door
