GE Giraffe OmniBed Carestation CS1 - FIGURE 8-22. Left (West) Upright (Complete West Rail Assembly: 6600-0290-851)

Chapter 8: Illustrated Parts
Uprights and Lift Rail Components
8-44 Service Manual
** The side roller pin, side roller bracket, and side roller should be ordered together. Use pliers to press the pin into the
side roller bracket.
*** When ordering this assembly, also order 6600-1097-603, unless you have a pin extractor. For details, refer to
section 7.5.5.
12
11
10
9
8
7
6
5
4
3
2
1

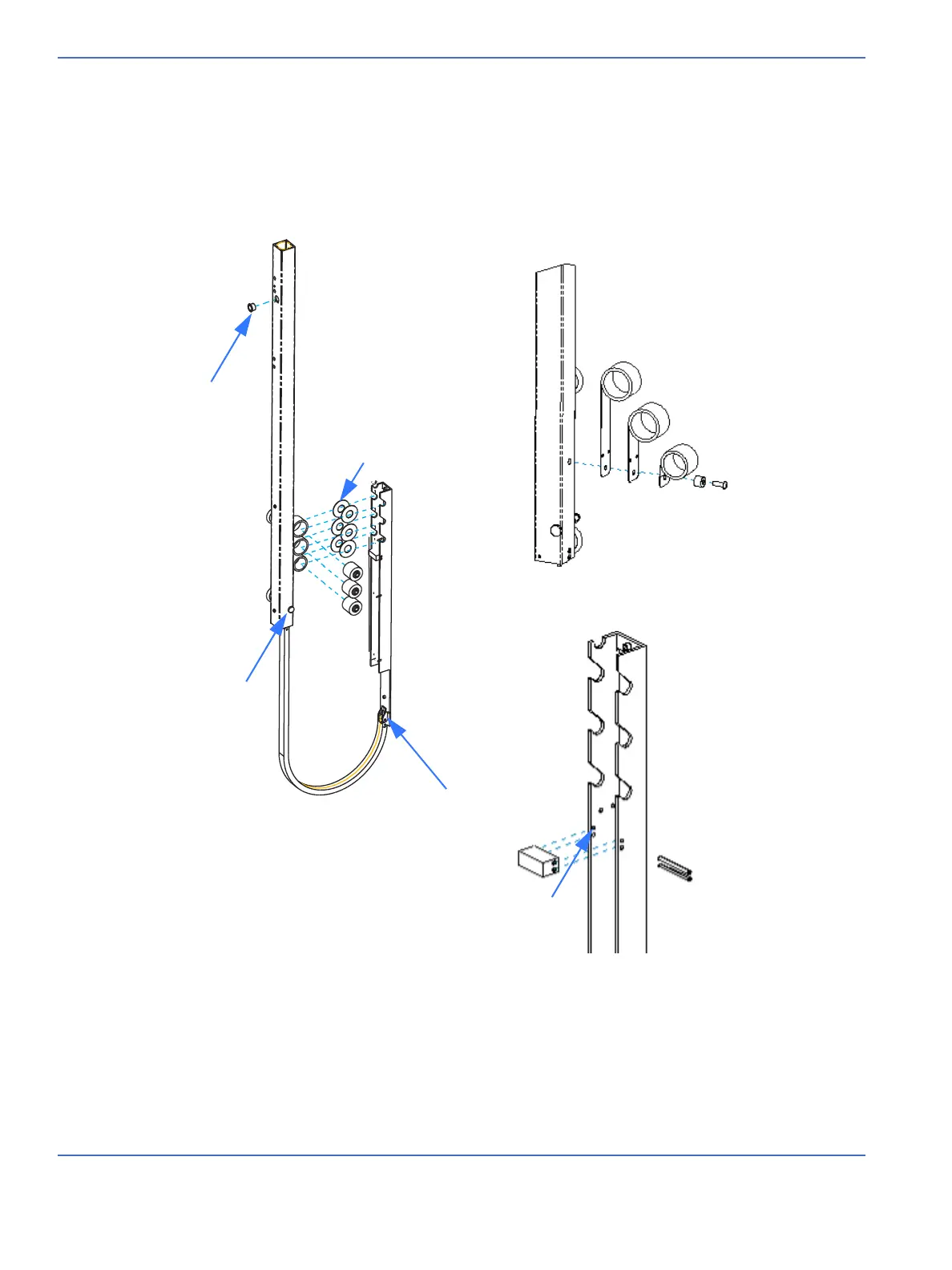

FIGURE 8-22. Left (West) Upright (Complete West Rail Assembly: 6600-0290-851)
30
29
29
31 (not shown)
