GE Giraffe OmniBed Carestation CS1 Service Manual

Chapter 8: Illustrated Parts
Elevating Base
Service Manual 8-33

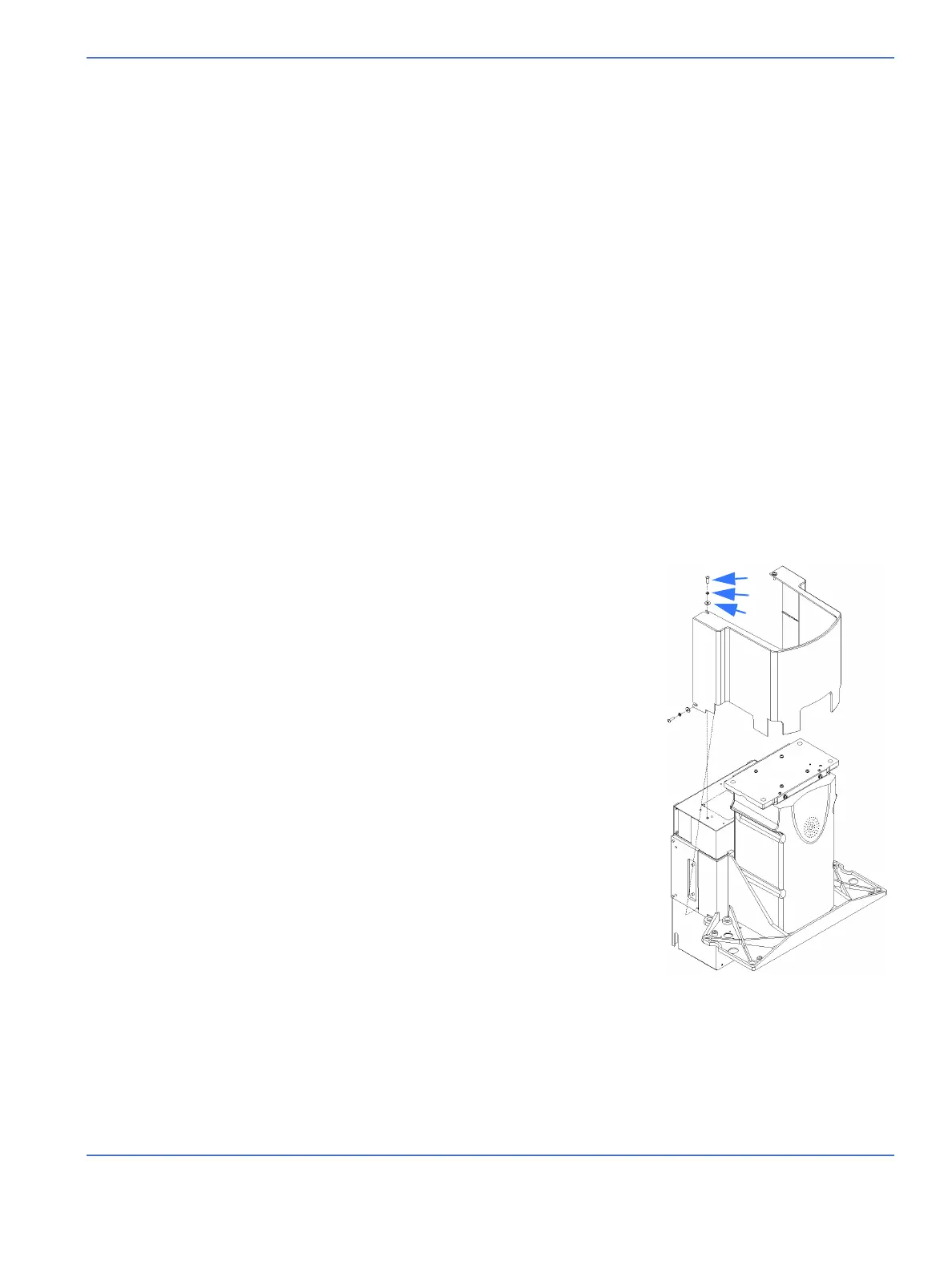

8.12 Elevating Base
1. Main Bracket....................................................................... 6600-1183-500
2. Flat Washer, ........................................................................ M86600-0712-406
3. Nut, M8.................................................................................. 6600-0714-405
4. Lower Shroud ..................................................................... M1078152
5. Cover Shroud...................................................................... M1078156
6. Leg Casting.......................................................................... 6600-1599-500
7a. SVCE Kit Canopy Fswitch Gray .................................. 2081691-001
(Includes one pedal and labels for both left and right pedals.
Can be used on left or right side.)
7b. SVCE Kit Canopy Fswitch/Ebase Ped Set Gray ... 2081689-001
(Includes two gray pedals for base and two gray pedals for the canopy.)
7c. SVCE Kit Ebase Pedal Gray........................................... 2081688-001
7d. SVCE Kit Ebase Pedal Set Gray...................................2081690-001
8. Screw, 2.9 x 9.5 Pan Head............................................. 6600-0709-409
9. Flat Washer, M3................................................................. 6600-0712-448
10. Twist Lock .............................................................................6600-1197-600
11. Speaker.................................................................................. 6600-1168-600
12. Lock Washer, M12.............................................................6600-0713-408
13. Screw, M12 x 20 button head...................................... 6600-0706-449
14. Caster ..................................................................................... 6600-0890-400
15. Screw, Button head M8 x 1........................................... 6600-0706-435
16. Cover Assy Leg Wiring East.......................................... 6600-1545-700
17. Cover Assy Leg Wiring West ....................................... 6600-1546-700
18. Washer Ext Lock M6........................................................ 6600-0713-445
19. Screw, M6 x 12 button head ........................................ 6600-0706-427
20. Lock Washer, M6 ............................................................... 6600-0713-405
21. Screw M6 x 45 Button head......................................... 6600-1117-402
22. Mounting Plate................................................................... 6600-1186-500
23. Elevating Column.............................................................. 6600-0753-701
24. Flat Washer, M6 ................................................................. 6600-0712-405
25. Screw, M12 x 45 Button Head..................................... 6600-0706-449
26. Screw, M4 x 10 Button Head........................................ 6600-0706-409
27. Lock Washer, M4 ............................................................... 6600-0713-403
28. Flat Washer, M4 ................................................................. 6600-0712-403
29. Upper Shroud...................................................................... M1078154
30. Screw, M5 x 10 Button Head........................................ 6600-0706-417
31. Lock Washer, M5 ............................................................... 6600-0713-404
32. Flat Washer, M5 ................................................................. 6600-0712-409
33. Hood Lift Pedal (gray).........................................................M1108743
(Includes one pedal and labels for both left and right pedals.
Can be used on left or right side.)
34. Hood/Base Lift Pedals, set of four (gray)................ .M1108795
(Includes two gray pedals for base and two gray pedals for the canopy.)
35. Hood Lift Pedal Assy., all gray.......................................M1108795
36. Screw, M12 Button Head.................................................6600-0706-448
37. Screw, M8 x 16 Skt. Hd. .................................................. 6600-0707-427
38. Lock Washer, split ring M8............................................ 6600-0713-406
30
31
32
29
