GE Giraffe OmniBed Carestation CS1 - 1.11 Front View

Chapter 1: Functional Description
Front View
Service Manual 1-9

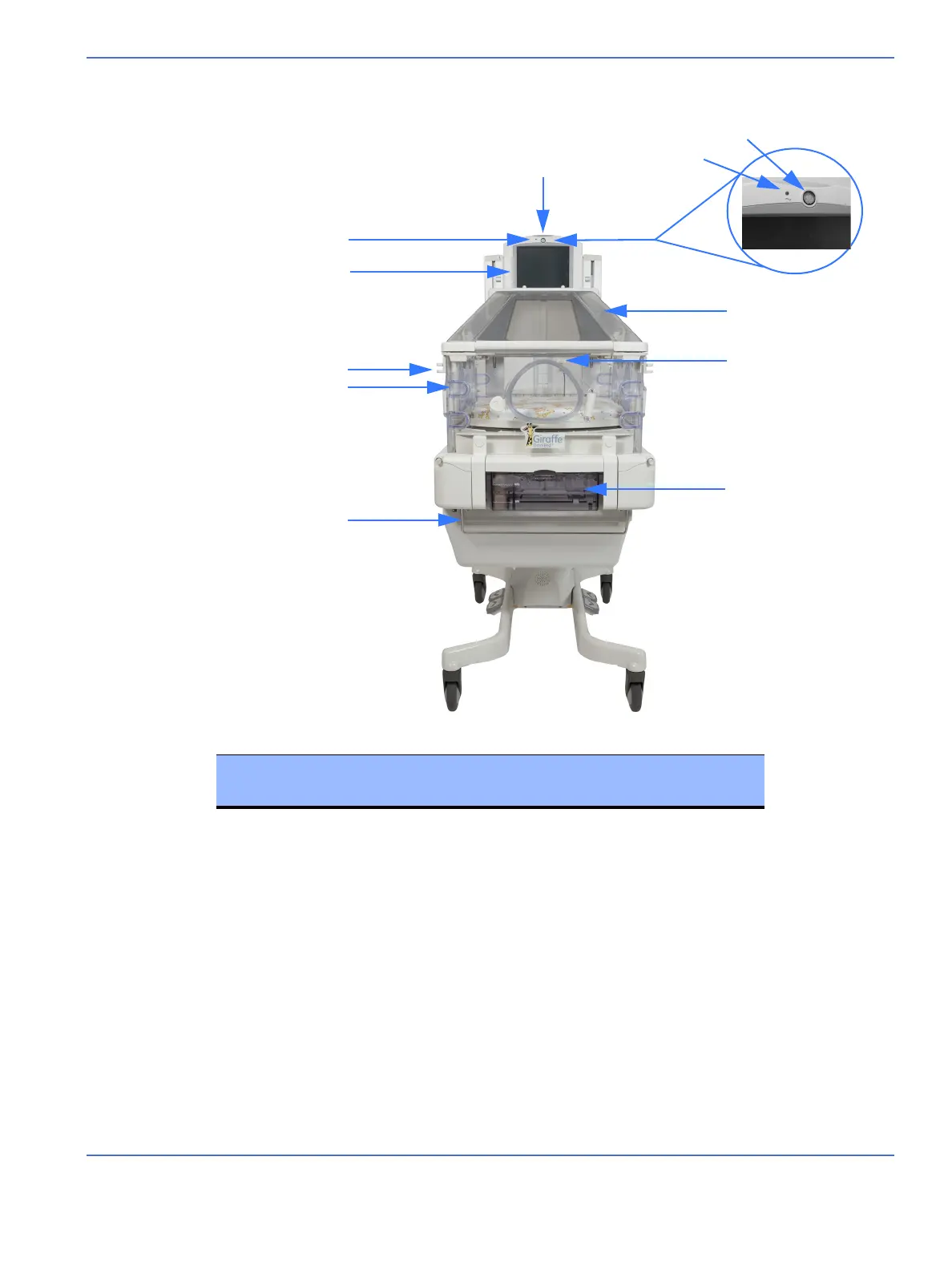

1.11 Front View
Feature
Number Description
1Indicator Light
2 Power Fail/HFAS Indicator Light (Red Power Fail, Green HFAS)
3 Hands Free Alarm Sensor
4Control Panel
5Canopy
6 Side bed panel latches
7 Compartment air and humidity sensor (on rear bed panel on
Control Panel end)
8 Tubing management grommet
9 Humidifier Water Reservoir (air filter located behind humidifier)
10 Pleural drainage hanger
