Chapter 8: Illustrated Parts
Compartment Sensor
Service Manual 8-45
8.14 Compartment Sensor
1. Compartment Sensor@................................................. 2075908-001
Probe wire harness@...................................................... 6600-1513-700
2. O-ring ..................................................................................... 6600-0540-400
2a. Shim washer**................................................................... 2103116-001
3. Humidity sensor assembly*......................................... 6600-0784-700
4. Retainer................................................................................. 6600-1475-500
5. Break plate...........................................................................6600-1473-500
6. Screw, M3 x 6 button hd................................................ 6600-0706-406
7. Back plate ............................................................................6600-1474-500
8. Flat washer, M3.................................................................. 6600-0712-402
9. Split ring lock washer...................................................... 6600-0713-402
10. Screw, M3 x 20 button hd..............................................6600-0706-404
11. Screw, M4 button hd........................................................6600-0706-411
12. Cable clamp......................................................................... 6600-0144-400
13. Lock nut, M4........................................................................ 6600-0714-402
Parts Not Shown
Humidifier Calibration Kit*........................................... 6600-0048-850
**Service kit 2103116-001 contains 10 shim washers (2098085-001).
*Device must be recalibrated using Humidifier Calibration Kit whenever sensor is replaced.

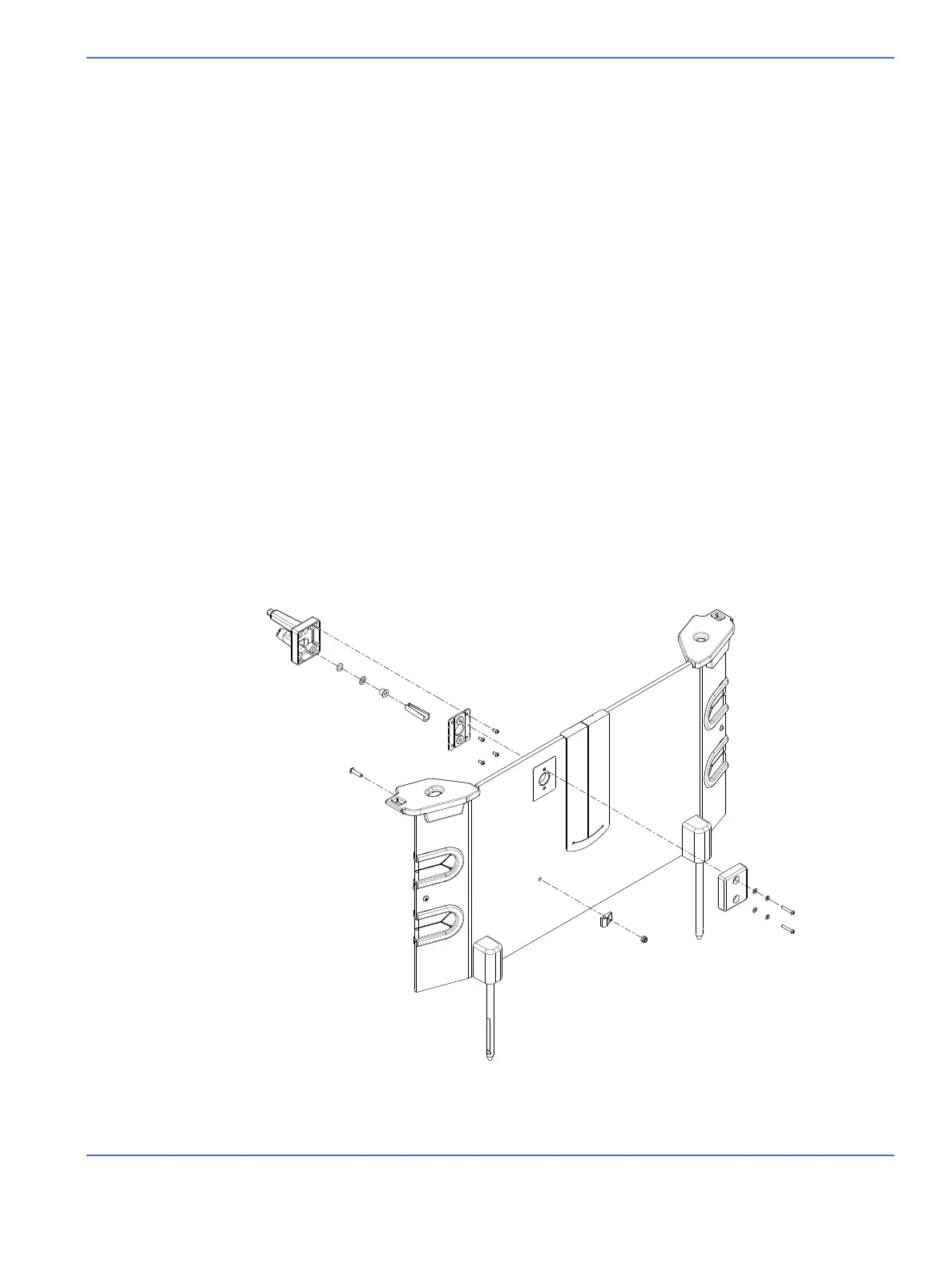

FIGURE 8-23. Compartment Sensor
12
13
7
8
9
10
11
6
5
4
3
2
1
2a
To Next Page
