GE Giraffe OmniBed Carestation CS1 - FIGURE 8-38. Dovetail Extension (6600-0852-800)

Chapter 8: Illustrated Parts
Options
8-62 Service Manual
1. Dovetail rail.......................................................................... 6600-1946-500
2. Bottom end cap.................................................................6600-0366-500
3. Screw, 4-40 x 1/2, Skt. Hd.............................................0144-2117-208
4. Top end cap.........................................................................6600-1239-400
5. Swing arm assembly....................................................... 6600-1516-700
6. Knob........................................................................................6700-0020-400
7. Teflon washer .....................................................................6600-1238-400
8. Knob, block ..........................................................................0217-5335-300
9. Washer ..................................................................................0202-0095-300
10. Bushing..................................................................................6700-0030-400
11. Lock washer, int. tooth ................................................... 0202-3418-300
12. Screw, 5/16 - 18 Skt. Hd.................................................6600-0787-400
13. Label........................................................................................6600-2497-102
14. Pawl Block Assembly....................................................... M1171925
(Includes Items 8 and 9)

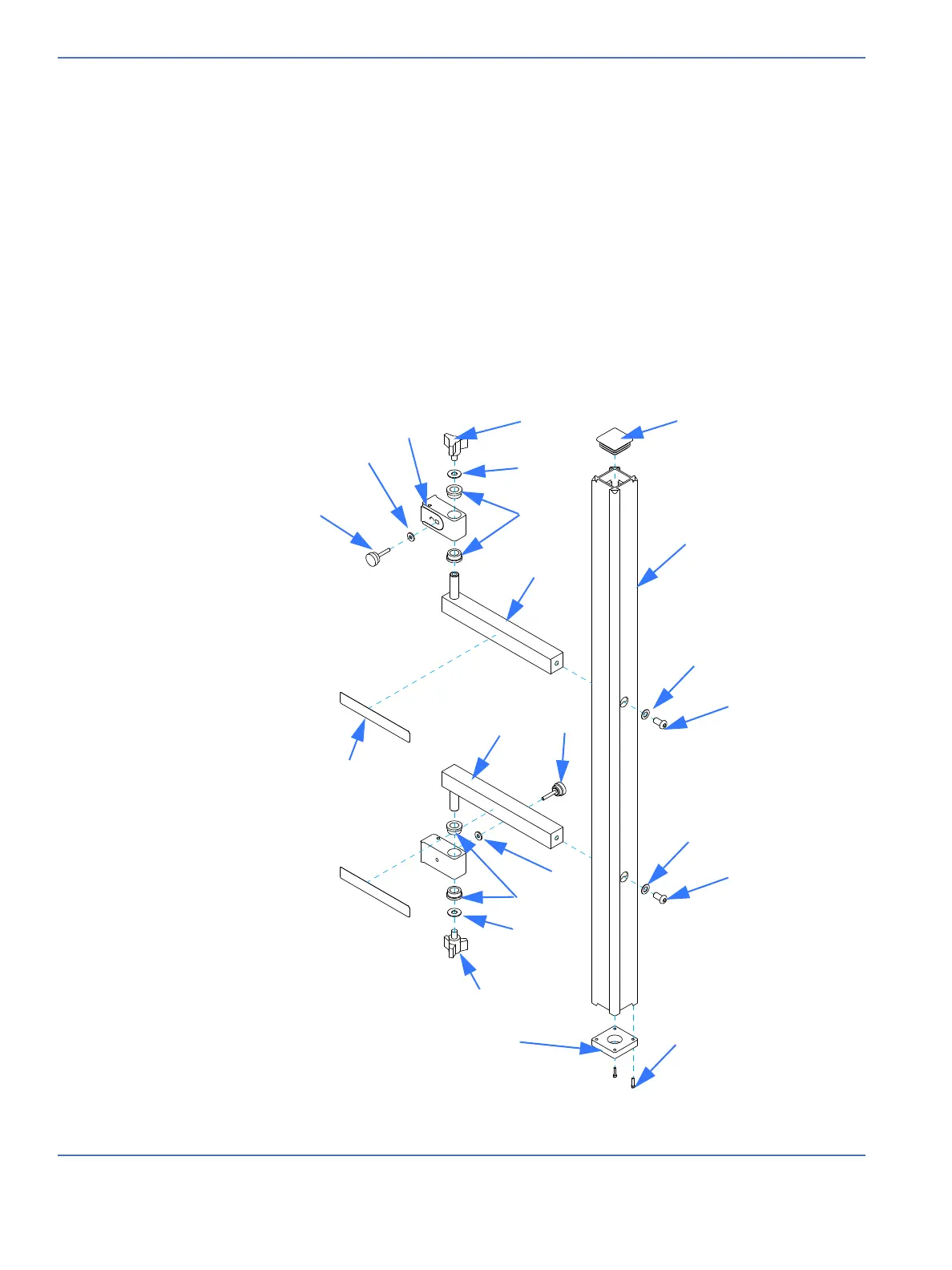

FIGURE 8-38. Dovetail Extension (6600-0852-800)
4
6
7
10
5
1
9
8
11
12
11
12
3
2
6
7
10
9
13
13
5
8
14
