GE Giraffe OmniBed Carestation CS1 - FIGURE 8-19. Belt Channel - 1 (Lift Motor Side)

Chapter 8: Illustrated Parts
Uprights and Lift Rail Components
8-38 Service Manual

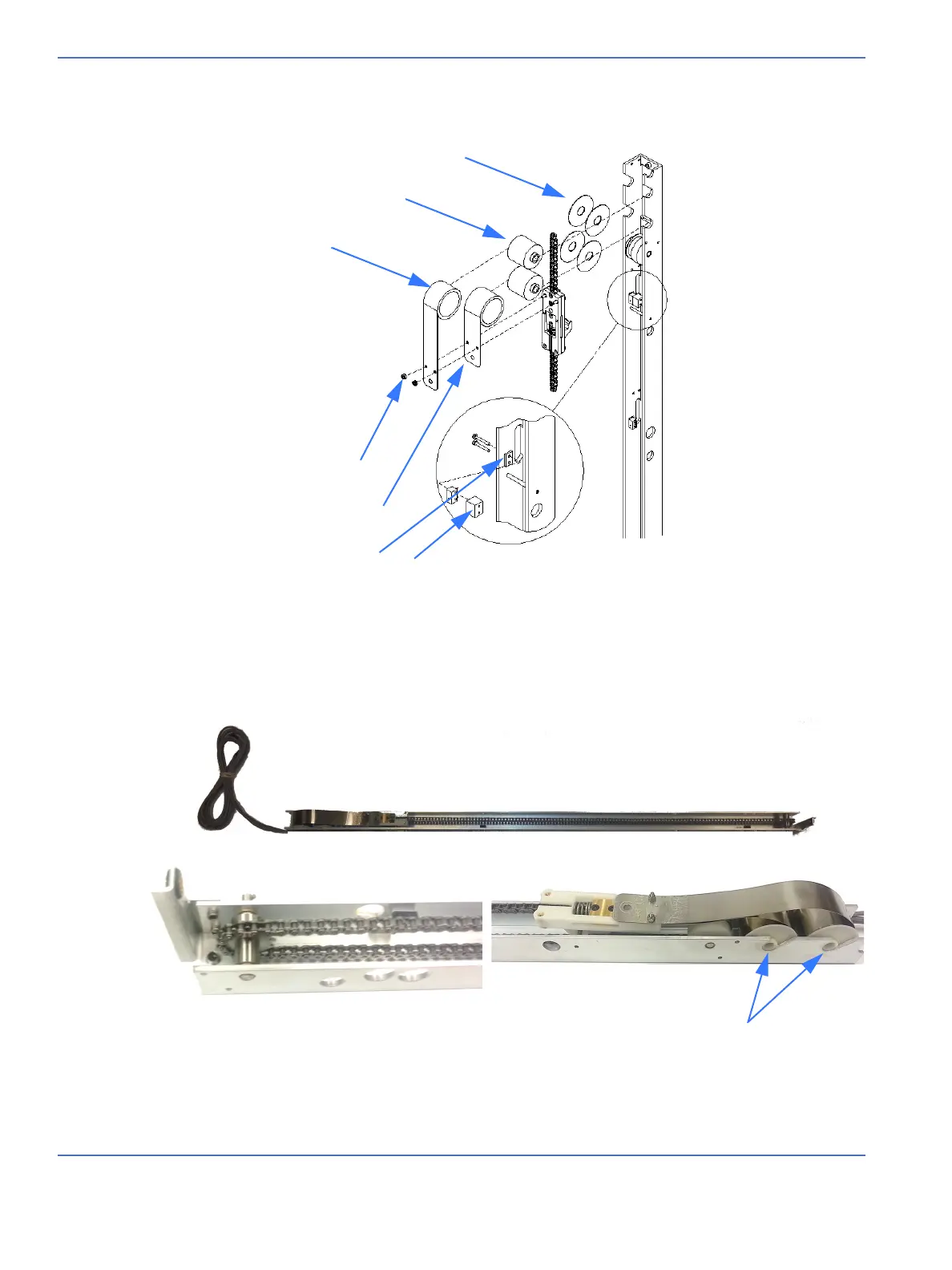

FIGURE 8-19. Belt Channel - 1 (Lift Motor Side)
1
2
3
5
6
7
Metal Lift Belt U-Channel Assembly
Parts not listed above are not orderable. Order the Metal Lift Belt U-Channel Assembly (2074711-001). This single
assembly replaces the need to replace piece parts within the assembly and is expected to perform more reliably.
When unpackaging the U-Channel Assembly be sure
to remove the two tie wraps (not shown) that hold the
bouency springs/spools in place during shipping.
2074711-001
4
