Chapter 7: Repair Procedures
Canopy Removal for Service
7-14 Service Manual
16. Screw in the rail locking screws in the oblong slot in each rail to unlock the rails. Refer to Figure 7-1.
17. Realign the canopy as described in section 7.6.1.1.
18. Using a 2.5 mm hex key and four screws, reinstall the heater housing cover, securing it to the heater
door bracket.
19. Trim and reinstall the soffit:
a. Remove the north seal.
b. Locate two inside corners of ends of the soffit (6600-1461-500).
c. Mark approximately one eighth inch (3mm) by approximately 45º cut line at the inside corners
identified.
d. Cut corners with scissors or tin snips as marked.
Warning: The OmniBed must be properly reassembled per these guidelines. Improper
reassembly of the OmniBed may result in unsafe operation of the device.

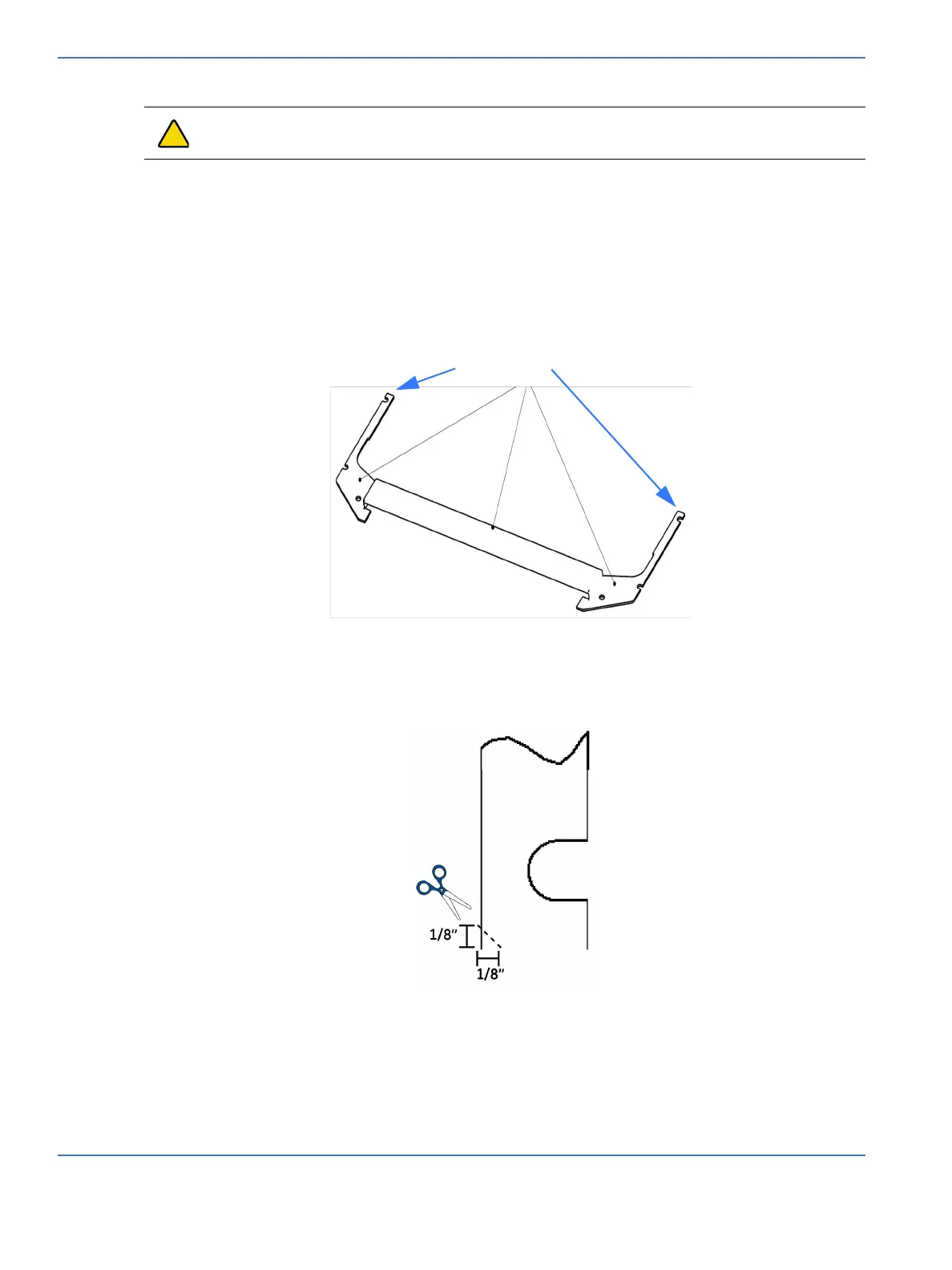

FIGURE 7-17. Soffit
Inside corners
FIGURE 7-18. Trimming the Soffit
