Chapter 7: Repair Procedures
Canopy Removal for Service
Service Manual 7-13

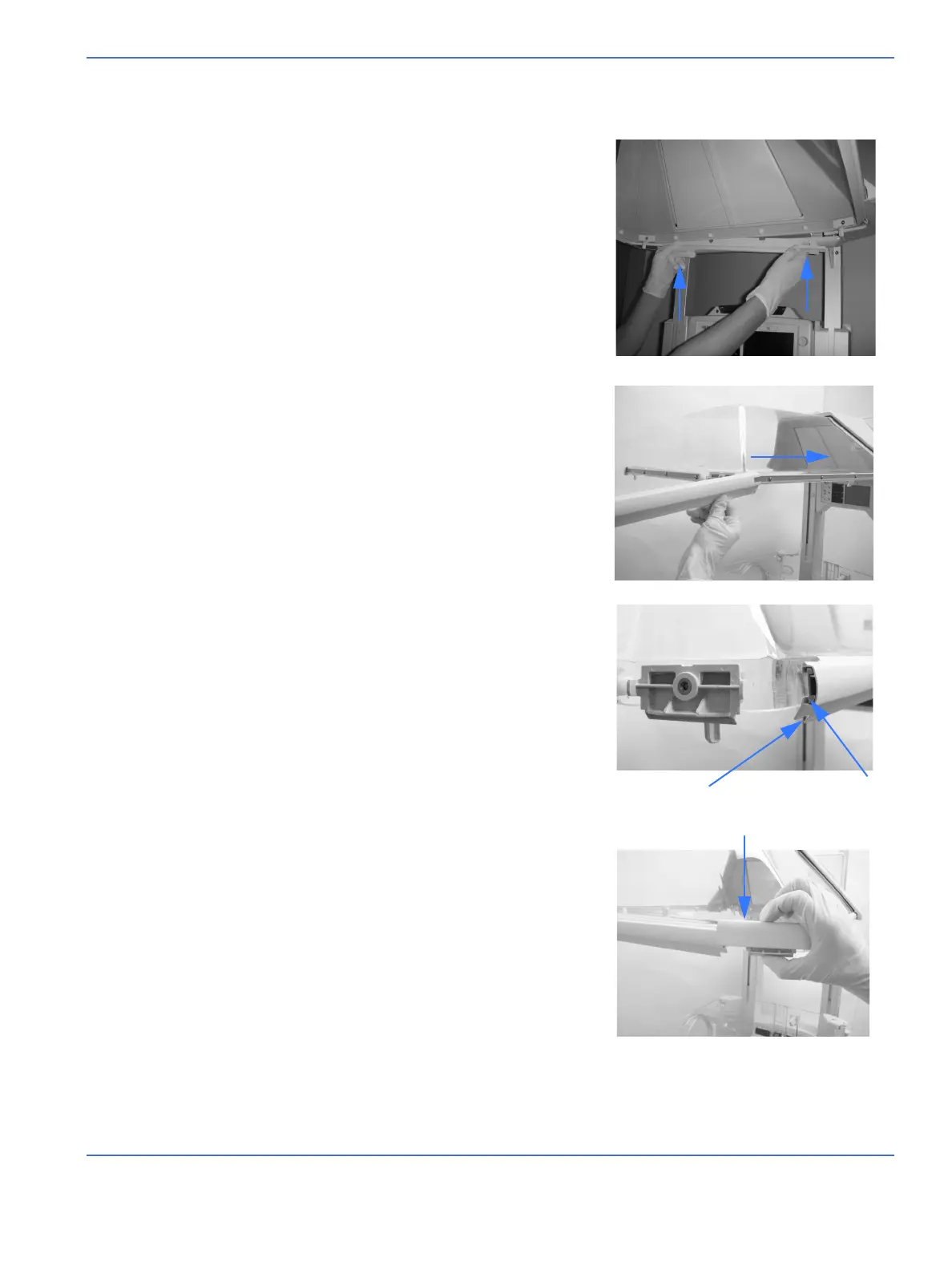

15. Make sure that all seals can be easily installed:
a. At the north end of the canopy, insert the north
notched seal in the slot in front of the red/orange
warning spacer and slide it up to snap it into place.
You should hear an audible snap from each end. It
does not matter which seal lip faces out.
b. Starting with the south end, slide the slotted end of
each long seal over a guide rail on the side of the
canopy, with the large seal lip down.
c. Slide the slotted end toward the display until it stops.
The seal should be flush with the end of guide rail.
Repeat for the remaining side.
d. Slide the short seal, large lip down, over the short
guide rail on the south end of the canopy. The seal
should be flush with ends of guide rail.
e. Select a corner cover that fits each corner and snap
it down over the corner receiver. You should hear an
audible snap. Repeat for the remaining corner.
f. Make sure that all red/orange warning indicators have been covered. Check each canopy seal
for secure engagement.
Flush with guide railLarger seal lip
