GE Giraffe OmniBed Carestation CS1 Service Manual

Chapter 7: Repair Procedures
Canopy Removal for Service
7-6 Service Manual
Note: The east side seal parts are symmetric to the west side seal parts.
9. Install side seal parts on the upside-down canopy. Start by installing all hardware finger-tight*:
a. Install the east and west seal guide rails with smooth nuts, spacer washers, lock washers, and
screws from kit, as shown in Figure 7-7. The larger lobe of each rail should be closest to the edge
of the canopy, as shown in Figure 7-9. (This indicates which way is up on each seal.) The rails have
“E” and “W” inscribed for east and west. These letters go toward the heater door cutout end of the
canopy.
b. Position the spacer washers between the rail and canopy for assembly.

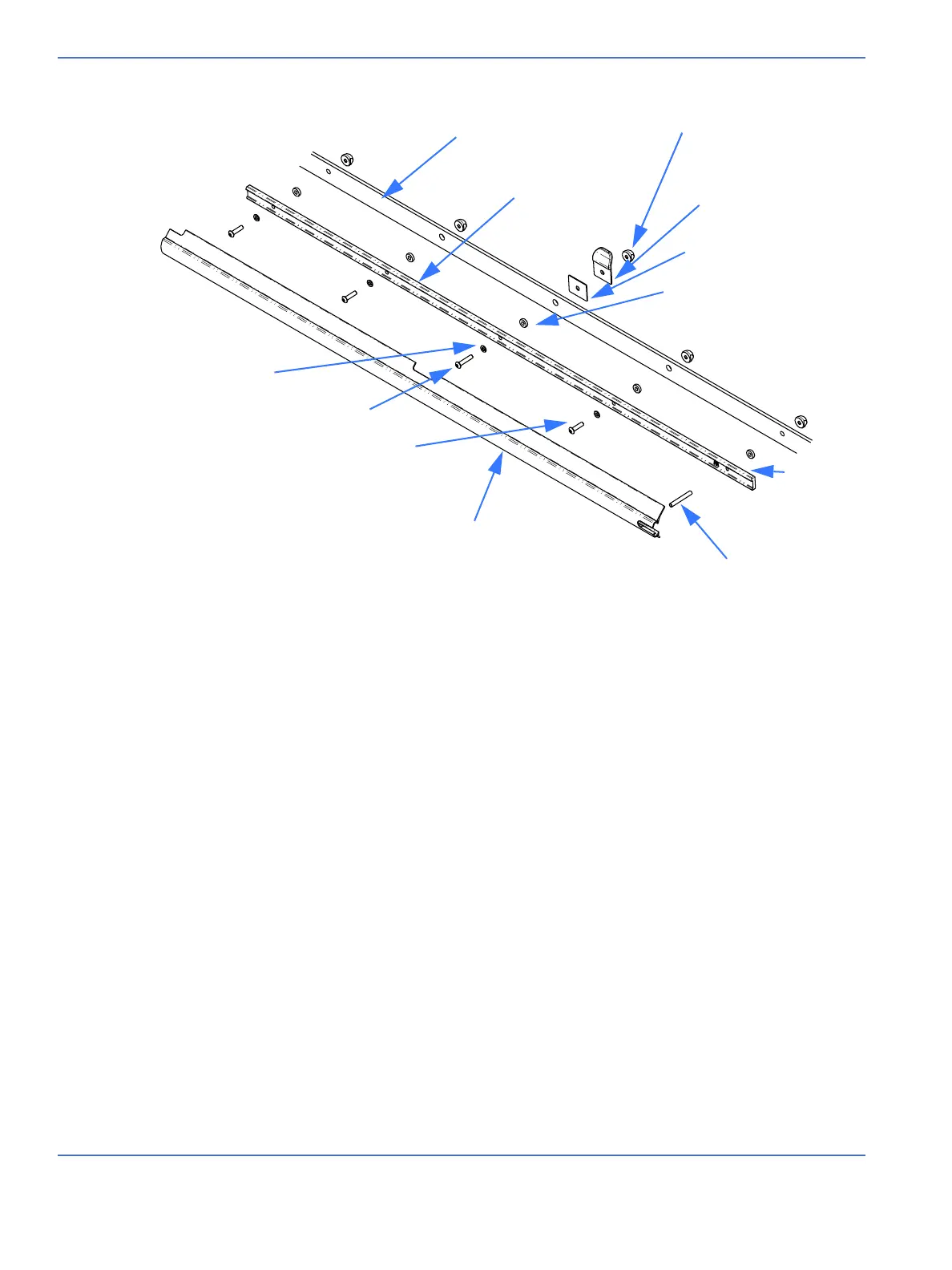

FIGURE 7-7. West Side Seal Parts
Canopy
West rail
Smooth nut
Door support
Door support gasket
Spacer washer
INSIDE OF CANOPY
Inscribed “W”
M4x30 sockethead set
screw cup point
West seal
OUTSIDE OF CANOPY
M4x16 buttonhead socket cap screw
M4x20 buttonhead socket cap screw
M4 splitlock washer
