Chapter 8: Illustrated Parts
PCB Layouts
8-72 Service Manual
8.20 PCB Layouts

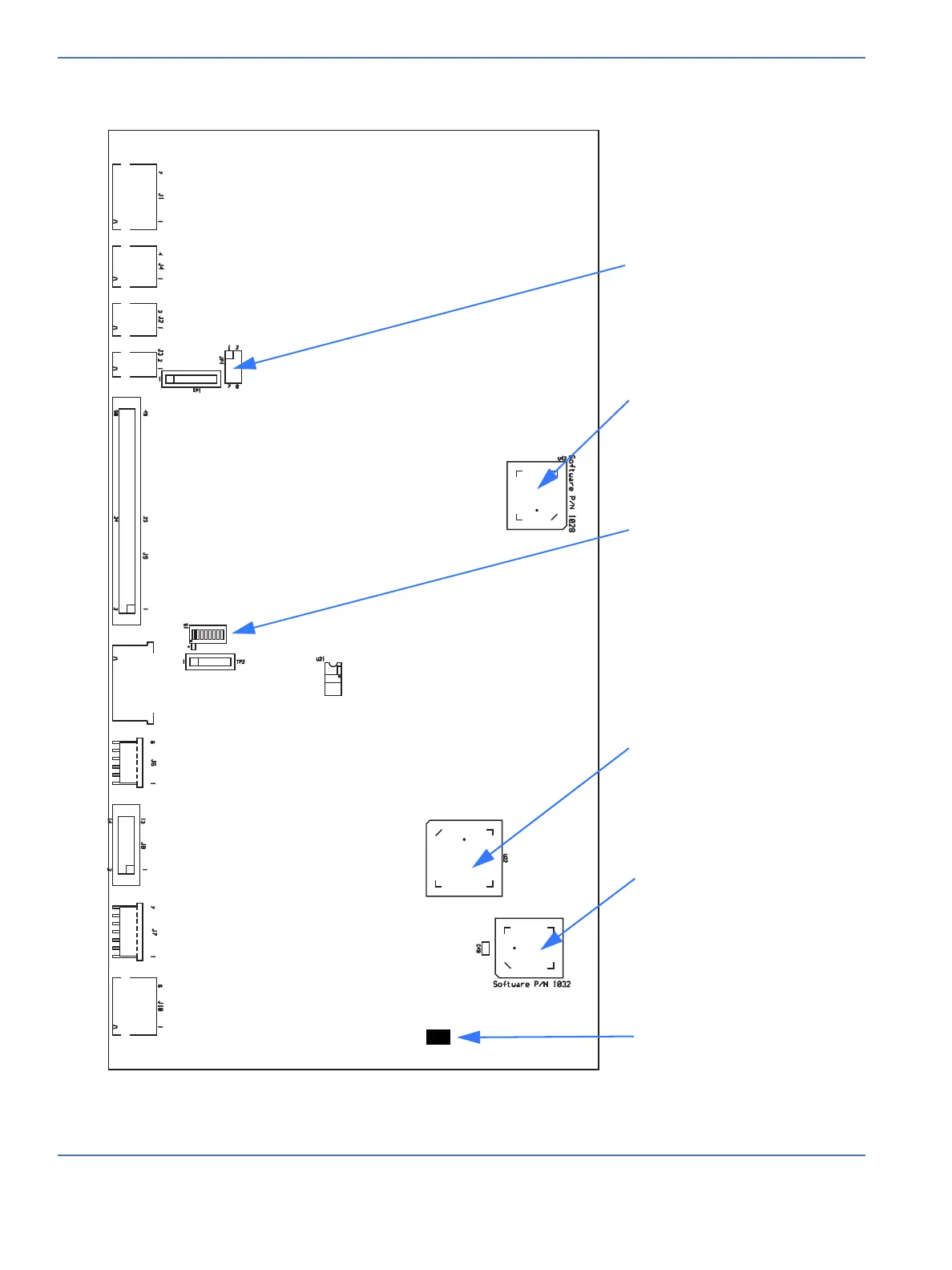

FIGURE 8-39. Control Board (2080962-001)
Calibration Jumper
6600-1226-600
Main control board software (U42)
2087684-001 Orderable part KIT
EPROM CTRL 2089261-001
Dip switch
Audio software (U22) 6600-1031-
600
Audio waveform (U18)
2075445-001
REV
123456
Control board revision
