GE Giraffe OmniBed Carestation CS1 - FIGURE 7-49. Elevating Base with Three-Shroud Assembly

Chapter 7: Repair Procedures
Lower Device Repairs
Service Manual 7-49
Main bracket casting
Back cover
Column power cable
Elevating column
Outer column
Lower mounting plate
Bed raise/
lower pedals
Lower shroud
Upper shroud
Caster (wheel)
12 mm screw
6 mm screw
Canopy pedal

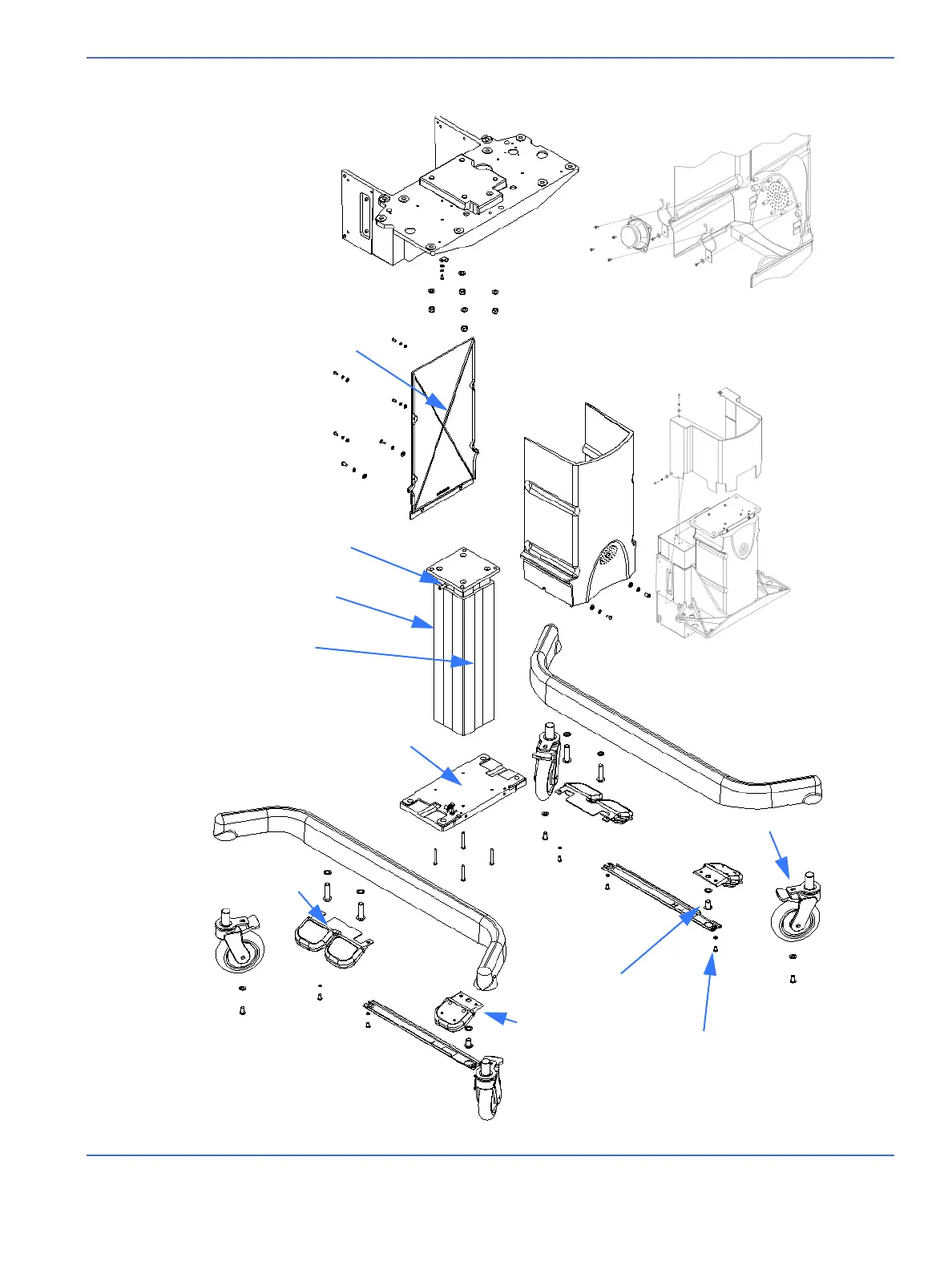

FIGURE 7-49. Elevating Base with Three-
shroud Assembly
