GE Giraffe OmniBed Carestation CS1 - FIGURE 8-28. Servo Control Oxygen PC Board

Chapter 8: Illustrated Parts
Servo Control Oxygen
8-52 Service Manual
1. Servo Oxygen PCB............................................................2080447-001
2. Card guide, black ..............................................................6600-1064-400
3. Card guide, white.............................................................. 6600-1183-400
4. Nut, M3 ..................................................................................6600-0711-403
5. Lock washer, int. tooth ................................................... 6600-0713-431
Parts Not Shown
EPROM (U6) ..........................................................................6600-0255-850
In-line fuse cable*............................................................. 2074950-001
ESU label (located on probe panel)...........................6600-2540-101
*Fuse is not replaceable; you must order cable to replace fuse.

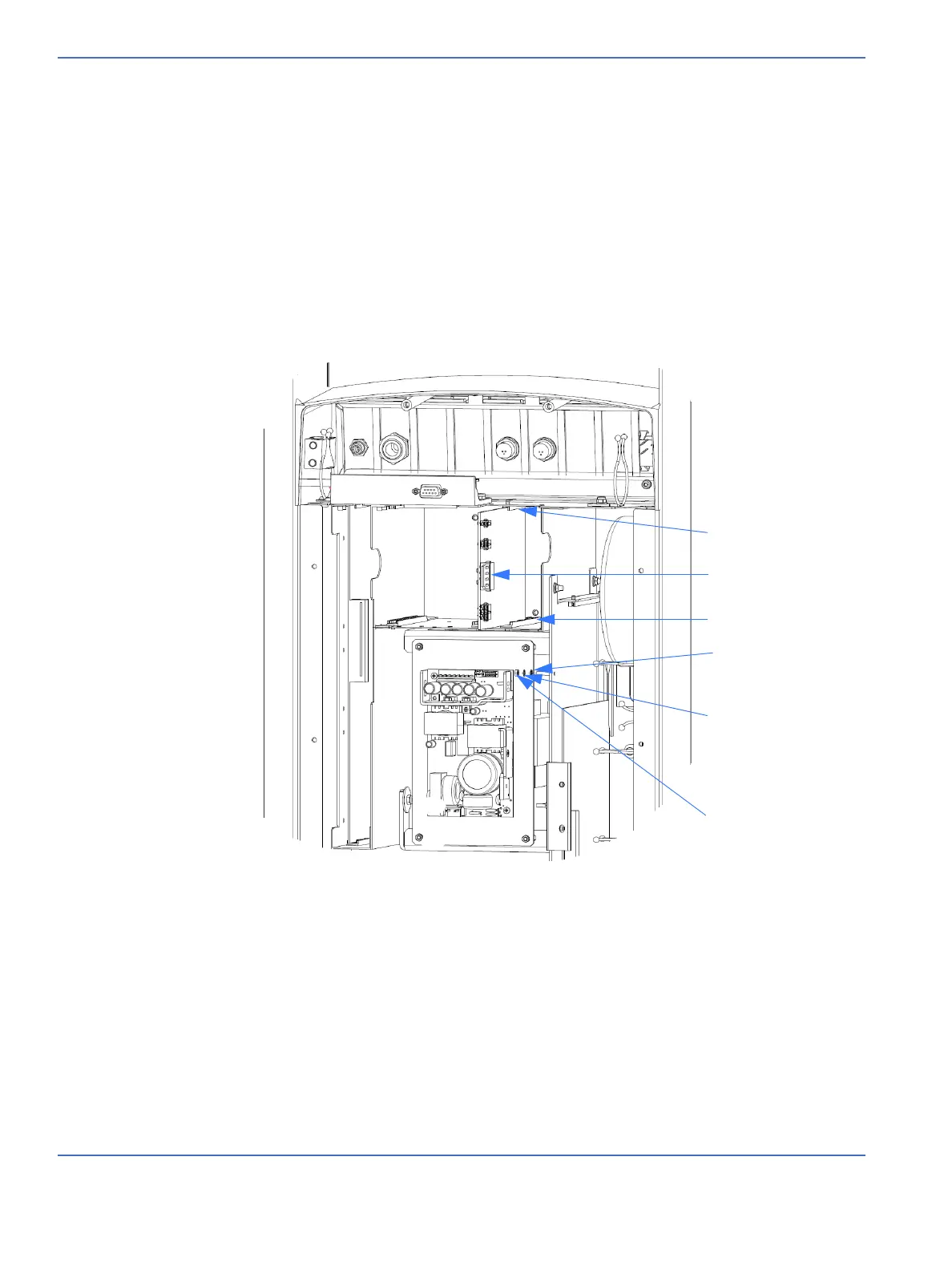

FIGURE 8-28. Servo Control Oxygen PC Board
