GE Giraffe OmniBed Carestation CS1 Service Manual

Chapter 8: Illustrated Parts
Bed and Side Panels
Service Manual 8-17
1. Front (south) wall with ventilator cut out............... 6600-0247-854
2. Front (south) wall with porthole cut out................. 6600-0247-851
3. Flat washer.......................................................................... 6600-0712-404
4. Right front (SE) wall hinge ............................................. 6600-1175-500
5. Wall hinge snap................................................................. 6600-1436-500
6. Left front (SW) wall hinge .............................................. 6600-1304-500
7. Hinge mask label .............................................................. 6600-2320-100
8. Wall hinge snap post ...................................................... 6600-1429-500
9. Corner grommet................................................................6600-1248-500
10. Front left/rear right (SW/NE) receptacle................. 6600-1466-500
11. Front right/rear left (SE/NW) receptacle.................6600-1467-500
12. Ventilator slot grommet................................................. 6600-1231-500
13. Rear (north) wall with grommet slot ........................ 6600-1109-500
14. Screw, M4 x 30 Button Head ....................................... 6600-0706-414
15. Lock washer........................................................................ 6600-0713-403
16. Flat washer.......................................................................... 6600-0712-403
17. Rear (north) wall mount cover .................................... 6600-1305-500
18. Bumper..................................................................................6600-1485-500
19. Rear (north) wall mount rod......................................... 6600-1356-500
20. Rear (north) wall mount ................................................ 6600-1428-500
21. Screw,M4.2 x 19 Pan Head........................................... 6600-0709-404
22. Screw, M5 x 12 Button Head ....................................... 6600-0706-418
23. Lock washer........................................................................ 6600-0713-404
24. Front (south) wall solid.................................................... 6600-0247-852
25. Front (south) wall with porthole cut out................. 6600-0247-851
26. Front (south) wall with iris cut out............................. 6600-0247-853
Parts Not Shown:
Oscillator (High Freq. Vent) port cover .................... 6600-0838-800
13
12
10
9

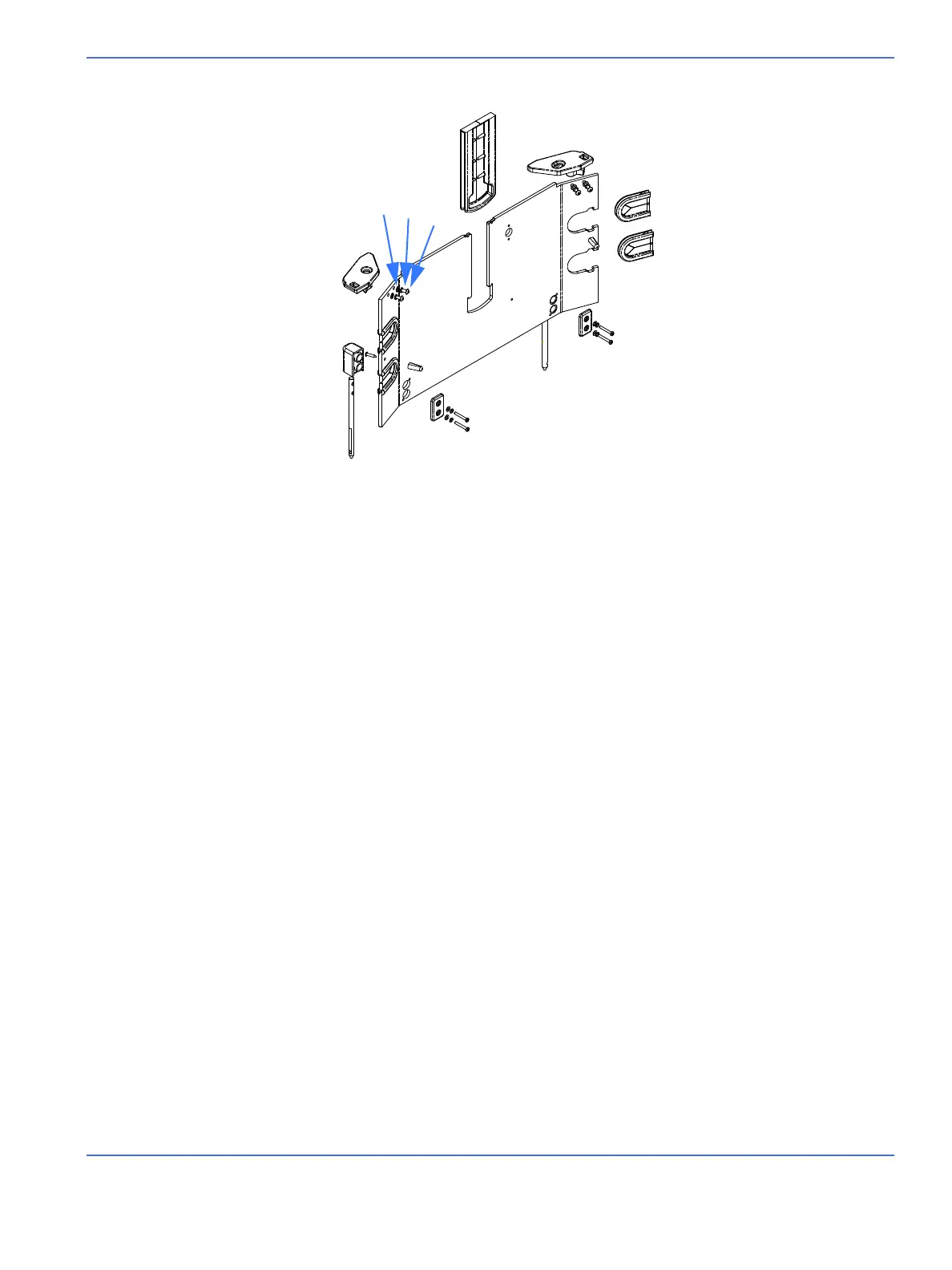

REAR WALL
16
15
14
17
19
18
20
21
11
3
23
22
