Chapter 8: Illustrated Parts

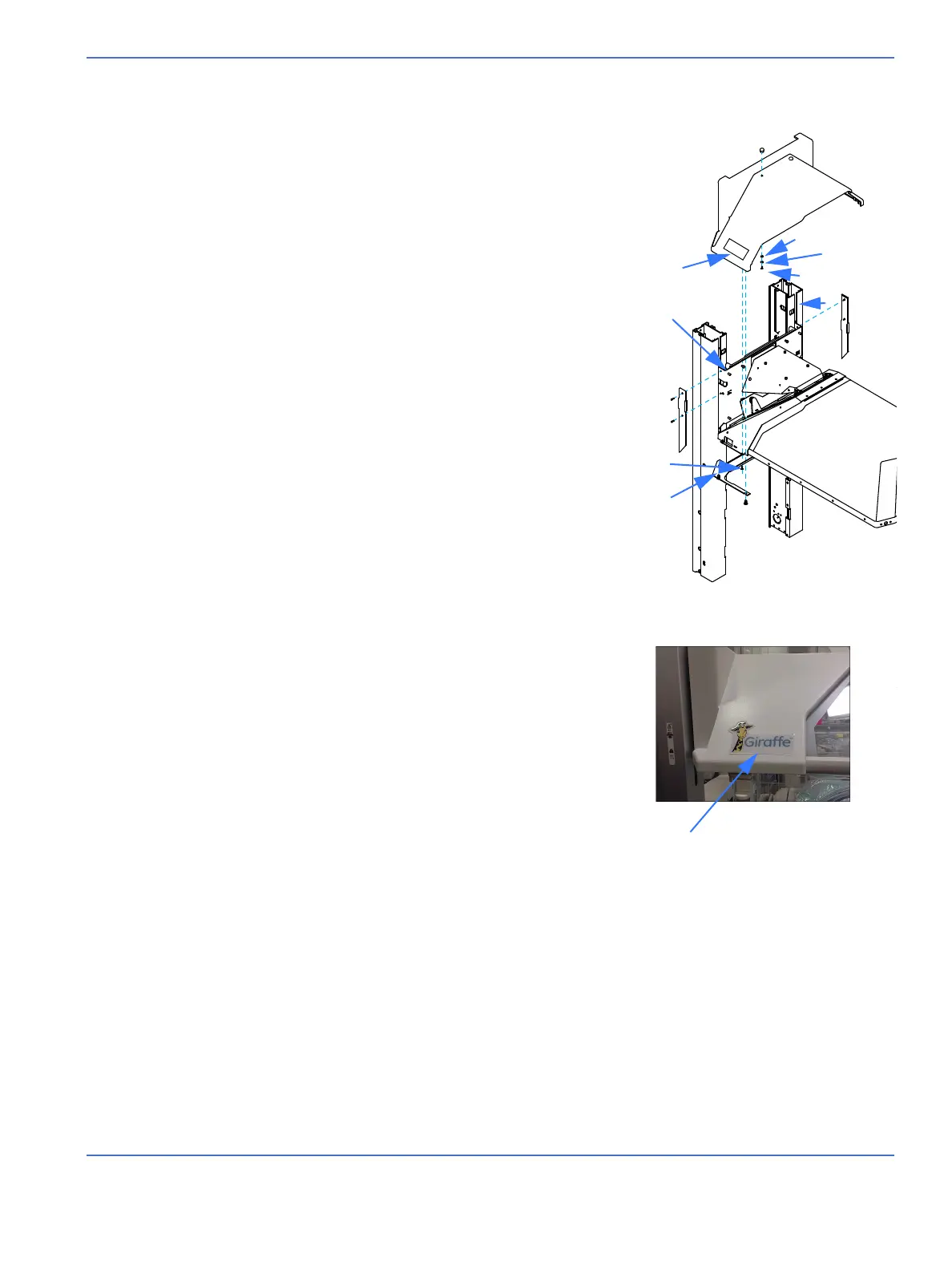

Radiant Heater and Canopy
Service Manual 8-21
1. Radiant heater bracket.................................................. 6600-1307-500
2. Bolt, M6 x 12 .......................................................................6600-0707-481
3. Nut, M6 x 12........................................................................ 6600-0711-460
4. Heater doors spring spool assembly
(includes cable) .................................................................. 6600-0857-700
Heater door cable ............................................................ 6600-0817-700
5. Screw, M4 x 10 button head........................................ 6600-0706-409
6. Split ring lock washer...................................................... 6600-0713-403
7. Branding Label ............................................................. 2082164-001
8. Nut, elastic lock, M5 x 0.8 ............................................. 6600-0714-403
9. Lock nut M3 .......................................................................6600-0714-401
10. Canopy................................................................................... M1078118
11. Ground Sticker ................................................................ 0205-4737-300
12. Hood button........................................................................ 6600-1788-500
13. Cable clamp ........................................................................ 6600-1060-400
14. Hex nut, M4 ......................................................................... 6600-0711-407
15. Star washer, M4................................................................. 6600-0713-443
16. Heater housing cover..................................................... 6600-1220-500
When ordering item 16, order item 7
17. Flat washer, M5.................................................................. 6600-0712-404
18. Split ring lock washer, M5 ............................................. 6600-0713-404
19. Screw, M5 x 12 Button head socket......................... 6600-0706-418
20. Inside cover, right..............................................................6600-1459-500
21. Soffit clip, arrow fastener ............................................. 6600-1056-400
22. Soffit........................................................................................ 6600-1461-500
23. Inside cover, left (west) ................................................... 6600-1477-500
24. Screw, M3 x 10 socket head ........................................ 6600-0706-401
25. Back plate bracket........................................................... 6600-1306-500
26. Shoulder Screw, M4 x 6.................................................. 6600-1201-400
27. Door ........................................................................................ 2066777-001
28. Spring ..................................................................................... 6600-1109-400
29. Screw, M3 x 20 button head........................................ 6600-0706-404
30. Split ring washer, M3....................................................... 6600-0713-402
31. Spacer.................................................................................... 6600-1149-400
32. Tape ...................................................................................... 6600-0110-300
33. 33. M4 Fl Washer ............................................................ 6600-0712-403
34. 34. Star Washer M4 ....................................................... 6600-0713-443
35. 35. Nut M4 ....................................................................... 6600-0711-407
36. 36. Hood Rollbar nut .................................................... 6600-1274-500
37. 37. Star Washer M5 ........................................................ 6600-0713-433
38. 38. Nut M5 ......................................................................... 6600-0708-408
To Next Page
