GE PANDA Service Manual

Chapter 6: Illustrated Parts
Electronics Enclosure
Service Manual 6-7
(Continued from previous page)
12. Ground Potential post ..............................6600-0337-400
13. Color label, Pot Eql .....................................6600-0338-400
14. Screw 4-40x.625 .........................................6600-1289-400
15. RS-232 Isolation plate ..............................6600-0940-400
16. Lock washer,
M6 X 6.4ID, 0.7 Ext th.................................6600-0713-445
17. Lock washer, 6.5MM Pot Eql ..................6600-0339-400
18. Nut, M6 Ptl Eql..............................................6600-0340-400
19. RS-232 wire harness.................................6600-1564-700
20. Standoff
3/16 hex .5L 4-40 FF..................................6600-1286-400
21. Alarm speaker..............................................6600-1563-700
22. Circuit breaker 3.5 AMP ...........................6600-0562-603
23. Nut, M4 X 0.7 ................................................6600-0711-407
24. Lock washer,
M4 X 4.3ID, 0.5 Int Tooth..........................6600-0713-432
25. Outlet panel...................................................6600-2154-500
26. Mains switch 230V 9A ..............................6600-1014-601
Mains switch 115V 12A............................6600-1014-602
27. Connector, IEC320-C14 inlet,
snap in........................................................................M1100425
28. Connector, Outlet, snap-in ....................6600-0583-600
29. Rubber Bumper 1/4”
(used with Volex and Feller
brand cords) ............................................................M1128306
Hood Cover Button.............................6600-1788-500 M5
flt washer................................................6600-0712-404 M5
M5 splt lck waster...................................... 6600-0713-404
M5 X10 btn hd scr
(115V, 60HZ units, when used
SUN FAI brand cord).................................. 6600-0706-417
Rubber bumper 1/8”
(All other units, including ICS, Interpower, and
Electri-Cord)..................................................6600-1161-400
30. Power cord retainer
(includes label)........................................................M1118359
26
25
27
28
29
30
24
23
22
12
13
14
15
16
17
18 19
20
2
3
4
21
3
2

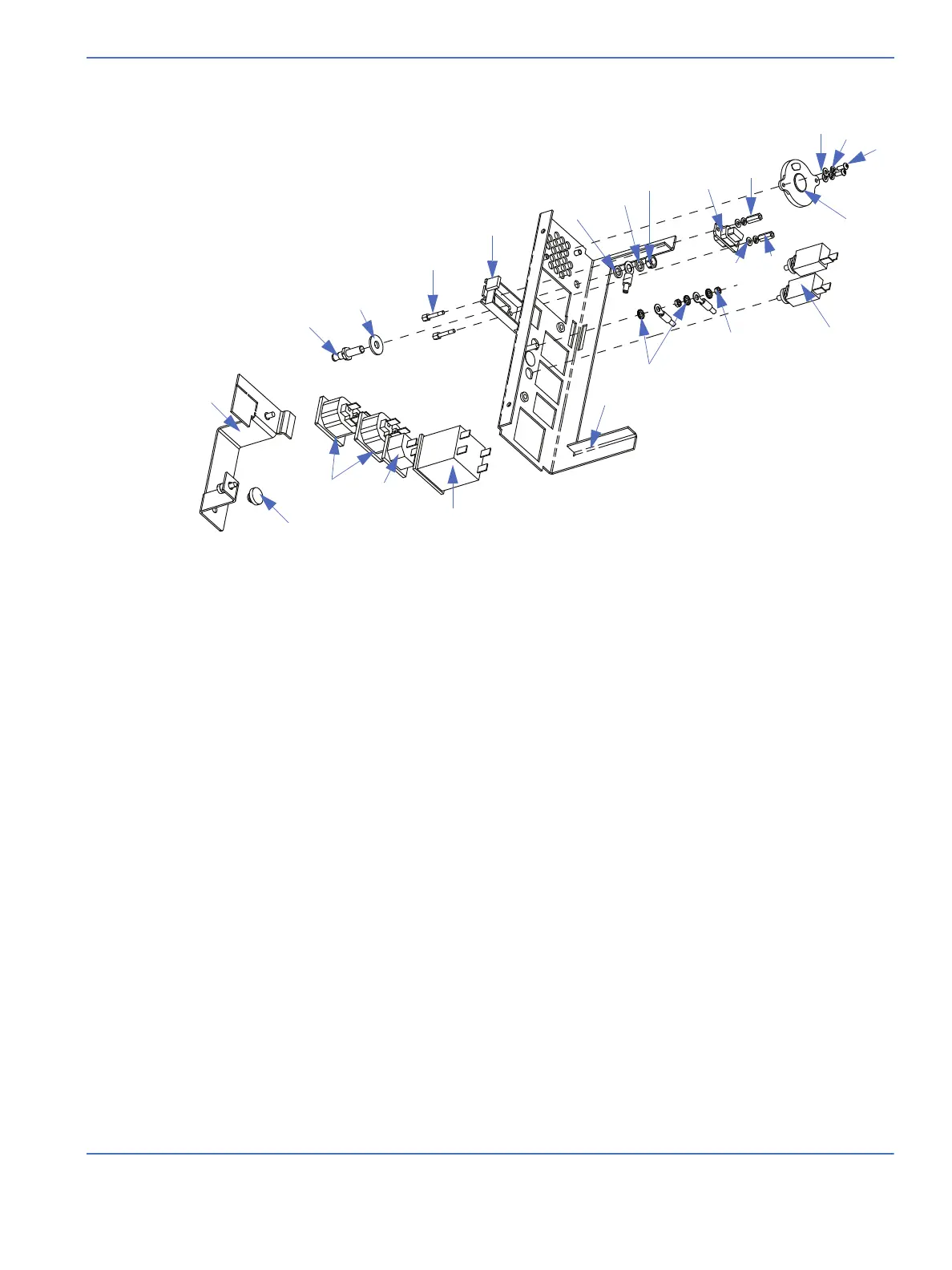

FIGURE 6-5. Power Board and Outlet Panel
Note: To identify a particular cord brand, look for the name or trademark logo stamped into the plug
and/or the connector.

GE PANDA Specifications

General

Type	Infant Warmer
Manufacturer	GE Healthcare
Control Modes	Manual, Servo
Integrated Scale	Yes
SpO2 Monitoring	Optional
Bed Tilt	Yes
Heater Type	Ceramic
Alarms	Power Failure
Power Requirements	100-240 VAC, 50/60 Hz
Model	PANDA
Resuscitation Options	Optional
Skin Temperature Probe Accuracy	±0.3°C
