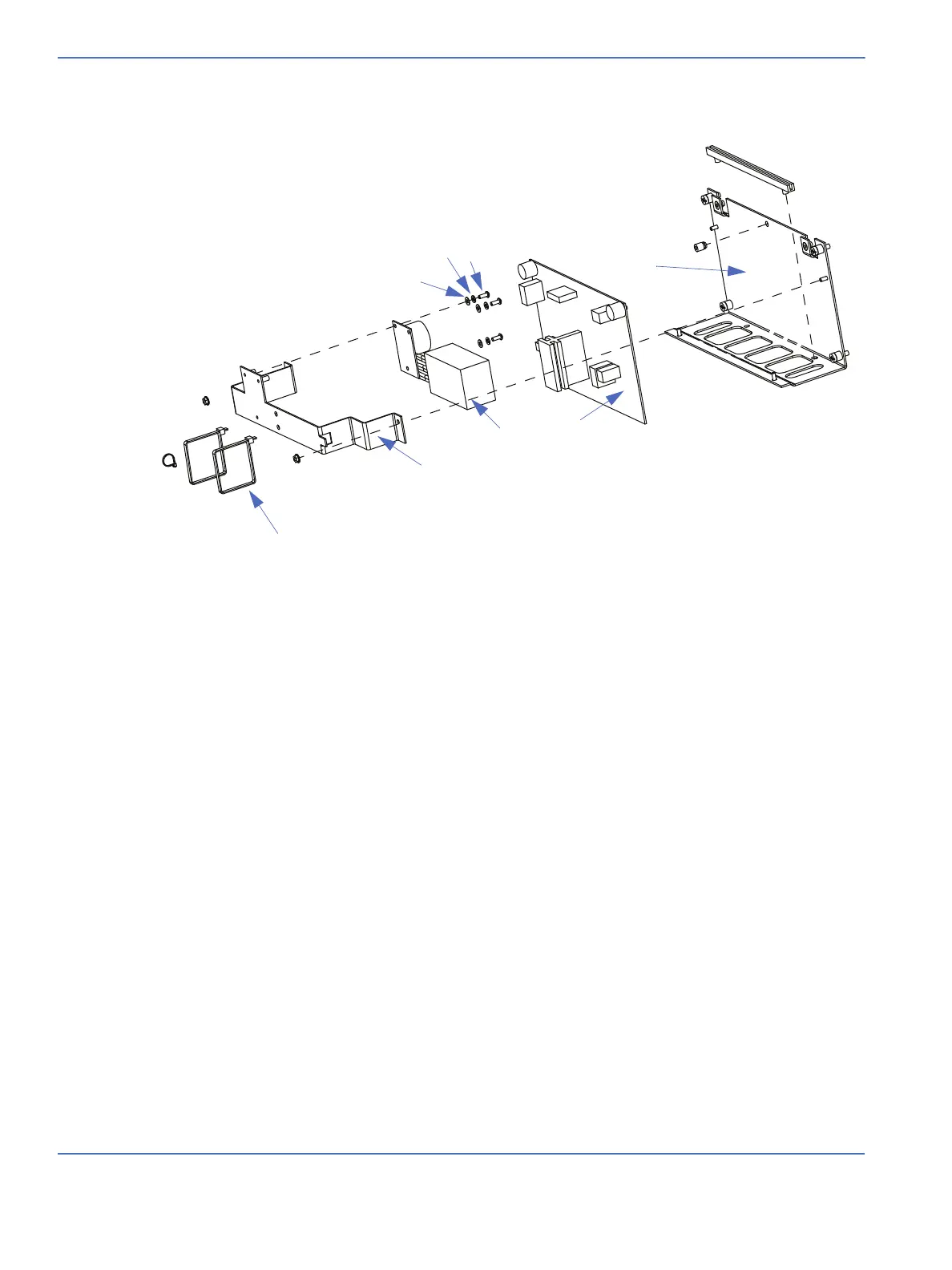

FIGURE 6-4. Power Board and Outlet Panel
1. KEPS nut, M3 ...........................................................M1074118
2. Washer, M3 X 3.2 ID, 0.5 .......................... 6600-0712-402
3. Split ring washer, M3 X 3.1ID, 0.8 ........ 6600-0713-402
4. Screw M3 X 8 Btn Hd ................................ 6600-0706-405
5. Spacer, stacking.....................................................M1083992
6. Card guide, 6 ...........................................................M1079769
7. Power brd panel.....................................................M1109625
8. Power board......................................................2080440-001
Fuse kit*.....................................................................M1118329
9. Halogen transformer, 115V........................2065752-001
Halogen transformer, 230V........................2065756-001
10. Halogen transformer mntg brkt.....................M1073739
11. Cable tie...........................................................6600-0364-400
* Includes 10 pcs 3.15 A, 10 pcs 2A, 5 pcs. 6.3A and 5 pcs. NANO2 2A
