Appendix E: Installing Wall Mount Units
Wall Mount Bracket Installation
Service Manual E-5
Note: When a wall mount bracket is replaced, make sure to transfer the warmer unit serial number on to
the blank label provided on the new bracket.
Note: The screws provided (3/8 - 16 UNC, 2 1/2” long) are for installations in 1/2” or 5/8” thick drywall. For
applications involving double thicknesses of drywall, longer screws will be required. To properly
mount the warmer, at least 2 screw threads must be engaged.
Call out Description Orderable Service Part Number
1 Toggler anchor bolt
6600-0413-400
*
* Replacement parts are also orderable through Bracket FRU Kit and Bumper FRU Kit.
Refer to section 6.8 for details.
2Flat washer
6600-0173-400
*
3 Split lock washer
6600-0440-400
*
4 Hex head screw
6600-0414-400
*
5 M6 screw with captive washers M1110521

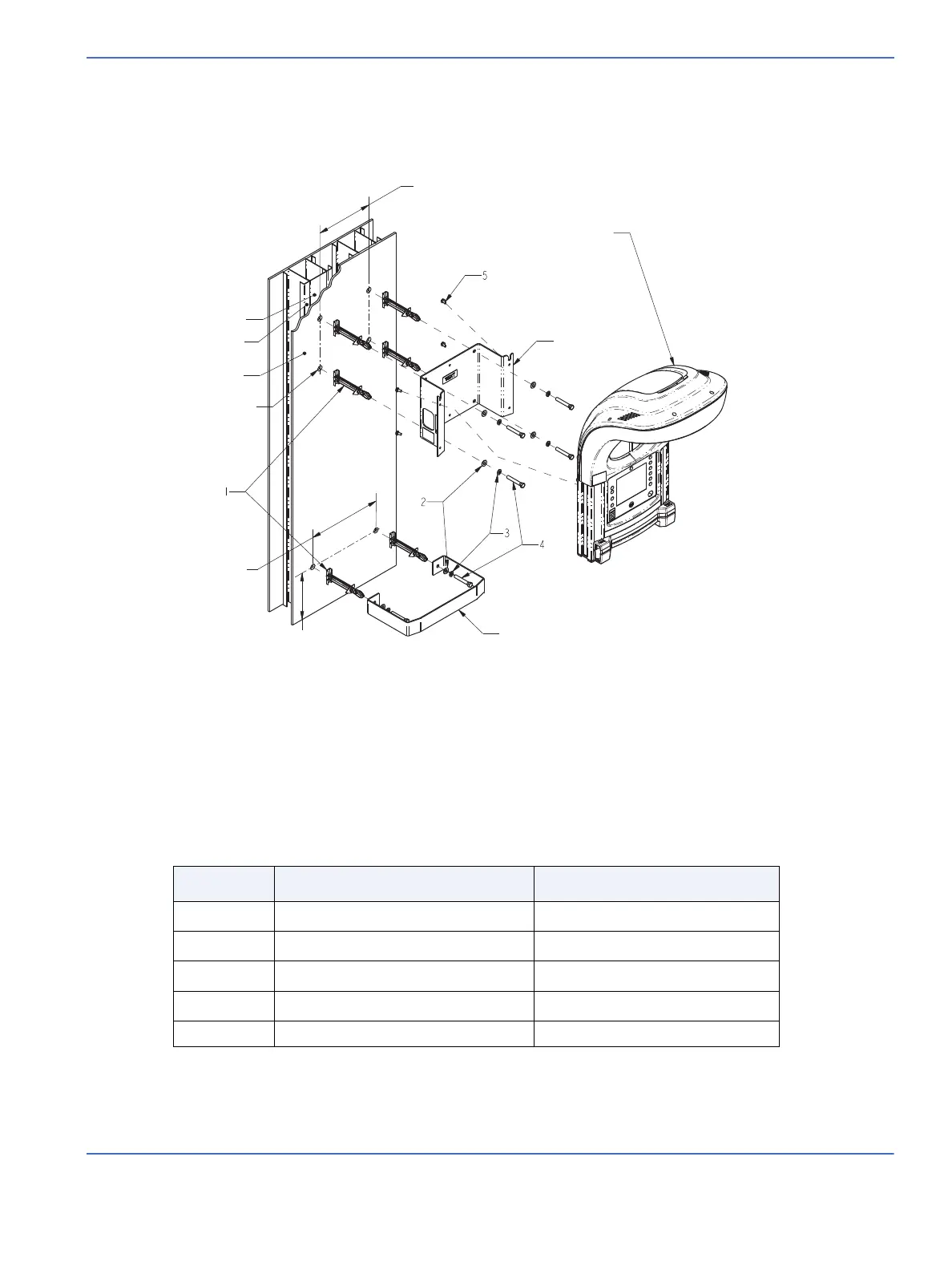

FIGURE E-4. Wall Mounting
WALL MOUNT
BRACKET
7"
(17.8 cm)
WALL BUMPER
11"
(28 cm)
WALL MOUNT WARMER SYSTEM
8.5" O.C.
(21.5 CM)
TRACK
STUD
DRY WALL
ø 3/4" HOLE
(ø 1.9 cm)
