Appendix E: Installing Wall Mount Units
Wall Mount Bracket Installation
E-4 Service Manual
3. Use a ¾” (19mm) diameter metal cutting hole saw or drill four holes through the dry wall and through
metal tracks behind the drywall.
4. Perform steps A through C to secure the four Toggler® anchor bolts (6600-0413-400) in the wall (See
Figure E-3).
a. Hold the metal channel flat alongside the plastic straps and slide the channel through the hole in
the wall and track.
b. With one hand, hold the ring so the metal channel rests flush behind the wall. Slide the plastic cap
along straps with the other hand until the flange of the cap is flush with the wall.
c. Place your thumb between the straps, and push from side to side, snapping off the straps level with
the flange of the cap.
5. Mount the wall mount bracket on the wall with the flat washers(6600-0173-400), split ring washers
(6600-0440-400) and screws (660-0414-400) provided (See Figure E-4). Tighten the screws with
approximately 80 lb/in of torque.
Warning: When installing the wall mount unit, to achieve adequate structural
strength all four holes must engage tracks.

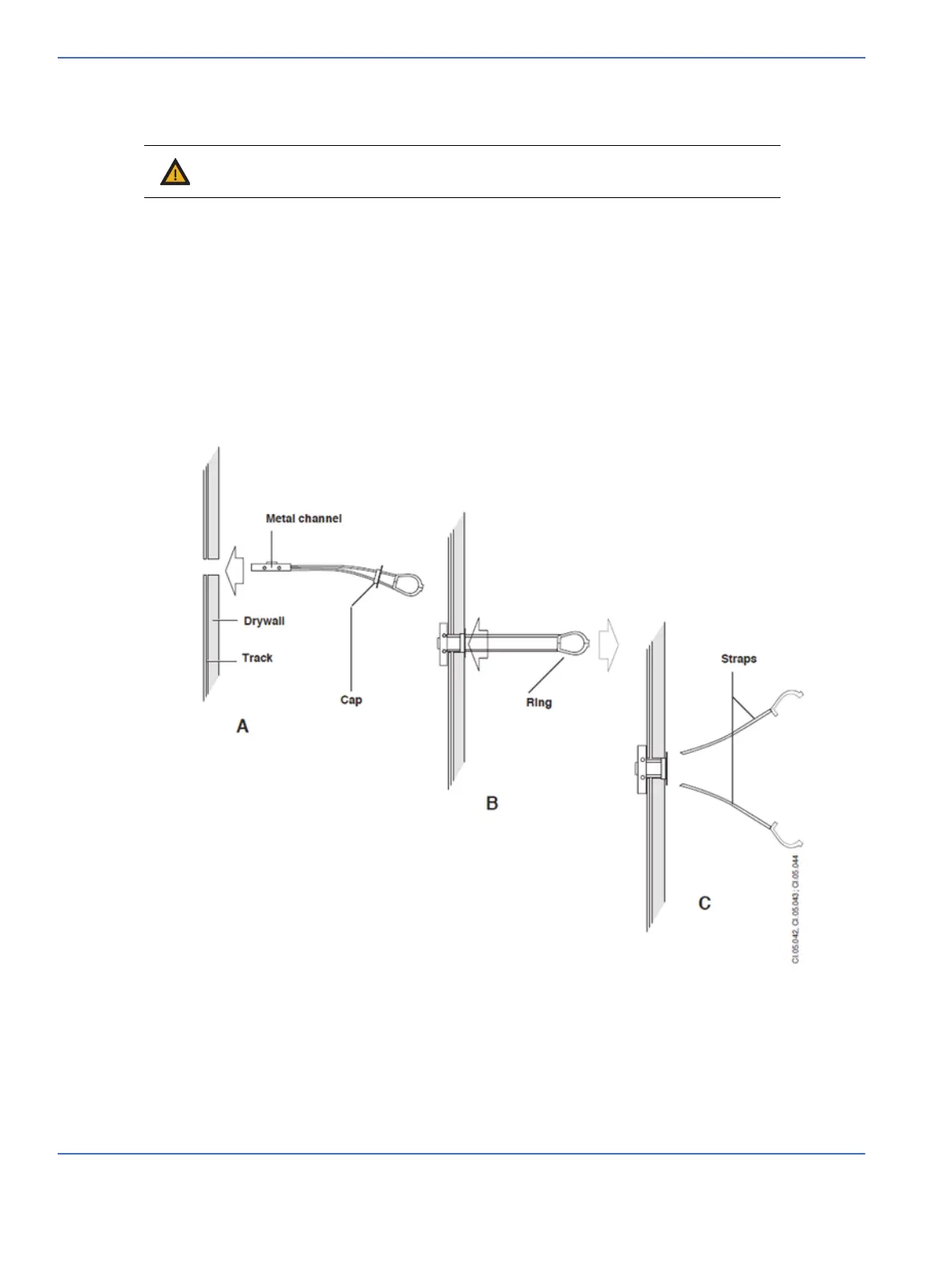

FIGURE E-3. Anchor Installation
