GE Vivid i

Scanning Modes
94 Vivid i User’s Manual
2378958-100 Rev. 02
PW and CW Doppler
PW and CW Doppler overview

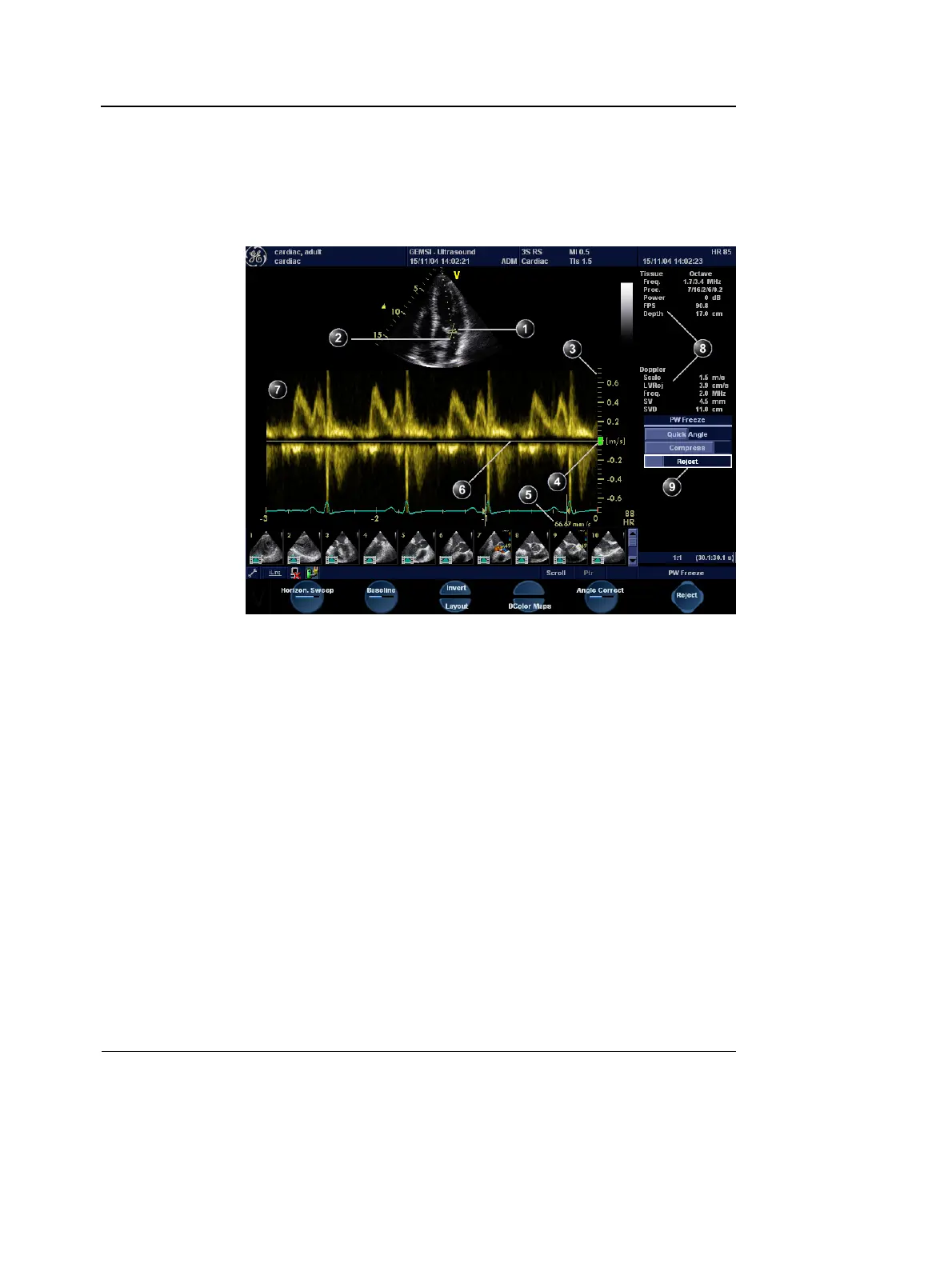

Figure 3-6: The PW/CW Doppler Mode screen
1. Sample volume (PW only)
2. Angle correction marker
3. Velocity scale
4. Low velocity reject
5. Nyquist velocity
6. Doppler baseline
7. Frequency scale (optional, see page 288)
8. Status window
9. Soft menu
