Probe orientation
Some probes are provided with a green light (LED) orientation
marking near their head (see Figure 10-1). Probes which do
not have a LED have an indentation (notch) for orientation on
the probe housing. This LED, or notch, corresponds with the V
mark on the scanning screen. The V mark indicates the
orientation of the probe to the scan.

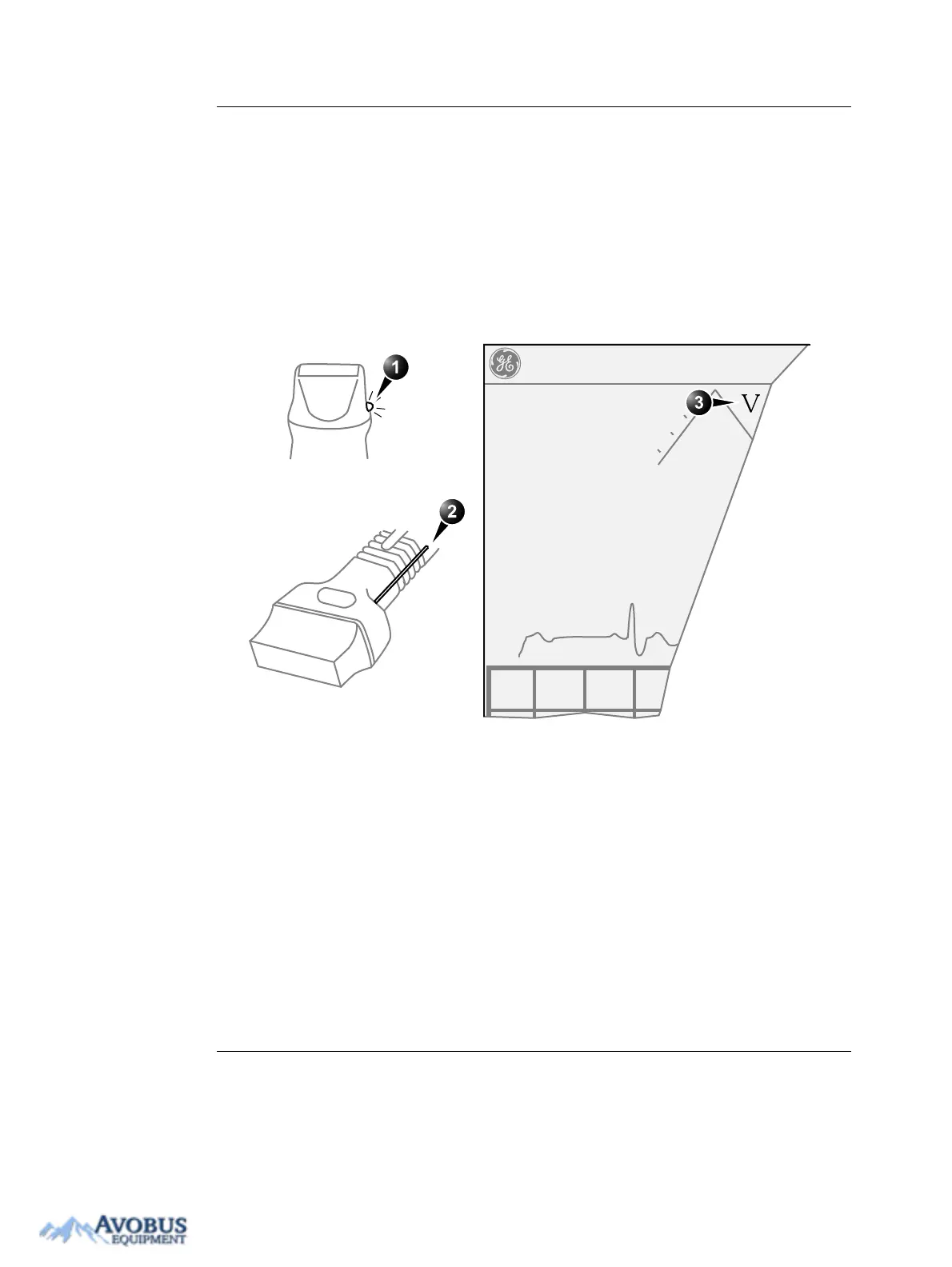

Figure 10-1: Orientation marking on probe and on screen
Probe labelling
Each probe is labelled with the following information:
• Name of distributor and manufacturer
• Operating frequency
• Model number
• Probe serial number
• Year of manufacture
1. LED
2. Notch
3. V-mark on screen: indicates the orientation of
the probe to the scan.
