Basic scanning operations
Vivid i User’s Manual 63
2378958-100 Rev. 02
Ejecting removable media
Do not eject the CD
using the button on
the CD drive.
1. Press ALT+E to eject the disk.
The Eject device menu is displayed (Figure 2-7).

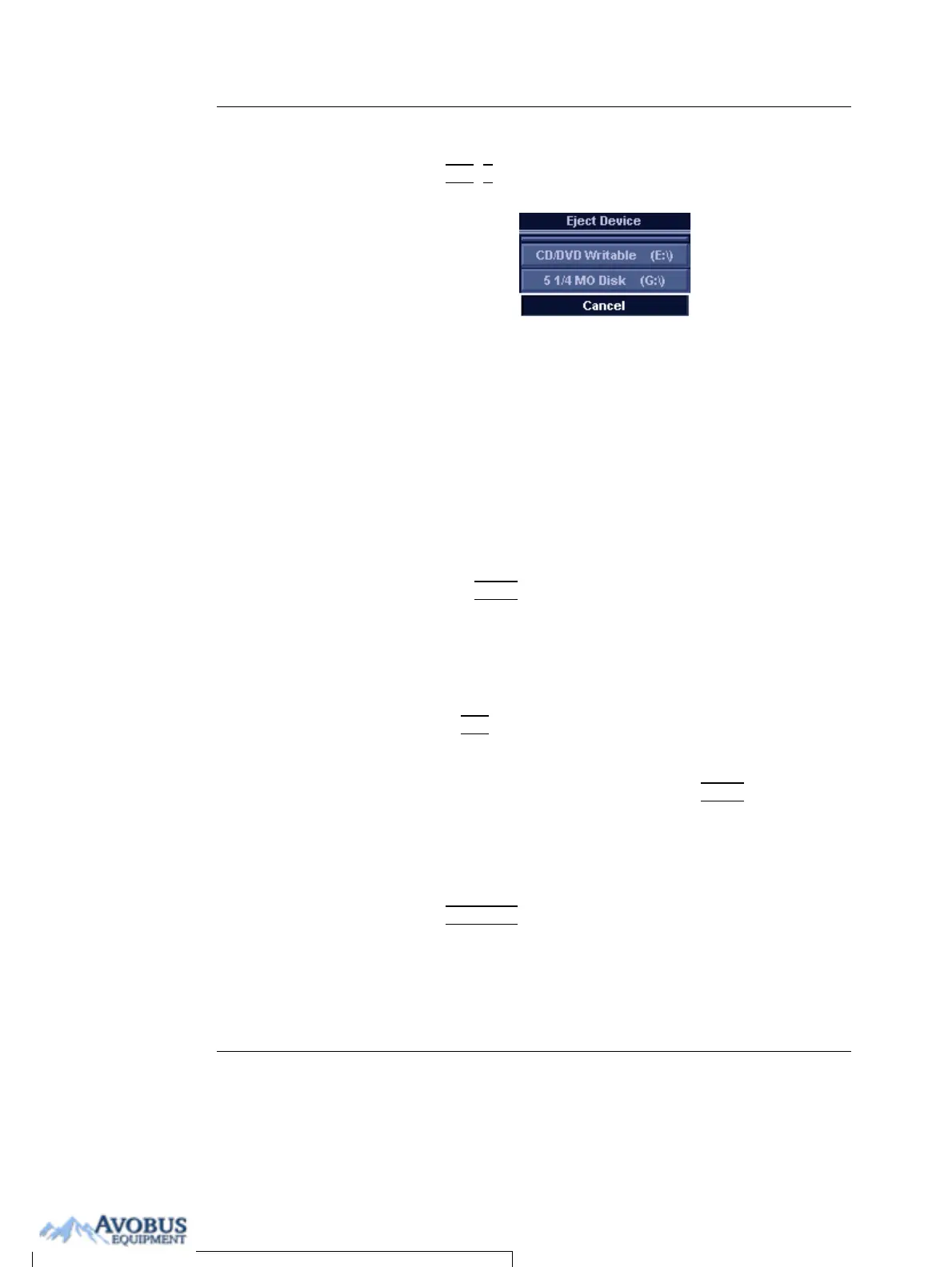

Figure 2-7: The Eject device menu
2. Select the relevant media.
The selected media is ejected.
Zoom
The Vivid i supports Variable display zoom. The Display zoom
magnifies the image display in both frozen and live 2D,
M-Mode and combined modes with Doppler.
To Magnify an image
Zoom is available in
live and replay.
1. Press the ZOOM button. The resulting magnified image
appears in the acquisition window while the un-magnified
image is displayed in the control window showing the
outlined zoom region.
2. Use the Trackball to position the zoom area over the
desired portion of the image.
3. Use the
SET button to toggle between Zoom-Scale and
Zoom-location (panning). Both Scale and Pan are
controlled by trackball.
4. To turn off the Display zoom, press the
ZOOM button again.
Performing measurements
To perform measurements:
1. Press MEASURE to enter the Measurement mode.
Refer to page 109 for further information.
