The Scanning screen

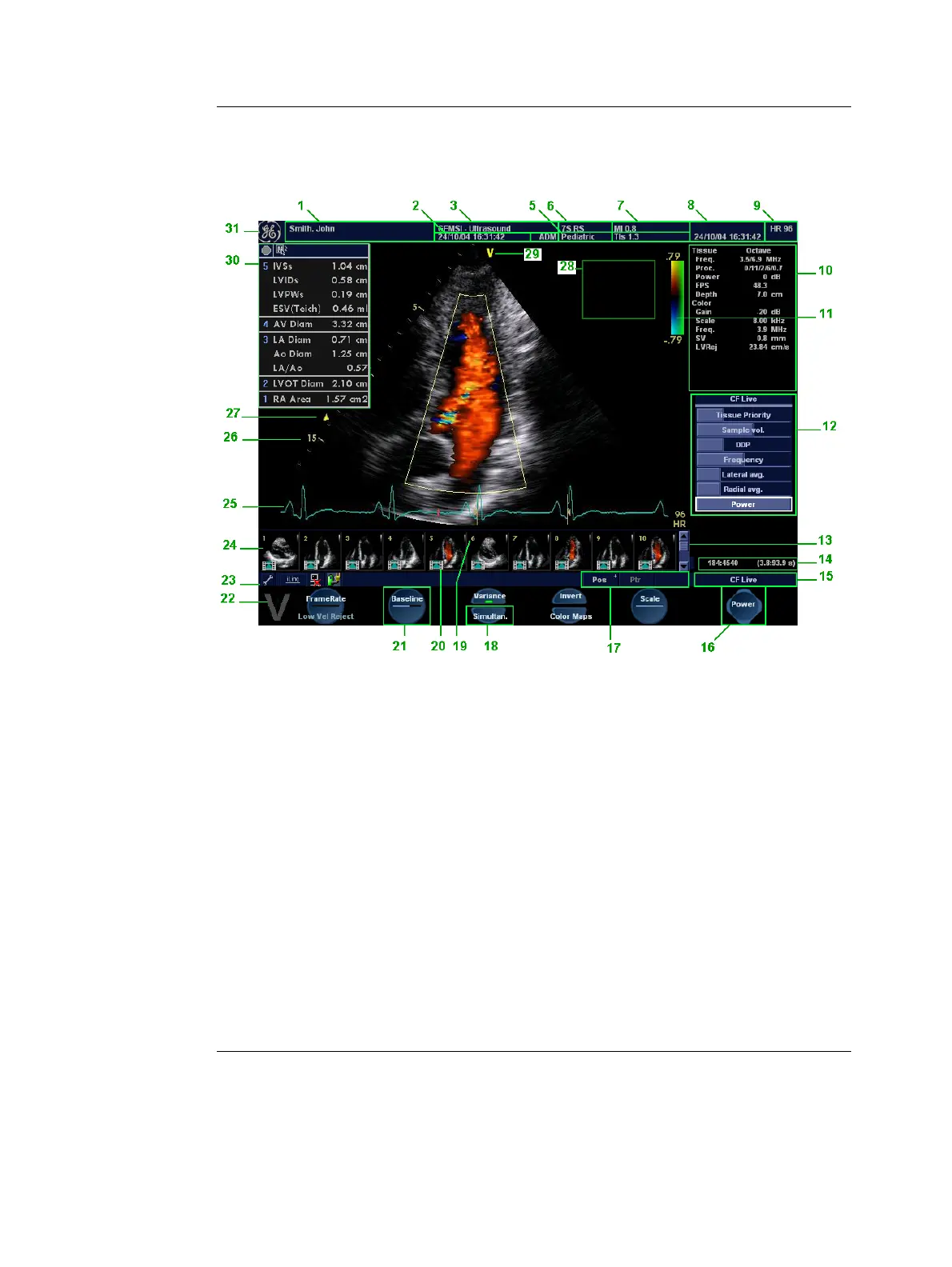

Figure 1-7: The scanning screen
1. Current patient data
2. Date & time of original image
3. Institution
4. Operator ID
5. Application & Temperature indicator for TEE
probe
6. Probe
7. Mechanical & Thermal Index
8. Current date & time
9. Heart rate
10. Parameter window - all modes
11. Greyscale/Color bar
12. Soft menu window
13. Clipboard navigator
14. Cine progress bar
15. Current menu name
16. Soft menu control button
17. Trackball assignment, Service and iLinq, Caps
on/off
18. Soft menu toggle button
19. Clipboard image number
20. Loop icon
21. 4-way soft menu control
22. Watermark area for screen calibration
23. Prompt/Status information
24. Clipboard
25. Heart rate
26. Depth scale
27. Focus marker
28. TEE Scan plan indicator
29. Probe orientation marker
30. Measurement result table (measurement mode)
