Measurement and Analysis
130 Vivid i User’s Manual
2378958-100 Rev. 02
• Above, Below or Both to select the spectrum to perform
the calculations on, i.e. above or below the baseline or
both.
• Max and/or Mean to display max and/or mean velocities.
5. In the Modify Calcs menu, select the measurements and
calculations to be displayed in the Measurement result
table.
6. Press Save as default to set the selected calculations to be
default when a new study or exam is started.

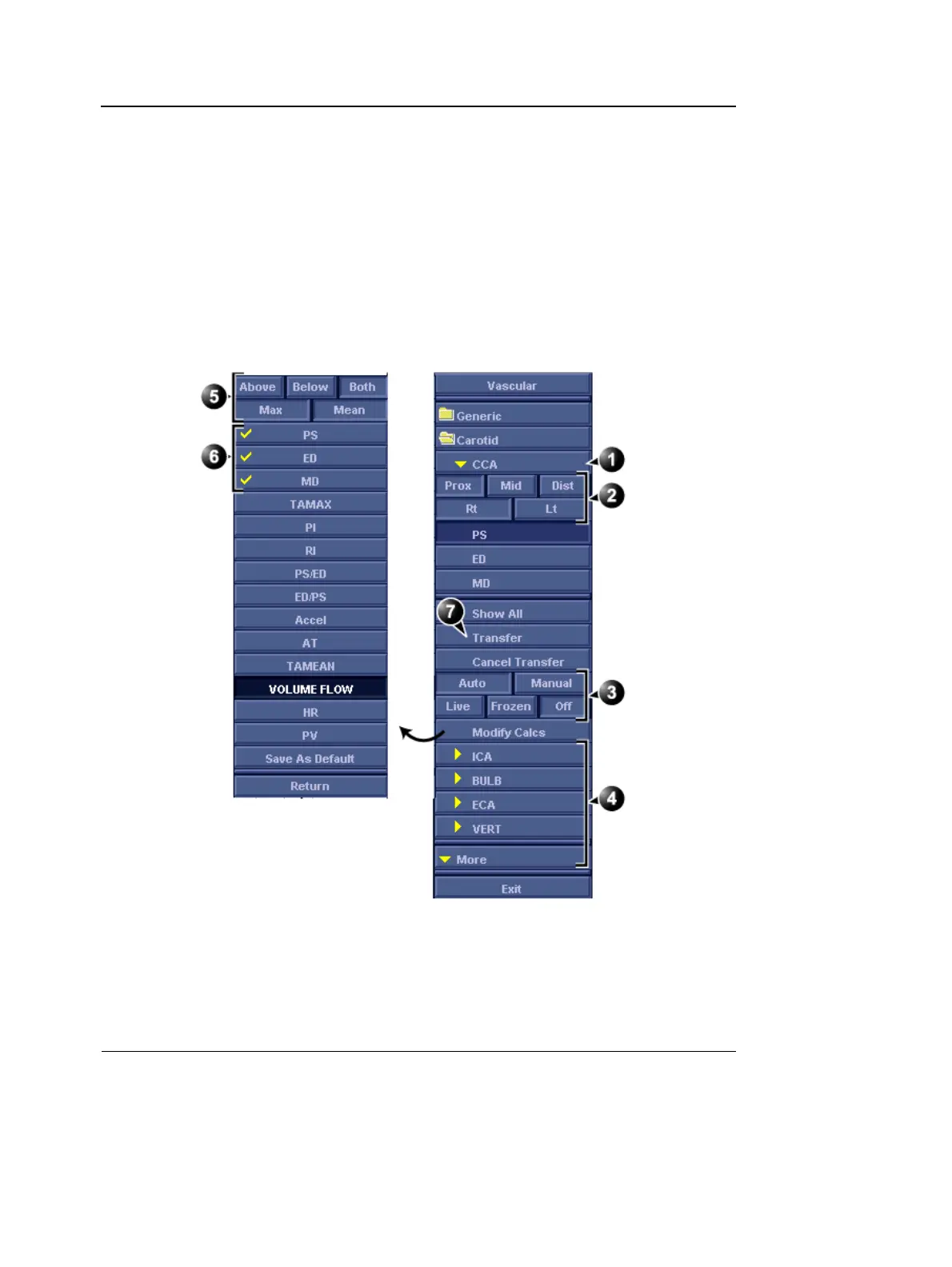

Figure 6-6: Vascular measurement menu (example)
1. Selected vessel
2. Vessel location parameters
3. Manual/auto calculation controls
4. Other vessels
5. Trace parameters
6. Selected measurements and calculation to
appear in the Measurement result table.
7. Assign measurement and calculation
