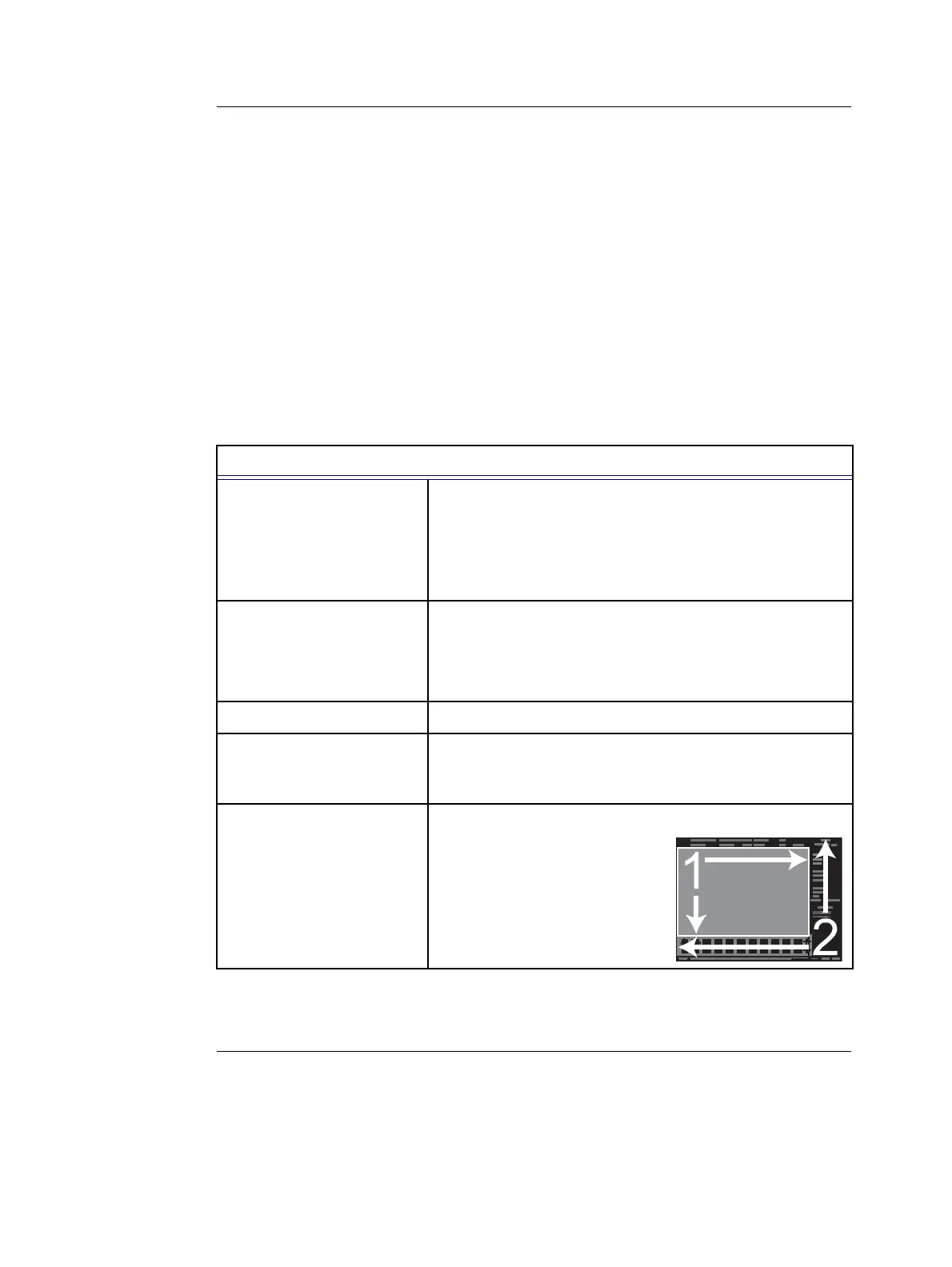

The image configuration parameters
The table below gives a list of the configuration parameters.
To configure the Print or Alt. Print key
1. In Button field select Print or Alt. Print.
2. Select an output device in the available outputs field and
press the Right arrow button to assign the service to the
dataflow.
3. Press Properties.
The Properties window is displayed.
4. Adjust the device specific parameters as desired.
Some of the settings can be changed directly in the Image
to Produce field in the sublevel Additional outputs.
To remove a device, select the device in the Selected devices
field and press the Left arrow button.
Configuration parameter
Format Select between:
• Raw DICOM
• DICOM
• AVI
• JPEG
Image frames Select between:
• Single: stores single frame only
• Multiple: stores cineloop
• Secondary Capture: screen shot
Image compression Select compression mode from the pop-up menu.
Quality Set picture quality from 1 to 100%. A low picture quality
level allows high data compression, while a high picture
quality restrains the compression.
Capture Area Select between:
• Video Area (1)
• Whole Screen (2)
