Niro Soavi S.p.A

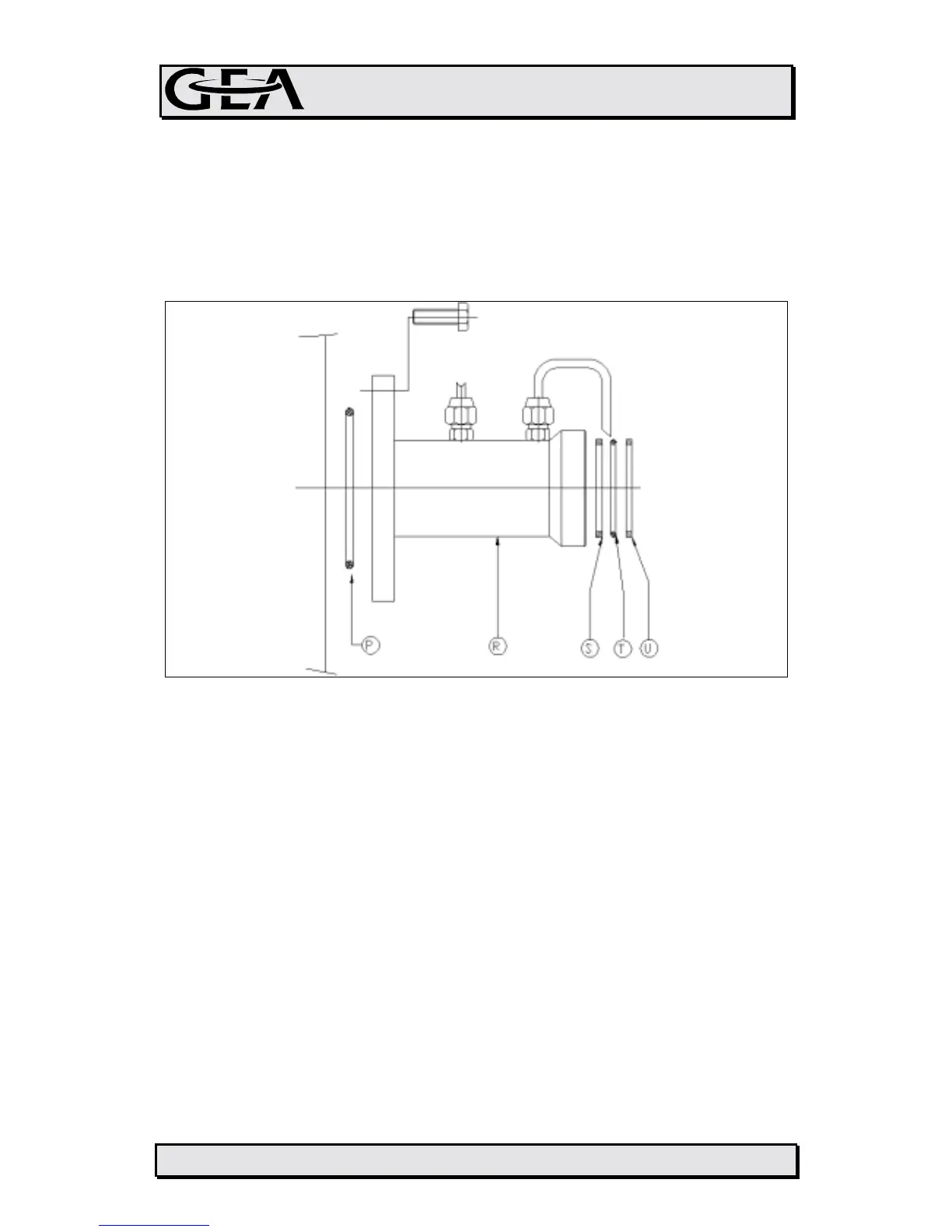

With reference to figure 4.11.2, the parts that need to be replaced are gaskets
(P) and (S) and any guide rings (T, U).
To remove the gaskets you need to disassemble the plungers and remove any
sealing elastic rings not shown in the drawing; refer to the exploded view in
SECTION 5 – SPARE PARTS CATALOGUE.
FIGURE 4.11.2
4c111e0c.doc 4.11.3
