GEA ARIETE - Dimensions; Terminal Arrangement;Internal Connections (Bottom View)

MY New model
MY New model
6

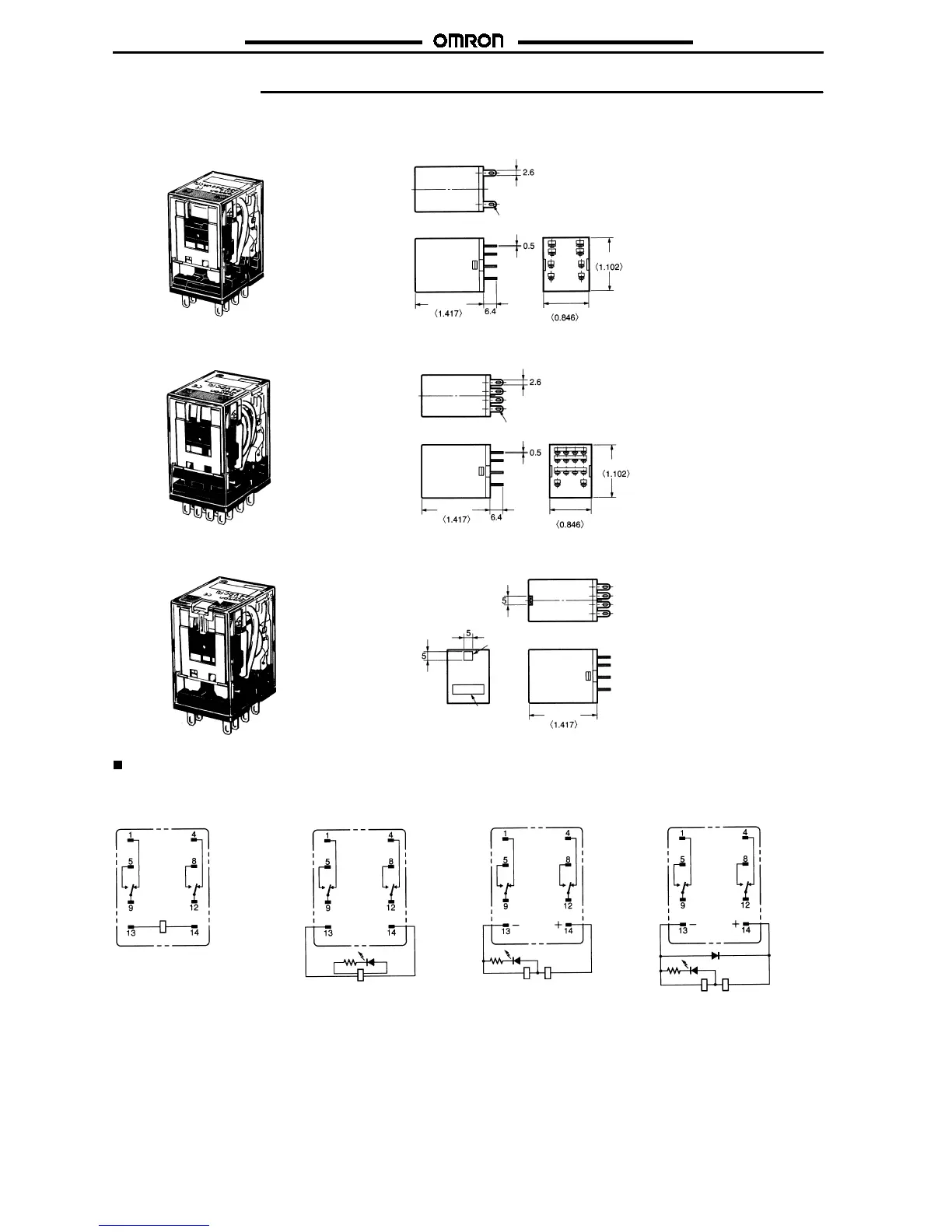

Dimensions
Note:
All units are in millimeters unless otherwise indicated.
2-Pole Models
1.2-dia. x 2.2 long holes
36 max.
28 max.
21.5 max.
4-Pole Models
1.2-dia. x 2.2 long holes
36 max.
21.5 max.
28 max.
Models with Test Button
36 max.
Test button
Nameplate
Terminal Arrangement/Internal Connections (Bottom View)
MY2 MY2N/MY2IN
(DC Models)
MY2N/MY2IN
(AC Models)
MY2N-D2/MY2IN-D2
(DC Models Only)
