VLT
®
5000 Series
423
423 U 1 voltage
(U1 VOLTAGE)
Value:
0.0 - U
VLT,MAX
Factory setting of par. 103
Function:
This parameter sets the Y-value of the 1st break
point.
Description of choice:
Set the voltage desired at the F1 frequency set in
parameter 424.

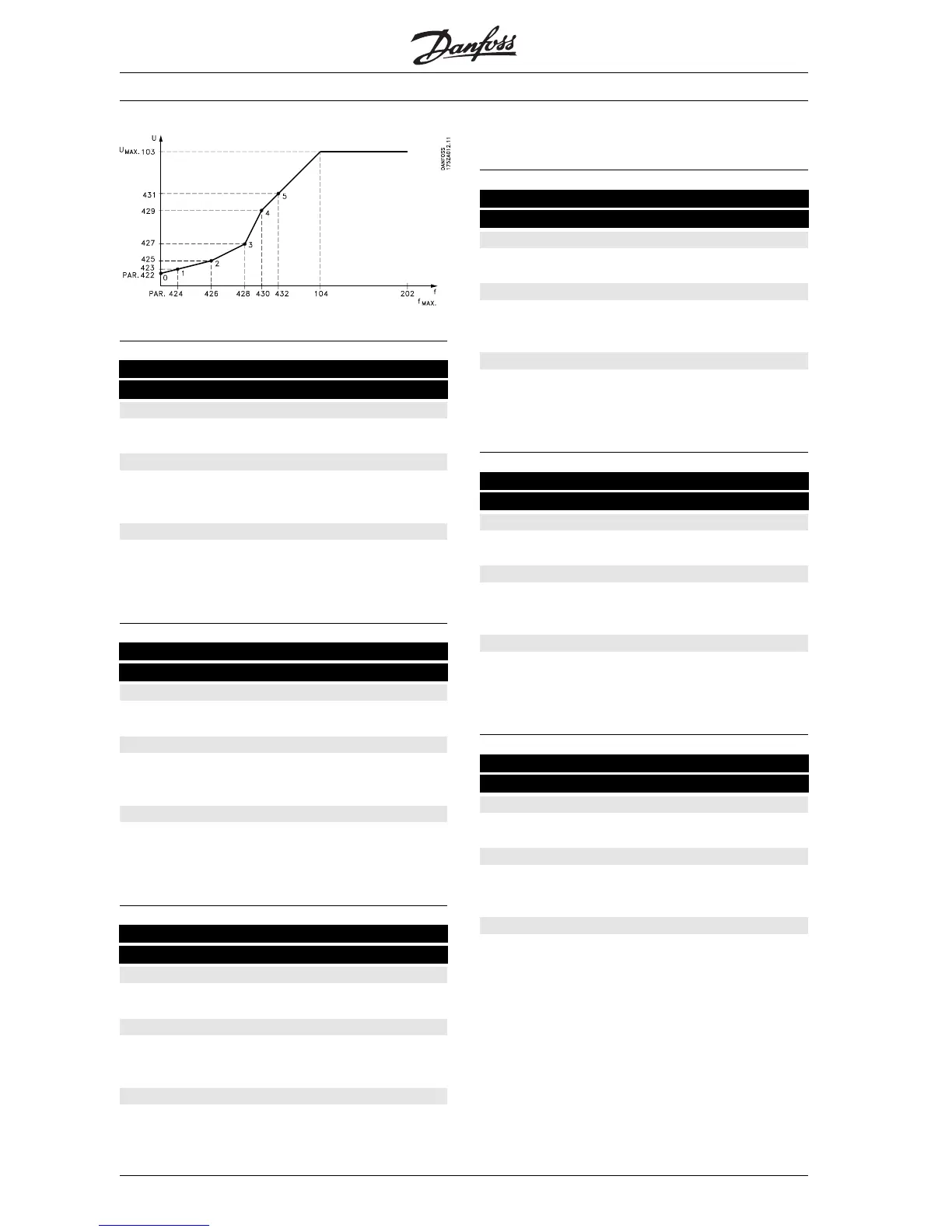

See drawing for parameter 422.
424
424 F 1 frequency
(F1 FREQUENCY)
Value:
0.0 - par. 426 Factory setting of par. 104
Function:
This parameter sets the X-value of the 1st break
point.
Description of choice:
Set the frequency desired at the U1 voltage set in
parameter 423.
See drawing for parameter 422.
425
425 U 2 voltage
(U2 VOLTAGE)
Value:
0.0 - U
VLT, MAX
Factory setting of par. 432
Function:
This parameter sets the Y-value of the 2nd break
point.
Description of choice:
Set the voltage desired at the F2 frequency set in
parameter 426.
See drawing for parameter 422.
426
426 F 2 frequency
(F2 FREQUENCY)
Value:
par. 424 - par. 428 Factory setting of par. 104
Function:
This parameter sets the X-value of the 2nd break
point.
Description of choice:
Set the frequency desired at the U2 voltage set in
parameter 425.
See drawing for parameter 422.
427
427 U 3 voltage
(U3 VOLTAGE)
Value:
0.0 - U
VLT,MAX
Factory setting of par. 103
Function:
This parameter sets the Y-value of the 3rd break
point.
Description of choice:
Set the voltage desired at the F3 frequency set in
parameter 428.
See drawing for parameter 422.
428
428 F 3 frequency
(F3 FREQUENCY)
Value:
par. 426 - par. 430 Factory setting of par. 104
Function:
This parameter sets the X-value of the 3rd break
point.
Description of choice:
Set the frequency desired at the U3 voltage set in
parameter 427.
✭
= factory setting. () = display text [] = value for use in communication via serial communication port
