H3YN
H3YN
6

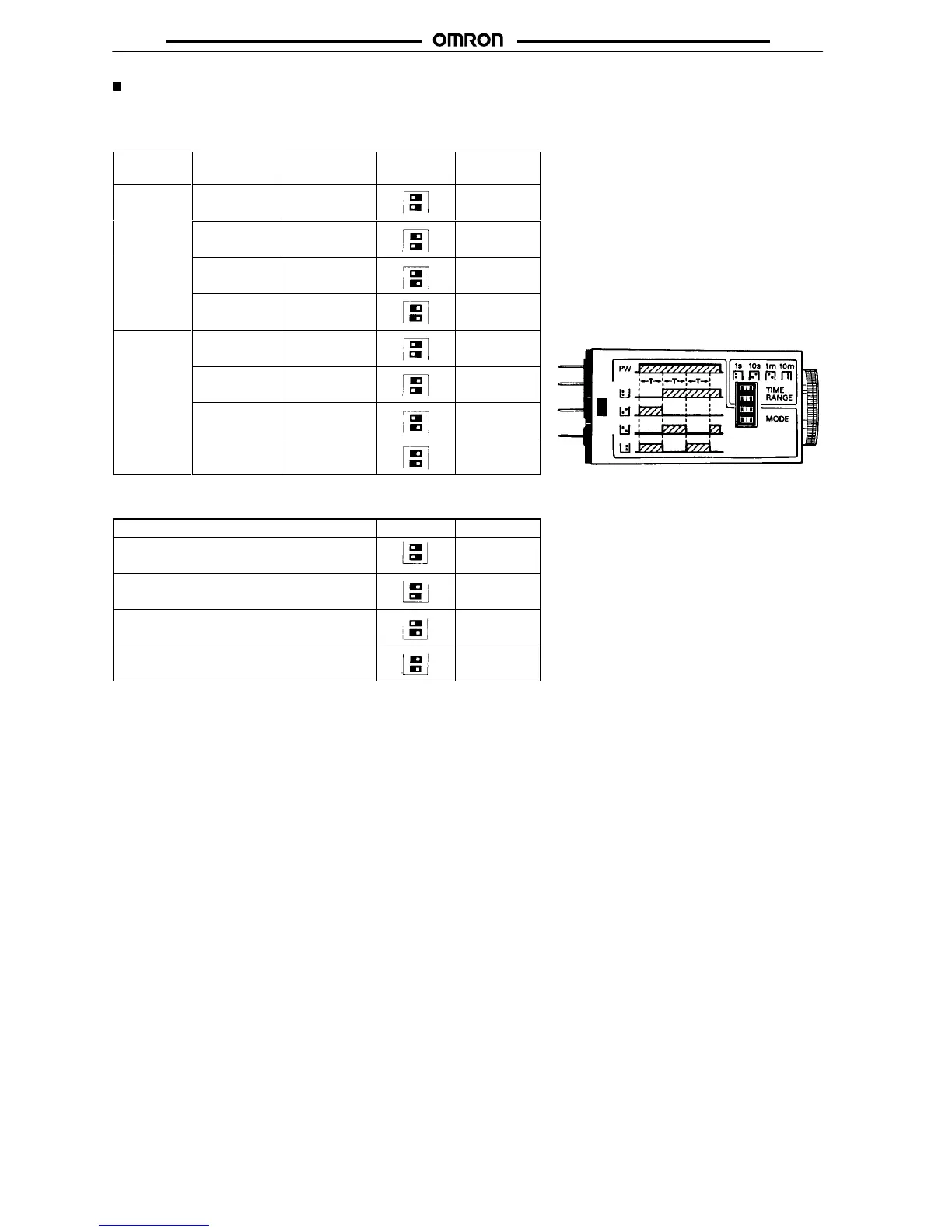

DIP Switch Settings
The 1-s range and ON-delay mode for H3YN-2/-4/-4-Z, the 1-min range and ON-delay mode for H3YN-21/-41/-41-Z are factory-set before
shipping.
Time Ranges
Model Time range T ime setting
range
Setting Factory-set
H3YN-2,
H3YN-4
H3YN
-
4
-
Z
1 s 0.1 to 1 s Yes
H3YN
-
4
-
Z
10 s 1 to 10 s No
1 min 0.1 to 1 min No
10 min 1 to 10 min No
H3YN-21,
H3YN-41
H3YN
-
41
-
Z
1 min 0.1 to 1 min Yes
H3YN
-
41
-
Z
10 min 1 to 10 min No
1 h 0.1 to 1 h No
10 h 1 to 10 h No
Note: The top two DIP switch pins are used to select the time ranges.
Operating Modes
Operating mode Setting Factory-set
ON-delay Yes
Interval No
Flicker OFF-start No
Flicker ON-start No
Note: The bottom two DIP switch pins are used to select the operating mode.
