CAUTION: During assembly make sure that the plunger and clamp are
fixed in the correct position, and that the various clamps do not interfere
with one another during alternating plunger movements. We therefore
suggest that you rotate the drive pulley by hand to verify that plunger
movement is correct.
CAUTION: tighten the nuts DIAGONALLY, as shown in figure 4.4.2; apply
the torque values given in table 4.3.1.

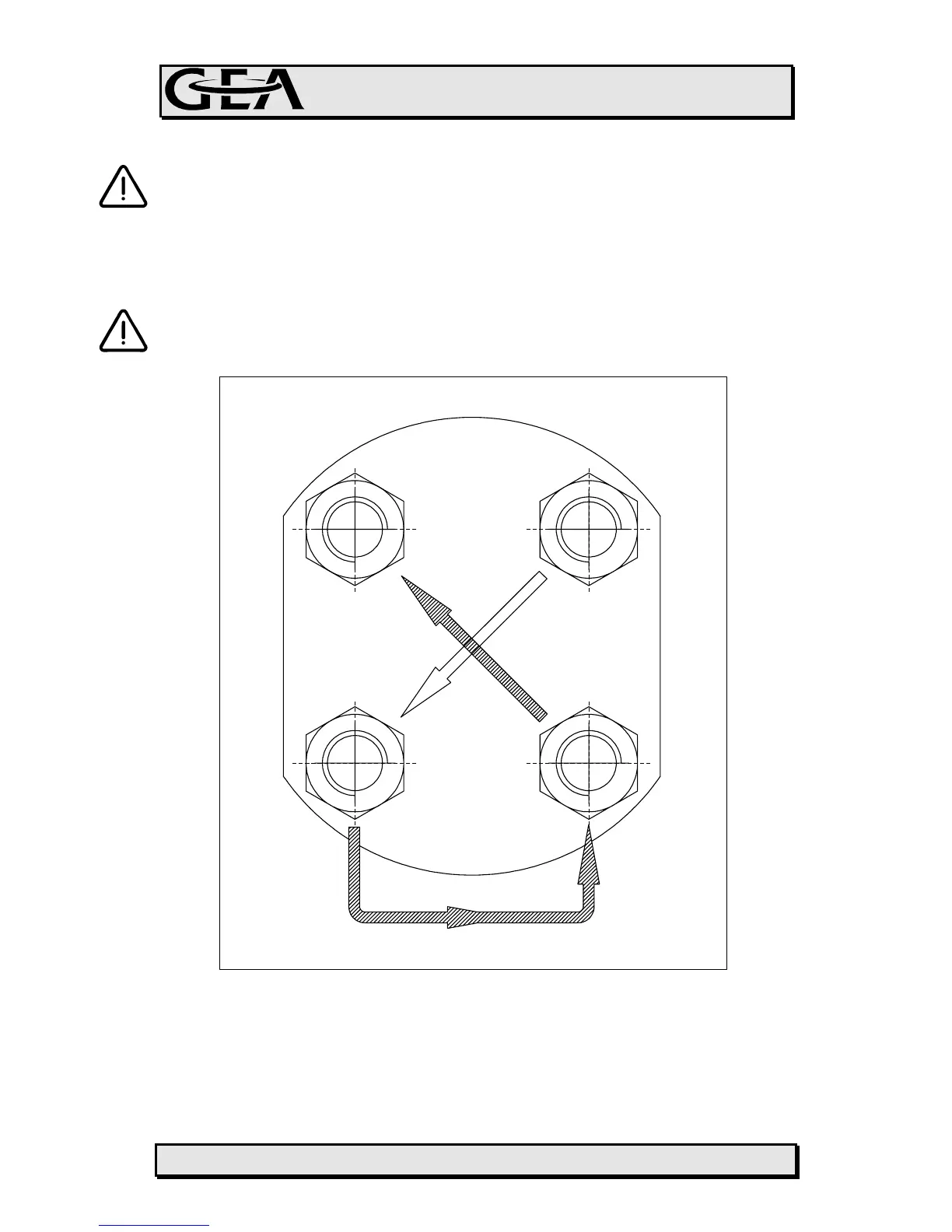

FIGURE 4.4.2
