6 Sabre Owner’s Guide
Electrical cabinet
WARNING: Do not open the electrical cabinet. Dangerous voltages exist in the
interior.

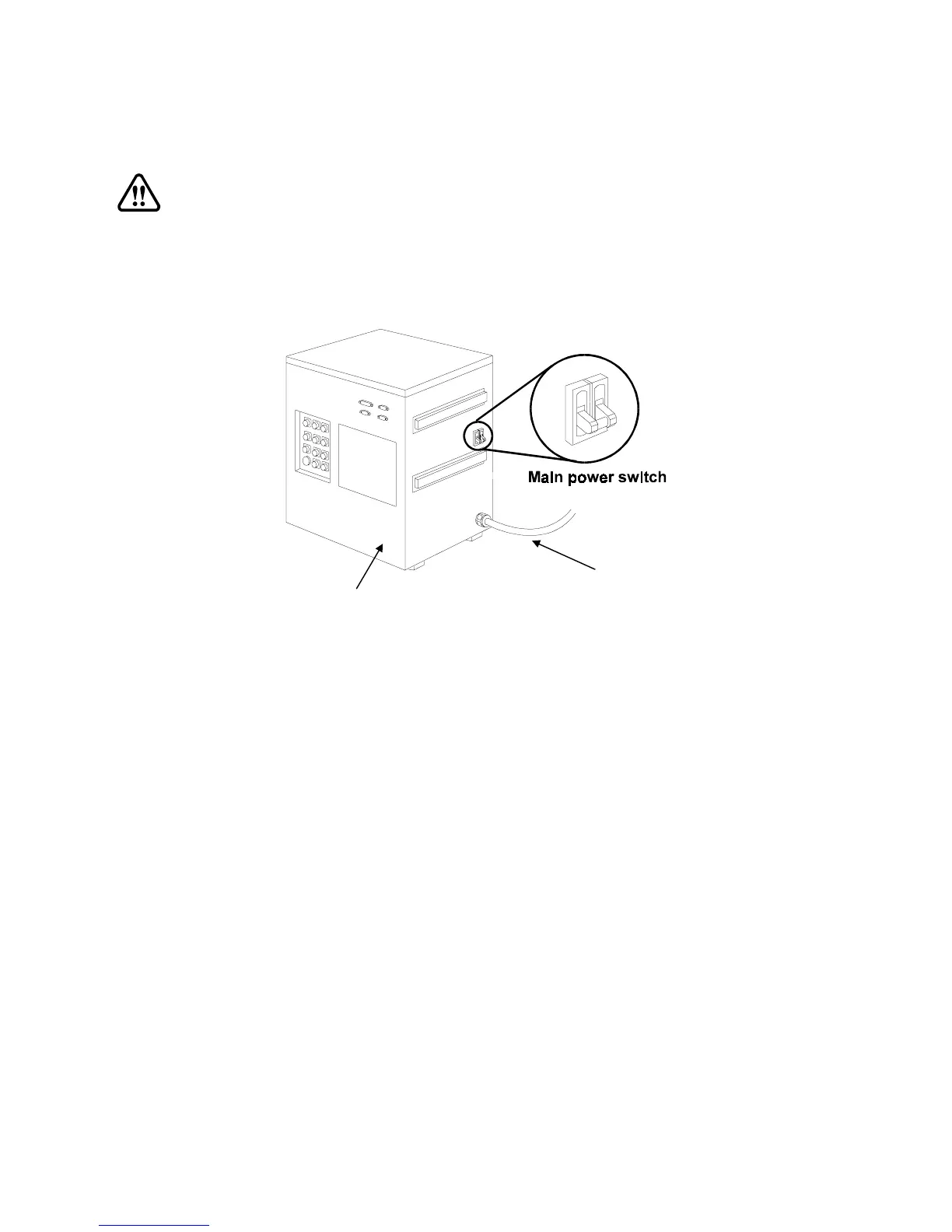

The electrical cabinet distributes power to the Sabre and some of its related devices. It is
designed to stand on the floor behind or to the right of the router. This location helps protect the
cabinet from coolant and debris.
The main ON/OFF power switch is located on the side of the cabinet.
The electrical cabinet also has a switched outlet (115 VAC, 15 amp for domestic units, and 220
VAC, 20 amp for export units) to supply power to the chip removal system vacuum.
The front of the electrical cabinet contains a window for viewing eight LED status indicators.
You may use these indicators to assist in troubleshooting under the direction of a Gerber service
representative.
