26 Sabre Owner’s Guide

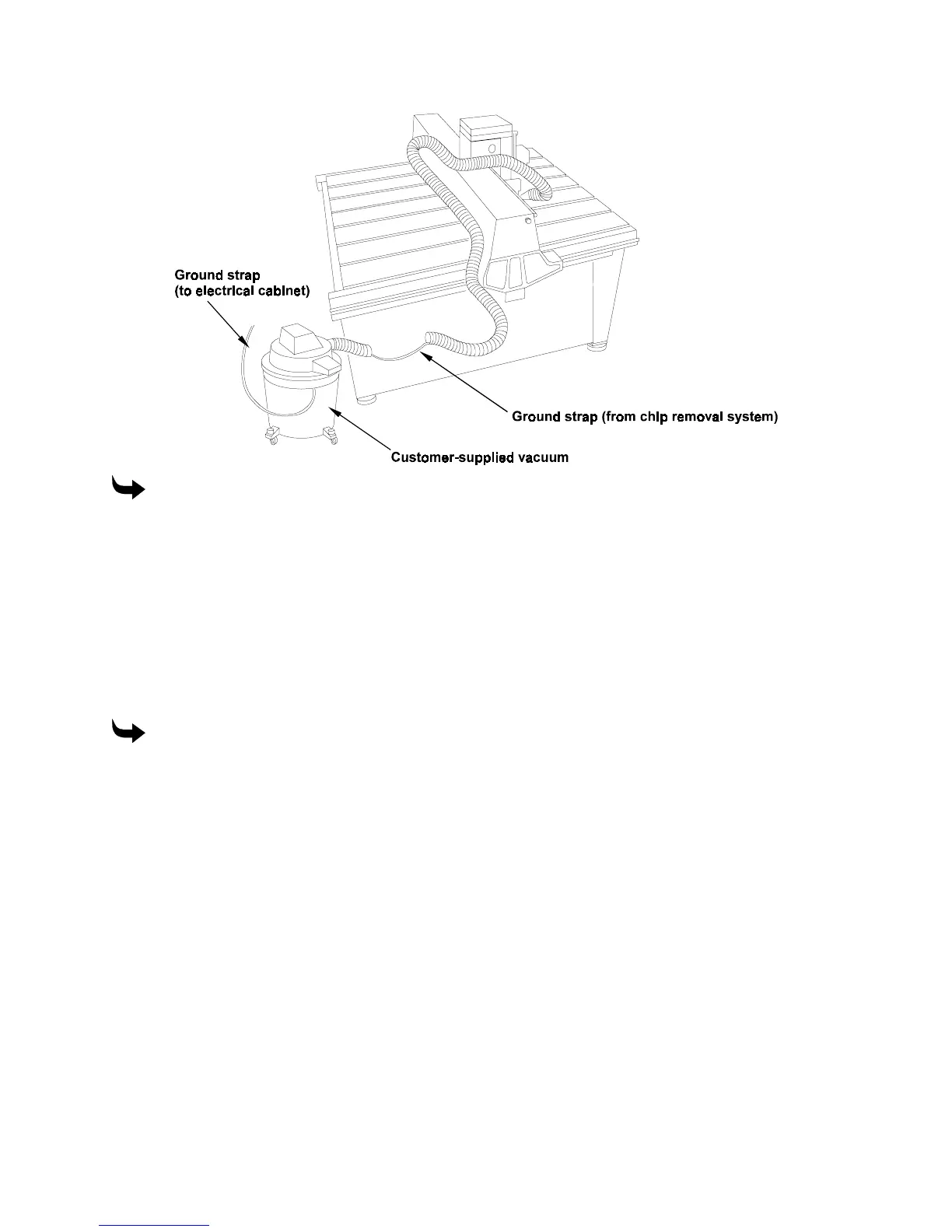

To use the chip removal system
1
Plug the vacuum into the labeled electrical cabinet outlet.
2
Loosen the locking handles and lower the vacuum shroud to the material.
3
Press the shroud firmly against the material surface.
4
Tighten the locking handles. The vacuum starts automatically when the job starts.
Removing the pressure foot assembly
You need to remove the pressure foot and the chip removal vacuum to change motors.
To remove the pressure foot and vacuum shroud
1
Remove the vacuum hose from the vacuum shroud.
2
Raise the Z axis if necessary so that it clears the pressure foot.
3
Unplug the router motor.
4
Remove the two bolts and washers on each side of the motor that secure the side plates
to the motor carriage.
