Getting to Know the Sabre 7
Emergency power shutoff switches

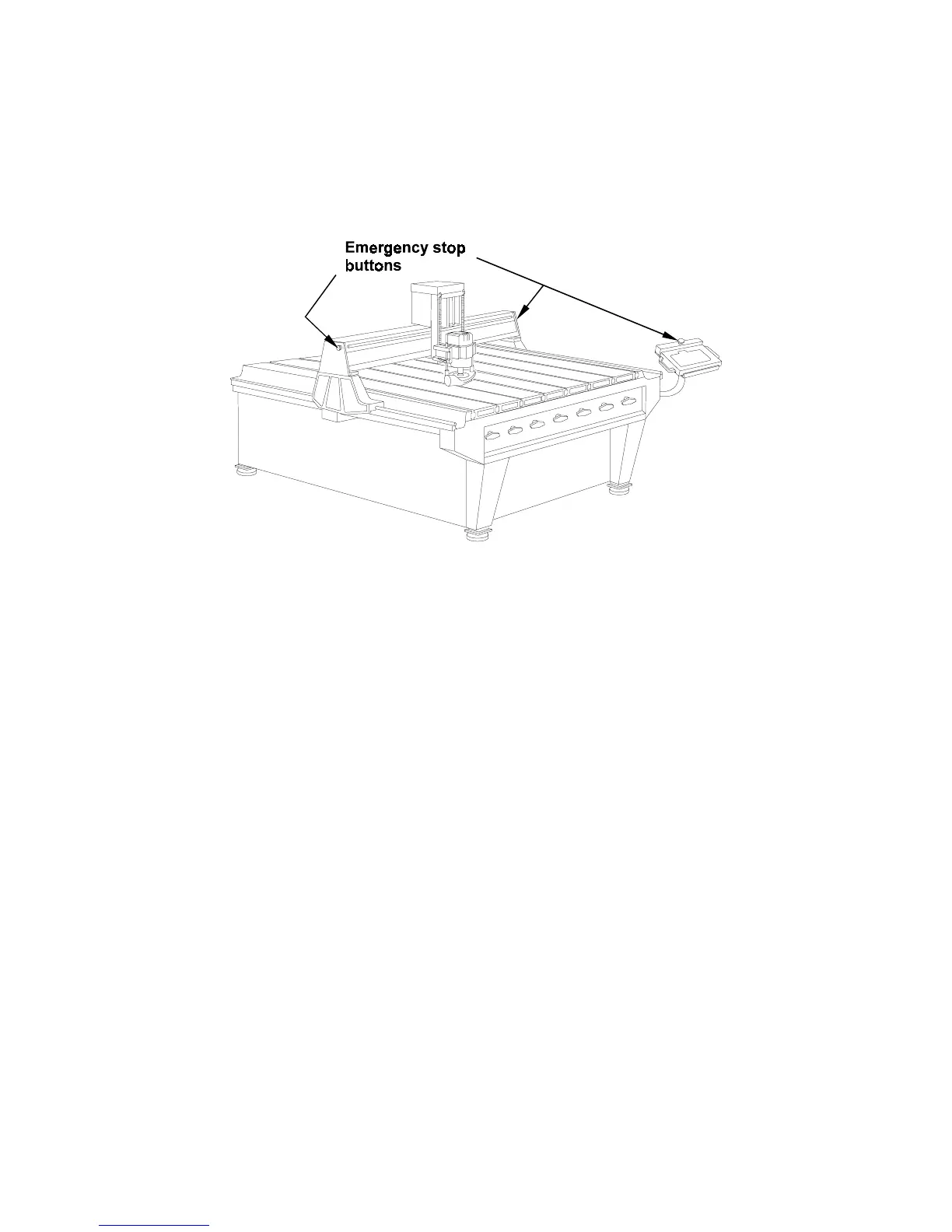

The Sabre is equipped with three emergency power shutoff switches, located as shown below.
When you press one of these switches, you trip the main power breaker, removing all power to
the system. These switches should be used only in an emergency when it is necessary to stop
system operation immediately, not to pause a job.
Control pad
The control pad lets you operate the Sabre by making menu selections to:
♦
set up a job
♦
manually move the tool to a desired location
♦
start, stop, or pause a job
♦
change the speed or feed rate
The control pad rests on a bracket convenient to the work surface, but may also be hand held. It
provides a message display, menu selection keys to make menu selections, move (arrow) keys
to move the router motor, and several control keys. The message display shows menus and
messages.
