Installing and replacing a pen tool

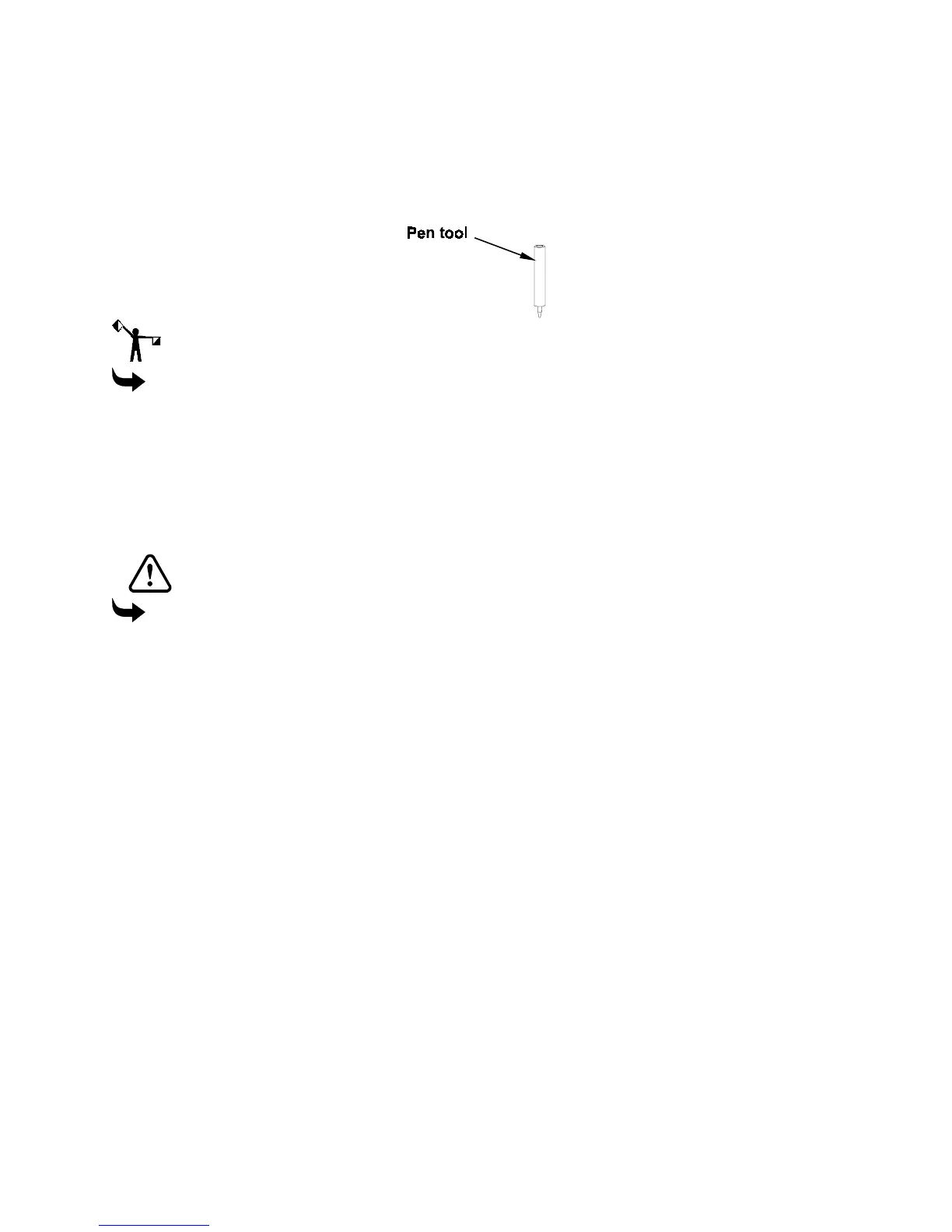

The pen tool allows you to plot a job on paper. The tool kit contains one pen tool which requires
the .500" (13 mm) collet.
Note: Use the .500" collet with the pen tool.
Installing a pen tool
1
Slew the router motor near the front of the table.
2
Remove the cutting tool and collet nut, if necessary.
3
Insert the .500" (13 mm) collet into the collet nut, then insert the pen tool in the collet.
4
Insert collet, nut, and pen assembly into the router motor shaft.
5
Tighten only until the pen is secure.
CAUTION: Over tightening may damage the pen assembly.
To replacing a pen in the pen tool
1
Unscrew the top of the pen tool assembly.
2
Remove the spring.
3
Remove the pen.
4
Insert the replacement pen into the pen barrel.
5
Replace the spring and top of the pen tool assembly.
