The lead screws are located along the width of the router motor carriage below the ways, on the
Z axis, and beneath the center front of the router.
Use a soft, clean brush to remove debris from the lead screws.
Electrical cabinet air filter cleaning
To clean the electrical air filter
1
Snap off the cover of the air filter from the side of the electrical cabinet.
2
Remove the air filter from the cover.
3
Vacuum the filter thoroughly to remove dust and debris.
4
Replace the filter in the cover.
5
Reinstall the cover on the electrical cabinet.
Weekly maintenance
Weekly maintenance consists of cleaning and lubricating the Z ways.
Z axis lubrication

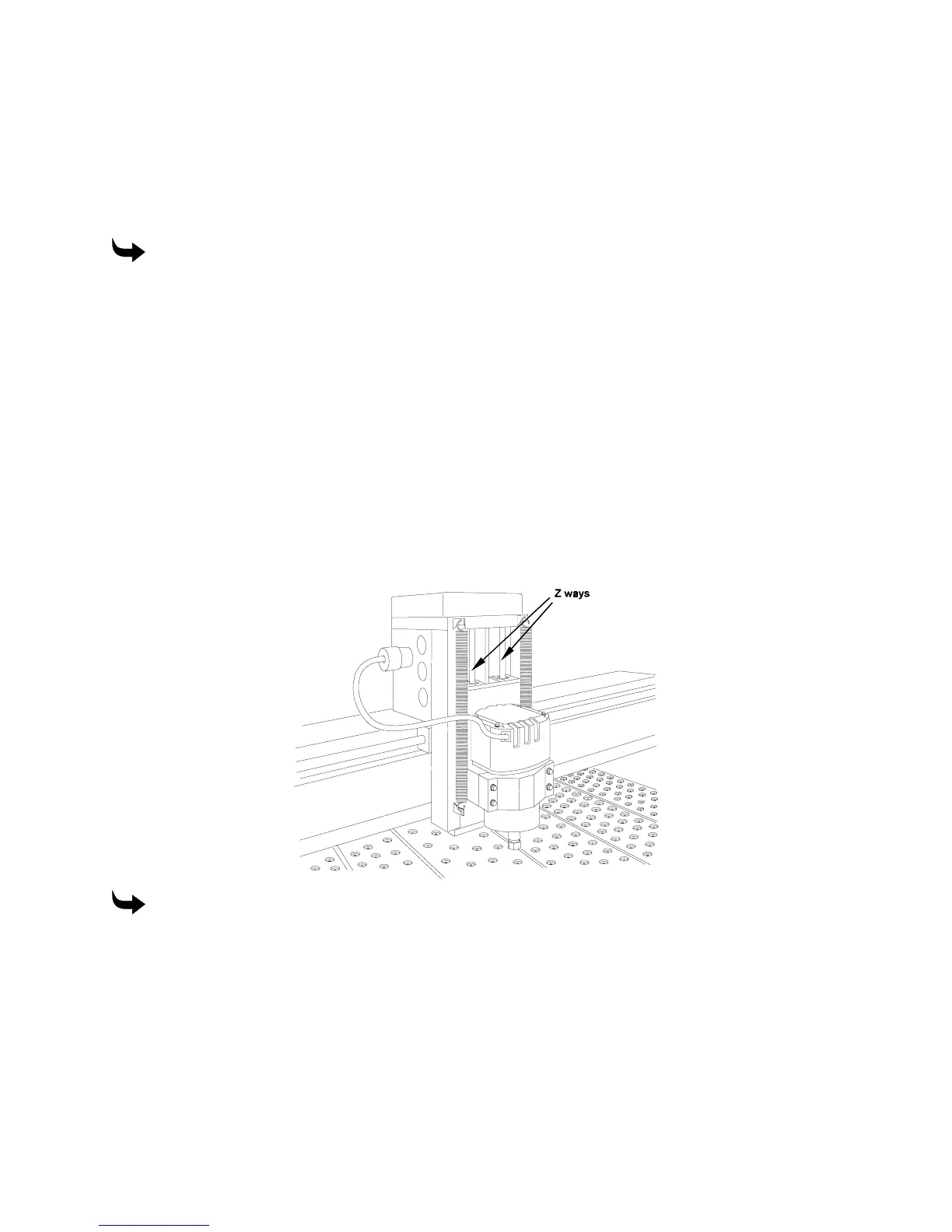

The Z axis ways are located on either side of the router motor.
To lubricate the Z axis
1
If the motor contains a tool, remove it.
2
Power up.
3
Press the Z axis down arrow keys on the control pad to lower the router motor to its
lowest position.
4
Clean the upper part of the Z axis ways with a lint-free cloth.
5
Lightly oil the way with light machine oil.
