Using the camera
4
Maquet PowerLED II
IFU 01811 EN 10
79 / 116
11
12
13
14
15
16

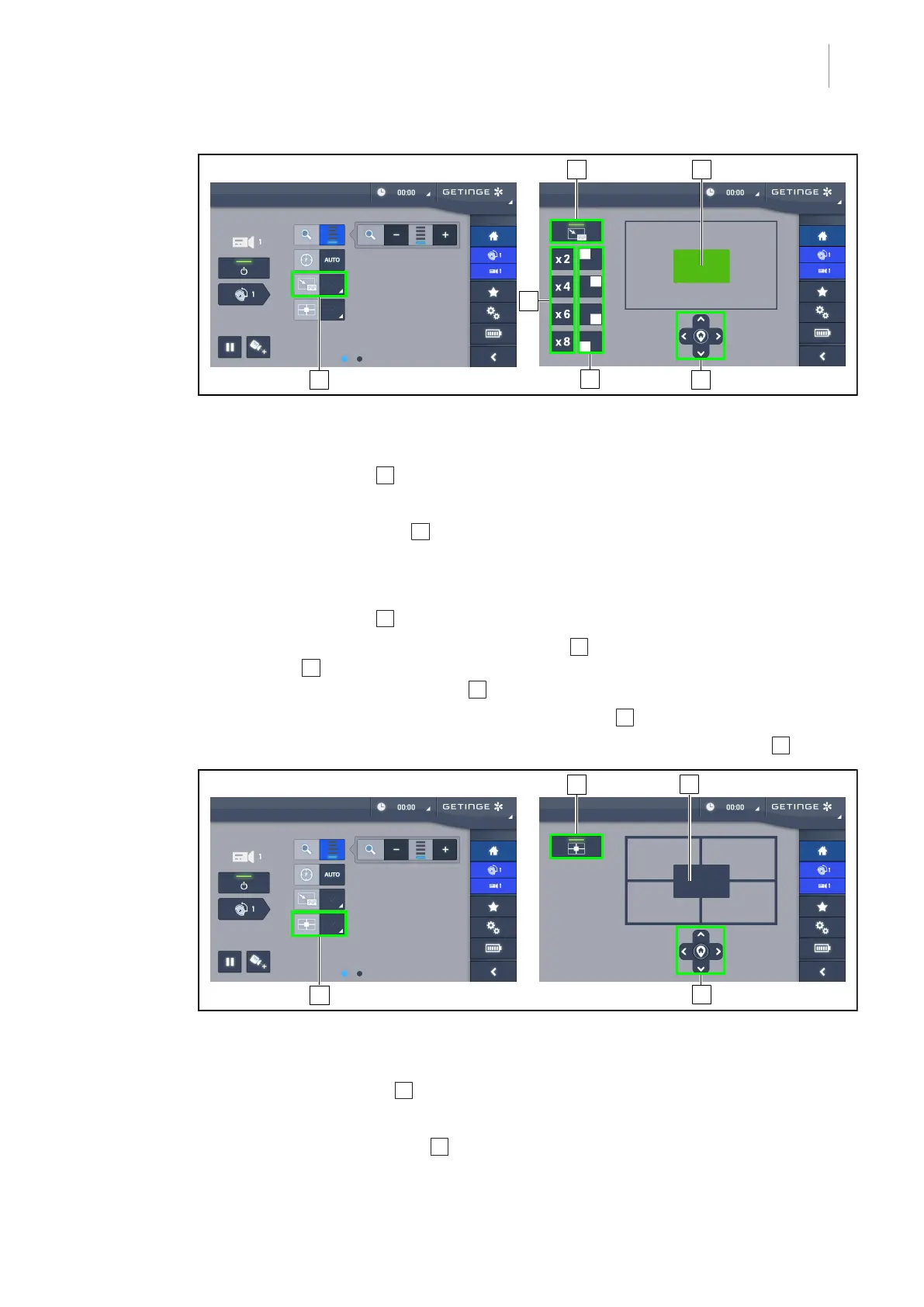

Fig.97: Using the Picture-in-Picture
Enabling/disabling the Picture-in-Picture function
1. Press the PiP button 11 to enable the Picture-in-Picture function.
Ø The function settings page is displayed.
2. Press the PiP OFF button 12 to disable the Picture-in-Picture function.
Ø The function is disabled.
Using the Picture-in-Picture function
1. Press the PiP button 11 to access the function settings page.
2. Define the area to display using the green keypad 16 then refine if necessary using the direc-
tional keys 15. You can return to the centre of the image at any time by pressing the symbol
in the centre of the directional keys 15.
3. Set one of the zoom values to apply to the selected area 13.
4. Define the corner of the screen in which the wide field image will be transmitted 14.
16
17
18
19
Fig.98: Using the E-Pan Tilt
Enabling/disabling the E-Pan Tilt function
1. Press the E-Pan button 16 to enable the E-Pan Tilt function.
Ø The function settings page is displayed.
2. Press the E-Pan OFF button 17 to disable the E-Pan Tilt function.
Ø The function is disabled.
